Repair 121
1208531 | 03.07.2012

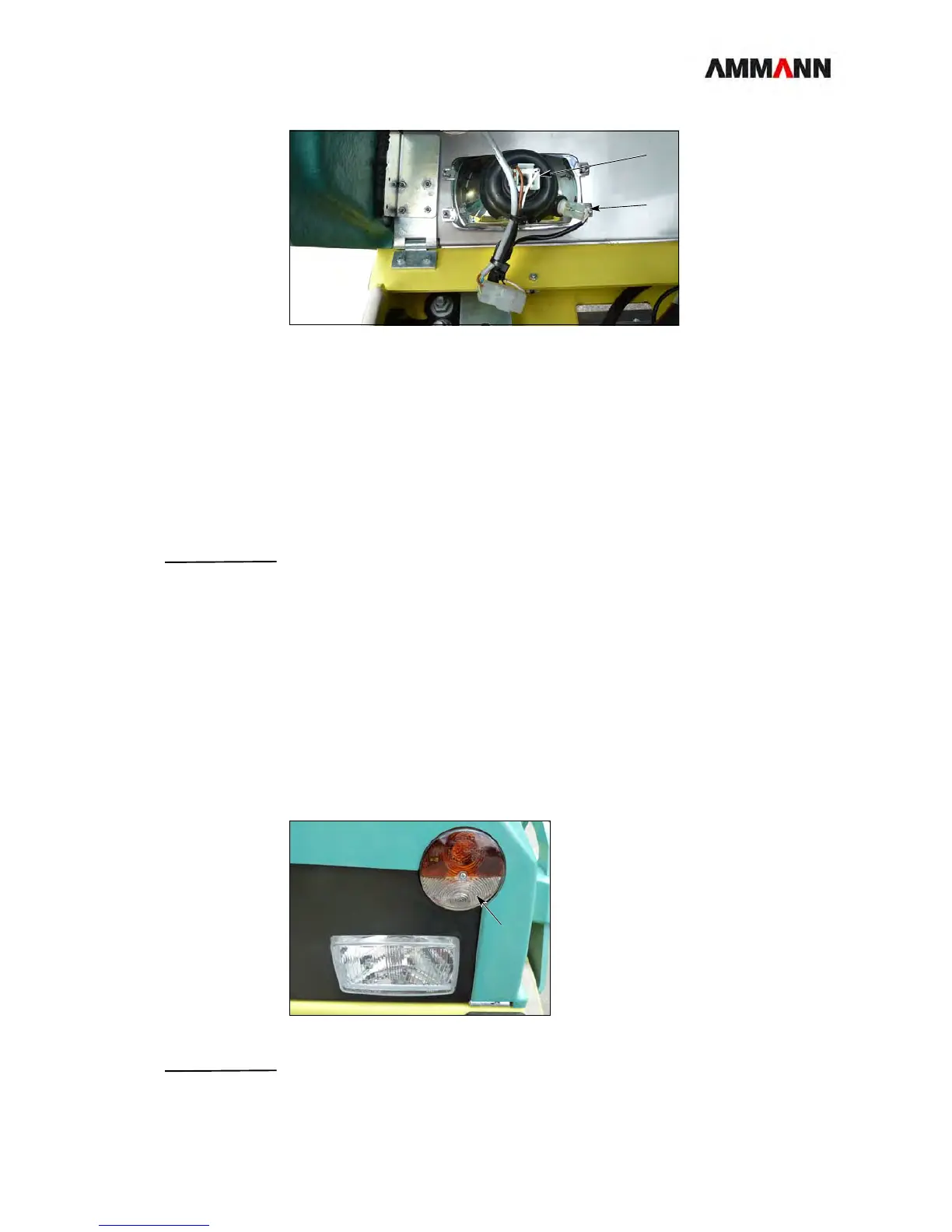

Fig. 10-6 Dipped lights and parking lights:
Dipped light 1 Remove the plug from the rear of the lamp unit.
2 Remove the guard.
3 Press on the end of the securing clip to remove it.
4 Replace the defective bulb with a new one of the same type and power.
5 Put the guard back on the casing.
NOTE The guard must sit firmly on the glass body of the low beam headlight unit in
order to prevent water from entering.
Parking light 1 Pull the bulb out of the lamp holder.
2 Replace the defective bulb with a new one of the same type and power.
Position light 1 Remove the lamp housing of the position light (1).
1.1 To do so, undo the screw in the center of the housing.
2 Replace the defective bulb with a new one of the same type and power.
Fig. 10-7 Position light
NOTE Do not touch the glass of the new bulb with your fingers. Sweat on your hands
can burn into the glass and reduce bulb lifetime.
