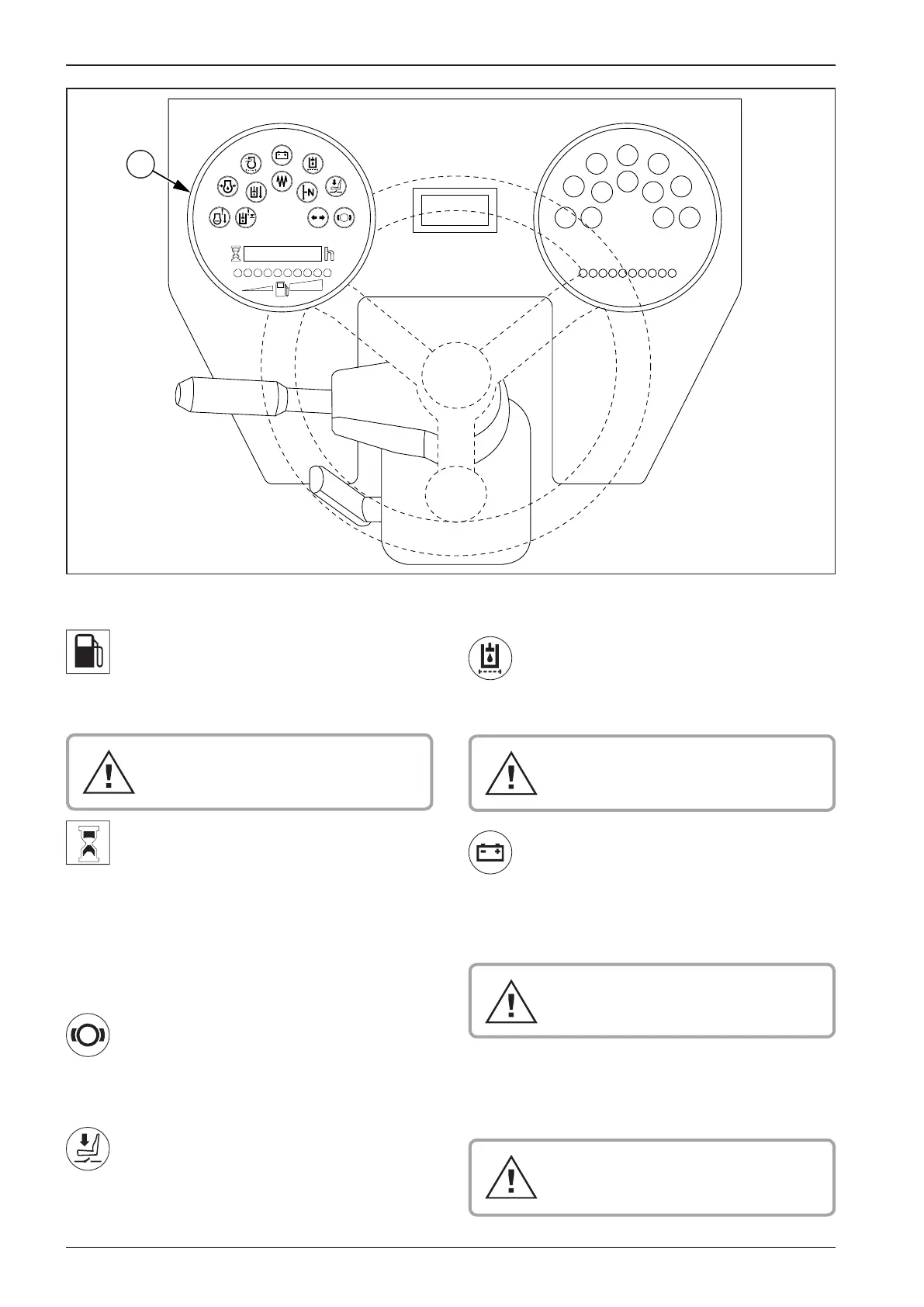

2.6. Machine basic functions control
LH cluster (25)
Fuel consumption gauge
It signals current fuel level in the tank, when emptied to min the
red LED will icker.
Counter of motohours actually worked
It will display the number of motohours the engine was running.
With the engine started the counter will begin counting the mo-
tohours.
Note
Counting the number of motohours does not depend on en-
gine rpm.
Parking brake indicator lamp
The indicator lamp ON will signal the parking brake has been
enabled.
Seat switch indicator lamp
Indicator lamp will light ON when operator is not sitting on the
seat or when emergency brake has been enabled.
Indicator lamp for hydraulic oil pressure lter
fouled
Indicator lamp ON signals lter element is fouled.
Immediately replace the lter element!
Battery recharging indicator lamp
Unless indicator lamp goes OFF, nd a
defect!
Indicator lamp lighted ON during engine run will signal a de-
fect. Following 5 seconds the acoustic alarm will start, and after
2 minutes the engine will stall automatically – the Machine will
stop and parking brake will be enabled.
Check fuel level during Machine
operation.
Engine can be started once its defect has
been repaired!
It signals proper function of battery recharging. When switching
the key on the ignition box (12) over to “I” position the indicator
lamp shall go ON and following the start it must go OFF.
