Ammann AV 70 X - Page 57

51AV 70 X
OPERATION MANUAL

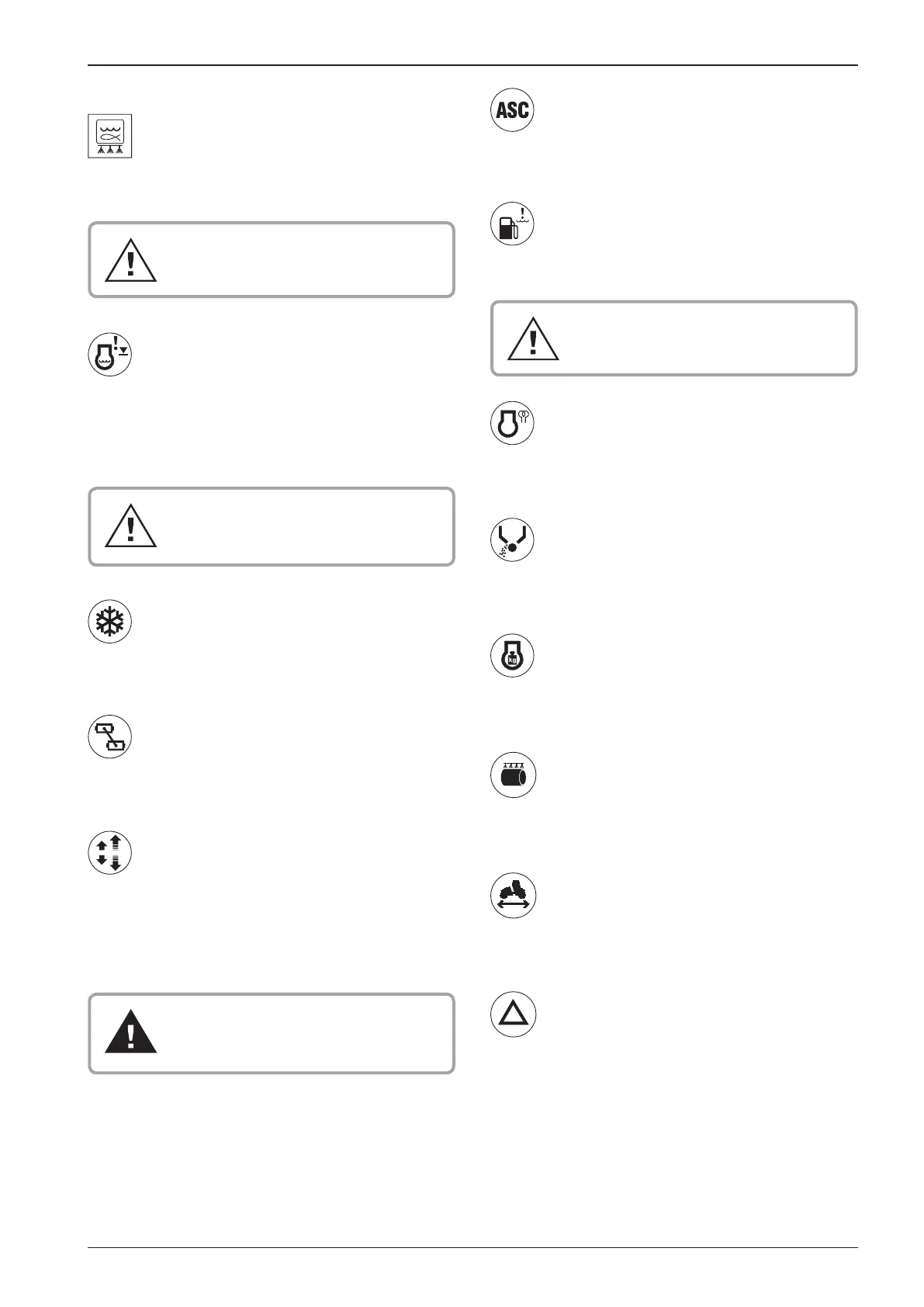

RH Cluster (26)
Level height in sprinkling tank.
AMN27
It signals the actual level of water in the tank, and when emptied
to min the red LED will start to ash.
Cooling liquid indicator lamp
Indicator lamp lighted ON during engine run will signal a de-
fect. Following 5 seconds the acoustic alarm will start, and after
2 minutes the engine will stall automatically – the Machine will
stop and parking brake will be enabled.
Engine can only be started when failure
is repaired and cooling liquid relled to a
limit specied!
Air conditioner indicator lamp
Indicator lamp signals air conditioner is ON (optional).
AMN14
CRAB mode indicator lamp
Indicator lamp signals the front run is set to CRAB mode.
AMN15
Indicator lamp for soft starting to move and stop-
ping to move
Indicator lamp ON signals the mode of soft starting to move and
stopping to move is ON.
Intermittent ashing of this indicator lamp signals an error code
for a defect within Machine travel system.
Shut down the Machine and call service
organization in respect of failure repair
on the Machine travel system!!!
AMN16
ASC indicator lamp
AMN17
Not connected.
Fuel lter indicator lamp
AMN18
Indicator lamp lighted ON signals water presence in fuel lter.
Engine glowing indicator lamp
AMN19
The lighted control lamp signals the engine heating.
Spreader indicator lamp
AMN20
This indicator lamp signals the spreader is ON (optional).
Indicator lamp to protect against engine over-
load (ANTISTALL)
AMN21
This indicator lamp signals the ANTISTALL is ON.
Sprinkling pump indicator lamp
AMN22
Indicator lamp signals sprinkling pump is ON.
Constant speed indicator lamp
This indicator lamp signals the constant speed mode is ON.
AMN23
Alarm lights indicator lamp
AMN24
This indicator lamp signals alarm lights are ON.
AMN13
Check water level in the tank during
Machine run.
If this indicator is ON, please clean the
fuel lter!
