2.6. Machine basic functions control

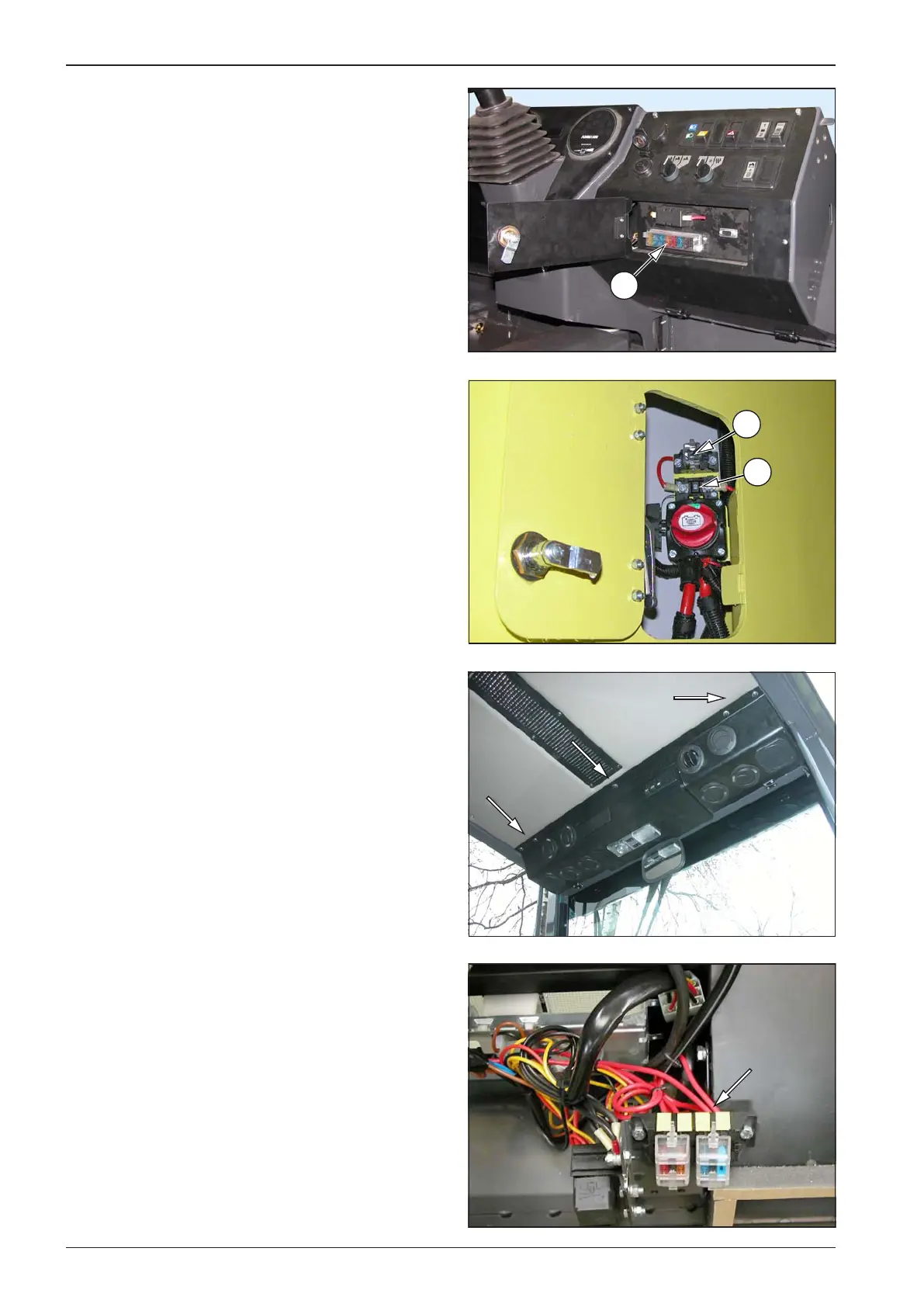

Cut-out box (27)
It contains F1 - F8 fuses.
F1 - 20 A front, rear headlamps
F2 - 15 A roof lights, light switches
F3 - 15 (30)A trac-indicator lights, horn, beacon, extra lights,
mounting socket
F4 - 5 A clusters
F5 - 10 A travel electronics, backing horn
F6 - 15 A sprinkling
F7 - 7,5 A vibrations, CRAB (trimmer)
F8 reserve
Other fuses located on the Machine
At battery disconnector
F9 radio (as per car radio manufacturer)
F10 - 80A Dashboard fuse
Under the cabin lighting cover
F11 - 15 A wipers + window washers
F12 - 15 A fans
F13 - 5 A fan control + air conditioner control
F14 - 10 A air conditioner
