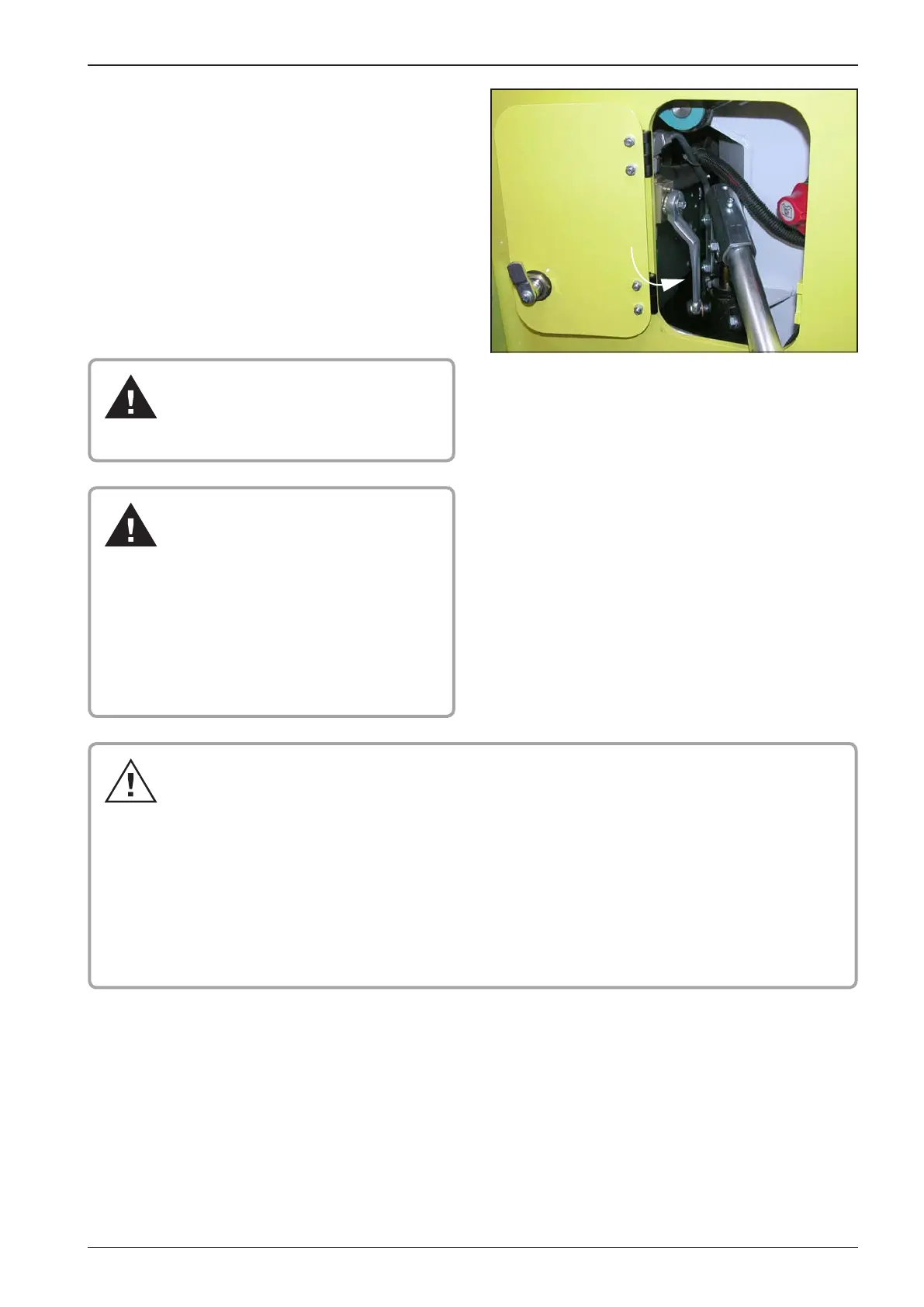

How to brake the Machine:
Turn the bonnet raising lever to the vertical position, the ma-
chine will brake to a stop.
Put the hose (1) and (3) to its original condition.
Unscrew two multi-purpose relieve valves by three threads in
CW direction (hexagon 22 mm).
Turn the bonnet raising lever to the horizontal position.
Start pumping to lift the bonnet, secure the strut.
Turn the bonnet raising lever to the vertical position, the bonnet
will start to drop.
Conrm safe touch-down of the bonnet.
Remove control lever (40) and put it back in the Machine cabin.
Note
These are general requirements for safe towing of a damaged
machine under normal conditions. Please consult with your
dealer any and all dierent situations that may occur while tow-
ing the Machine.
When operating the machine under nor-
mal conditions when the hose with the
quick coupling (3) is not connected at
the point (2), the function of “Emergency
Hydraulic Machine Brake Releasing”, the
hose with quick coupling (1) must always
be connected at the point (2)!!!
No persons may be on the towed roller
with a non-functional engine.
After towing the roller away, restore the
roller into original condition!
Make sure that nobody is endangered by
the bonnet lowering!
Do not leave your limbs in the area of the
bonnet lowering!
For towing purposes, use only intact tow-ropes or towing-bars with a sucient capacity 1.5 times high-
er than the towed machine weight. It is banned to use chains for towing the machine!
It is necessary to keep the minimum departure from the direct towing angle. The maximum departure
is possible at an angle of 30°.
When towing, it is necessary to ensure the continuous movement. Do not exceed a towing speed of
more than 2 km/hour (1.2 mph). Do not tow the machine for a longer distance than 300 m (0.19 mi).
The size of the towing machine should correspond to the size of the towed machine. It must have a suf-
cient traction force (power), weight, and brake eect.
Do not start the engine when towing.
When towing downhill using a rope, another towing machine must be connected to the rear part of the
damaged machine. Thus it is possible to prevent an uncontrolled movement of the damaged machine.
