AMX NXD-500i

Setup Pages and Descriptions
47
NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom
Supported sampling rates for WAV
The following is a listing of supported sampling rates associated for WAV files played on a NXD-500i panel. Some WAV
files currently played on other Modero panels may not work on a NXD-500i. The supported sampling rates for WAV
files are:
Protected Setup Navigation Buttons

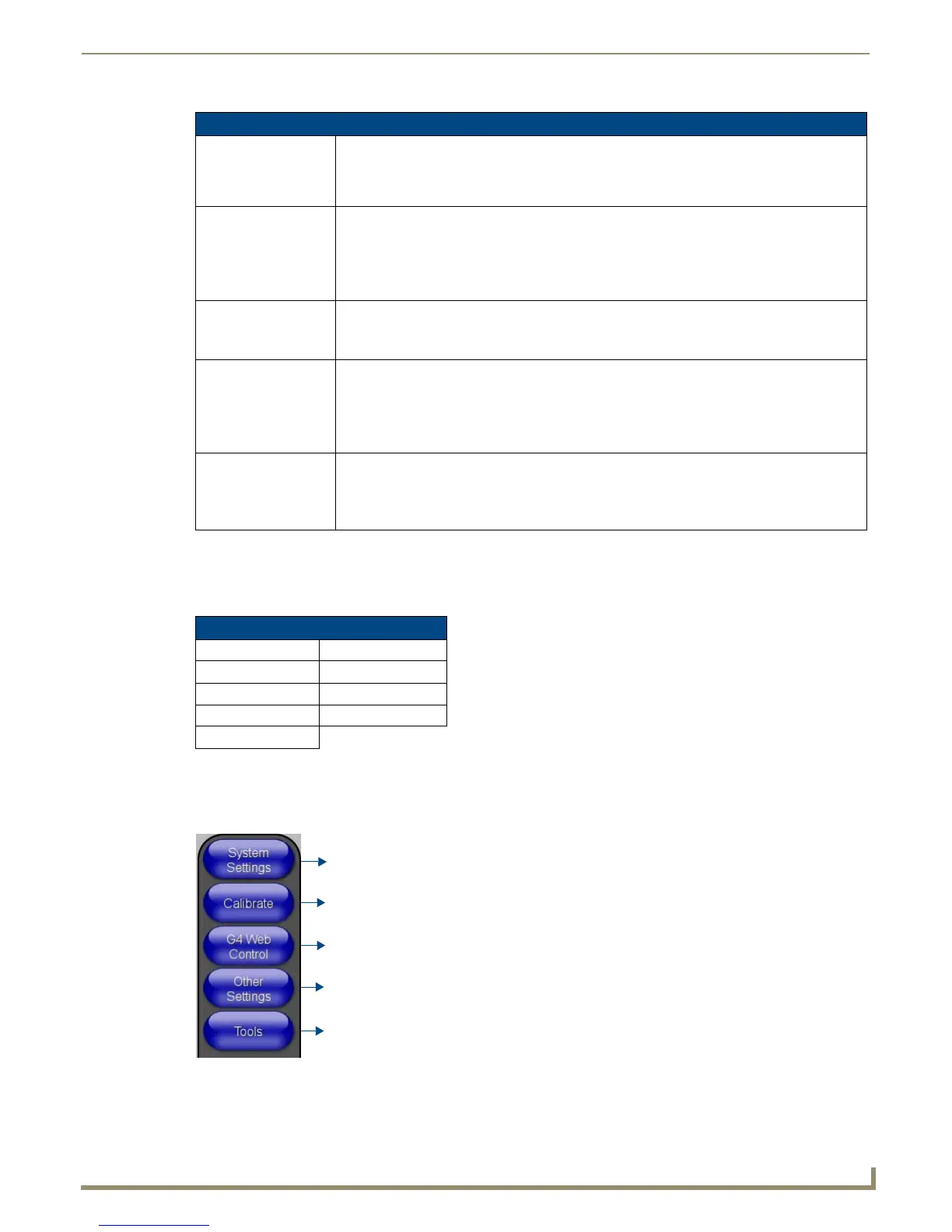

The Protected Setup navigation buttons (FIG. 45) appear on the left of the panel screen when the Protected Setup page
is currently active.
Audio Settings Page (Cont.)
Connection Status icon: This visual display of the connection status allows the user to have a current visual update of
the panel’s connection status, regardless of what page is currently active.
• A Lock only appears on the icon if the panel has established a connection with a currently
secured target Master, requiring a username and password.
Default Panel Sounds: Sets the panel to play various sounds.
• Activating the Button Hit button plays a default sound when touching an active button.
• Activating the Button Miss button plays a default sound when touching a non-active button
or any area outside of the active button.
• The Play Test Sound button plays a test WAV/MP3 file over the panel’s internal speakers.
Intercom Mic Level: Allows adjustment of the current Microphone volume level being received from the intercom.
• Use the UP/DN buttons to adjust the Microphone volume level (range = 0 - 100).
• The Mic Out Level bargraph indicates the current Mic Out level.
Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker:
• Use the UP/DN buttons to adjust the volume output on the internal speakers (range = 0 -
100).
• The Internal Sound Level bargraph indicates the current sound level.
• The Mute button mutes the volume.
Intercom Volume: This section allows alteration of the current intercom volume level:
• Use the UP/DN buttons to adjust the volume level (range = 0 - 100).
• The Master Volume bargraph indicates the current volume level.
• The Mute button toggles the Mute feature.
Supported WAV Sampling Rates
• 48000 Hz • 16000 Hz
• 44100 Hz • 12000 Hz
• 32000 Hz • 11025 Hz
• 24000 Hz • 8000 Hz
• 22050 Hz
FIG. 45
Protected Setup Navigation Buttons
Press to access the System Settings page to configure
communication settings for the NetLinx Master and the panel.
Press to access the G4 Web Control page to enable or disable remote
Press to access the Tools menu and select either Panel Logs, Panel Statistics,
Press to access the Calibrate page to calibrate the panel.
display and control of the panel via a web-enabled PC running a VNC client.
or Connection Utility.
Press to access the Other Settings menu and select either Cache,
Passwords, Sensor, or SIP.
