Setup Pages and Descriptions
62
NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom
Checking the Panel Connection Logs
1.
From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Logs button. All connection data is contained in the section Connection
Logs.
Refreshing the Panel Connections Log
1.
From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Logs button.
3. Push the Refresh button.
Clearing the Panel Connections Log
1.
From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Logs button.
3. Push the Clear button and confirm your selection.
Panel Statistics Page
The options on the Panel Statistics page allow you to track the connection status for the panel. The Panel Statistics page
tracks ICSP messages, Blink messages, and Ethernet connection statistics (FIG. 61).
Features on this page are as follows:
Panel Connection Page (Cont.)
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state of the panel to
the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark green every 5
seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain yellow for 3
missed blink messages and then turn red. It will return to green when a blink message is
received.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
Connection Logs: A history of all connections, attempts, and failures for the panel.
Clear: Clears the Connection Logs history.
Refresh: Refreshes the Connection Logs history.
Page: Indicates the current page of the Connection Logs.
Use the Up and Down arrows to move from one page to the next.

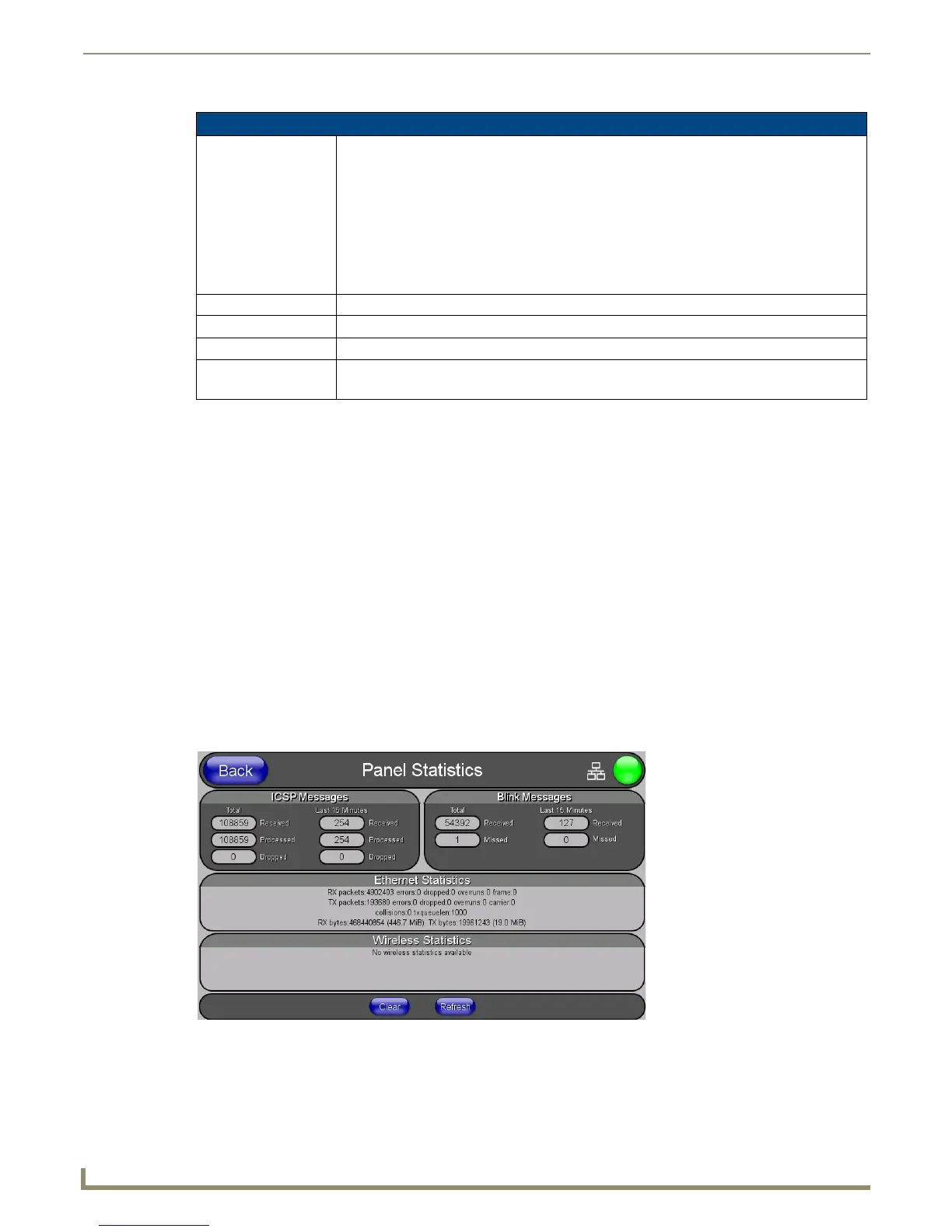

FIG. 61
Panel Statistics page
