NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom
Other Settings
Holding down the Other Settings button provides a menu to select the Image Caching page, the Password Settings page,
the Sensor Settings page, or the SIP Settings page (FIG. 54). Select either option to access that page.
Cache Settings Page
The Cache Settings page (FIG. 55) configures the allocation of memory for image caching.
The G4 graphics engine caches images to decrease load time of previously viewed images. RAM caching is always
enabled, and both static and dynamic images are stored in the RAM cache as they are viewed.
The size of RAM cache is automatically configured to take into account available memory versus memory that may be
needed by the panel later. As the RAM cache approaches its maximum size, the oldest items in the cache may be
discarded to make room for newer items.
If Flash caching is enabled, dynamic images that would have been discarded will actually be moved to Flash, since
retrieving images on Flash is typically faster than across a network, although it is slower than using a RAM cache.
Note that since static images are already stored on Flash, they are never moved to the Flash cache, so Flash caching
applies only to dynamic images. Images in Flash cache are moved back to RAM cache the next time they are viewed.
As the Flash cache approaches its maximum size, the least recently used items may be discarded to make room for new
items.
The elements of this page are as follows:

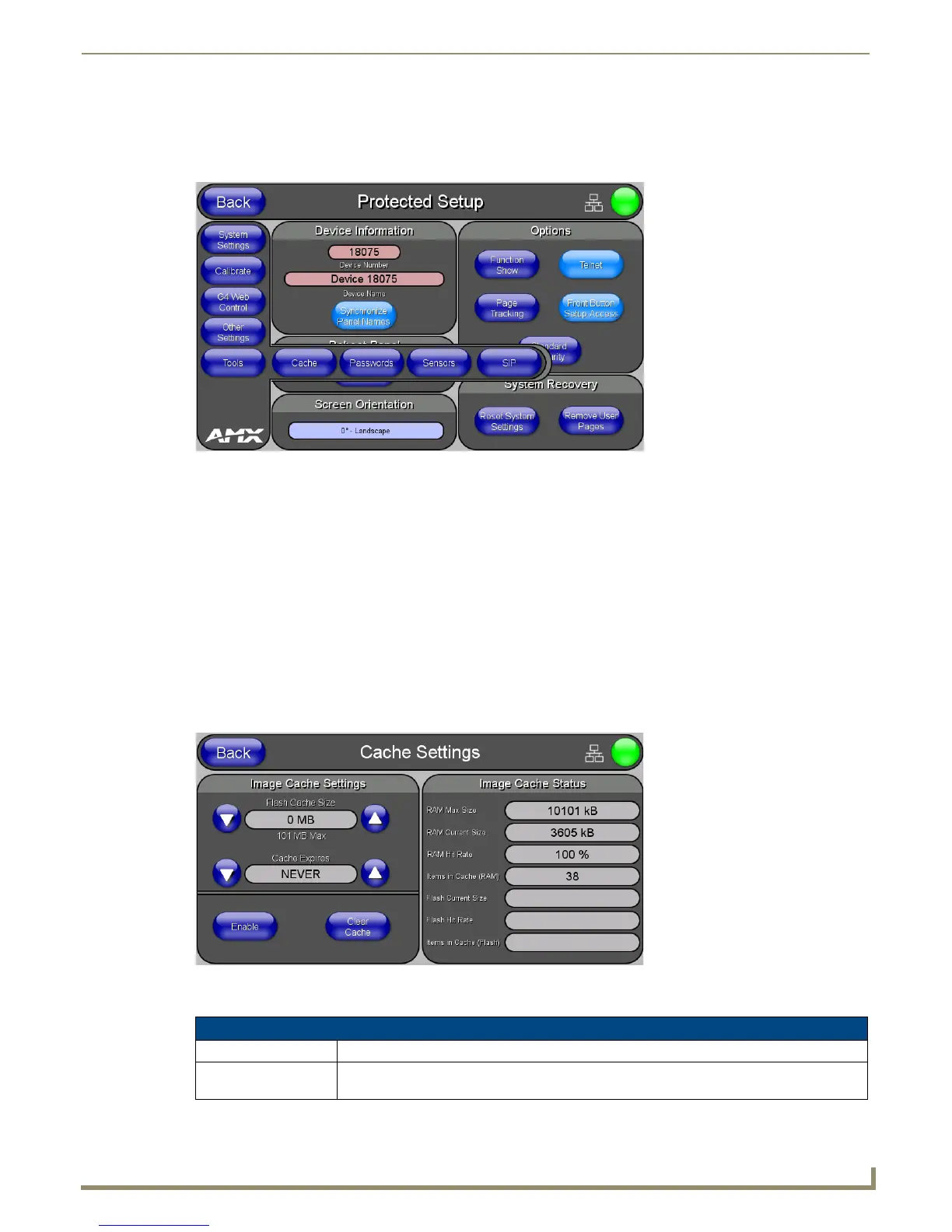

FIG. 54 Other Settings popup menu
FIG. 55 Cache Settings Page
Cache Settings Page
Back: Saves all changes and returns to the previous page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the
Master is Wired (image of three networked computers).
