Installation
12
NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom
Installing the NXD-500i into a Flat Surface using #4 screws
Three #4 mounting screws (not included) are secured through circular holes located at the left and right sides of the
NXD-500i.
Refer to SP-2261-02 for detailed installation dimensions (reproduced in FIG. 9).
Cutting out the surface slightly smaller than what is outlined in the installation drawings in order to make any
necessary cutout adjustments, is highly recommended.
1. Prepare the area by removing any screws or nails from the surface before beginning the cutout process.
2. Cut out the surface for the NXD-500i Wall Mount unit using the dimensions shown in FIG. 9.
The most important thing to remember when mounting the NXD-500i is that the back
box must be installed flush against the mounting surface.

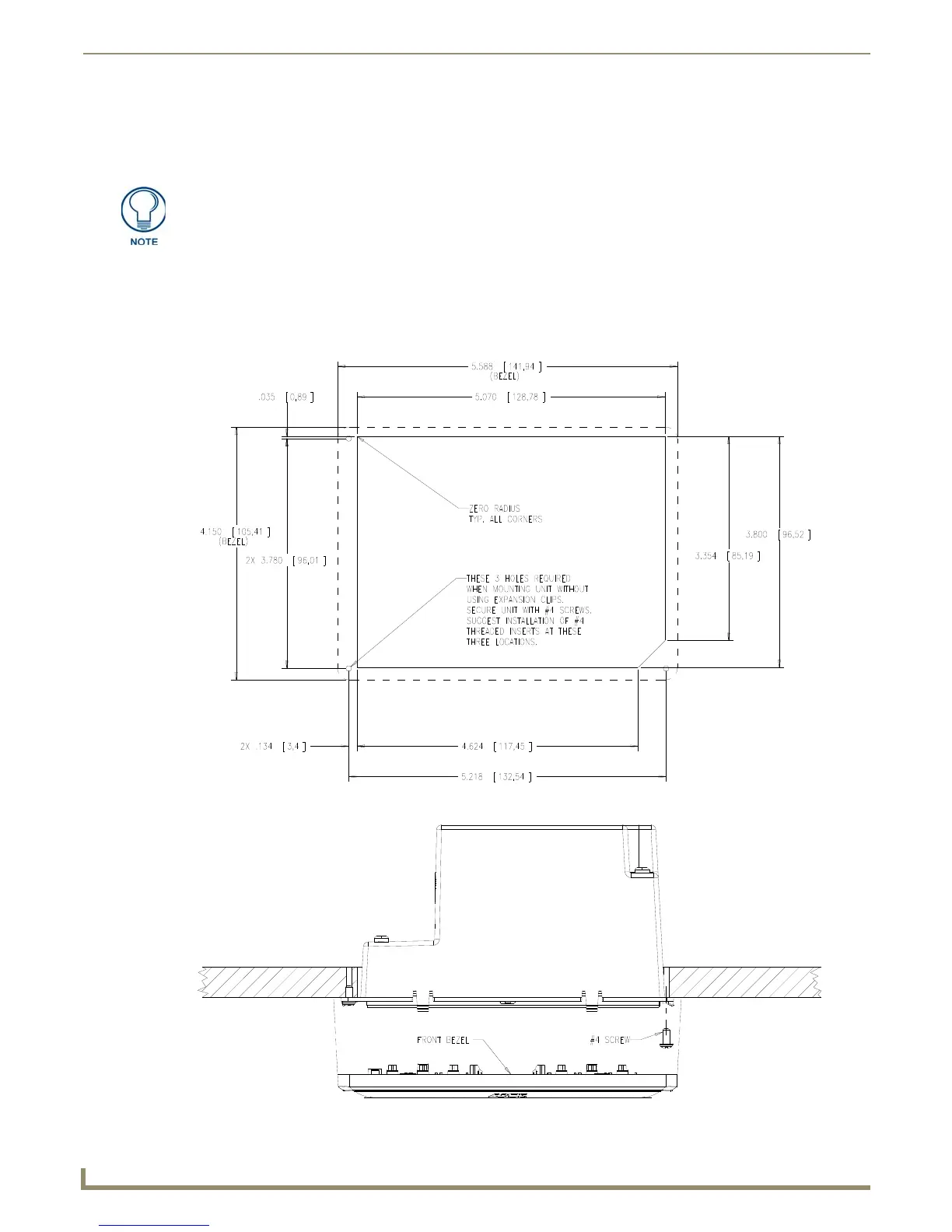

FIG. 9 NXD-500i Wall Mount panel dimensions using #4 mounting screws
