Pressing and holding the Information button provides a menu to select either the Panel Information page or the Panel
Information page (FIG. 40). Select either option to access that page.
Panel Information Page
The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected
Modero panel (FIG. 41). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information
on uploading TPDesign4 files to a panel.
The elements of the Project Information page are described in the table below:

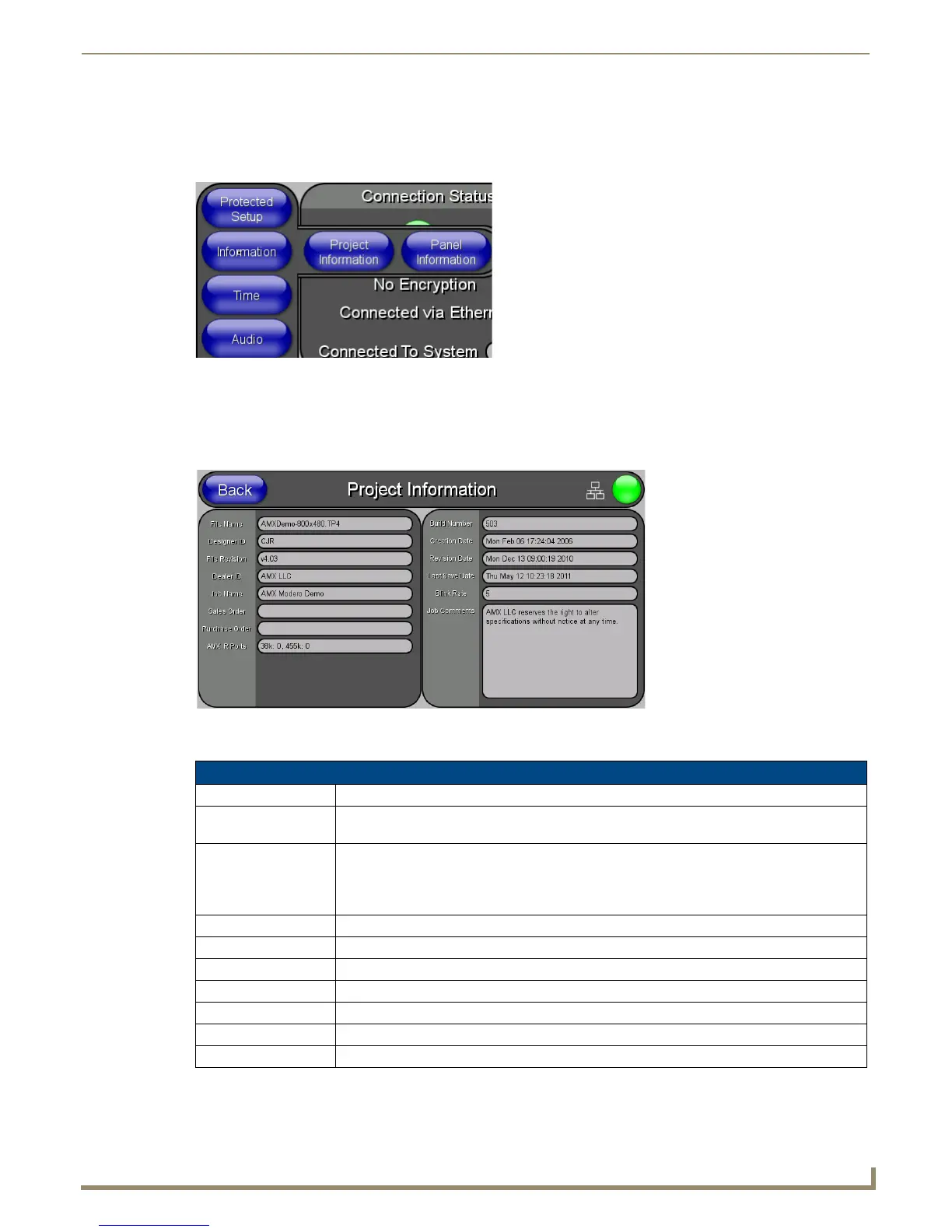

FIG. 40 Information menu
FIG. 41 Project Information page
Project Information Page
Back: Returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the
Master is Wired (image of three networked computers).
Connection Status icon: This visual display of the connection status allows the user to have a current visual update of
the panel’s connection status regardless of what page is currently active.
• A Lock only appears on the icon if the panel has established a connection with a currently
secured target Master (requiring a username and password).
File Name: Displays the name of the TPDesign4 project file downloaded to the panel.
Designer ID: Displays the designer information.
File Revision: Displays the revision number of the file.
Dealer ID: Displays the dealer ID number (unique to every dealer and entered in TPD4).
Job Name: Displays the job name.
Sales Order: Displays the sales order information.
Purchase Order: Displays the purchase order information.
