OptiBean /OptiBean XL

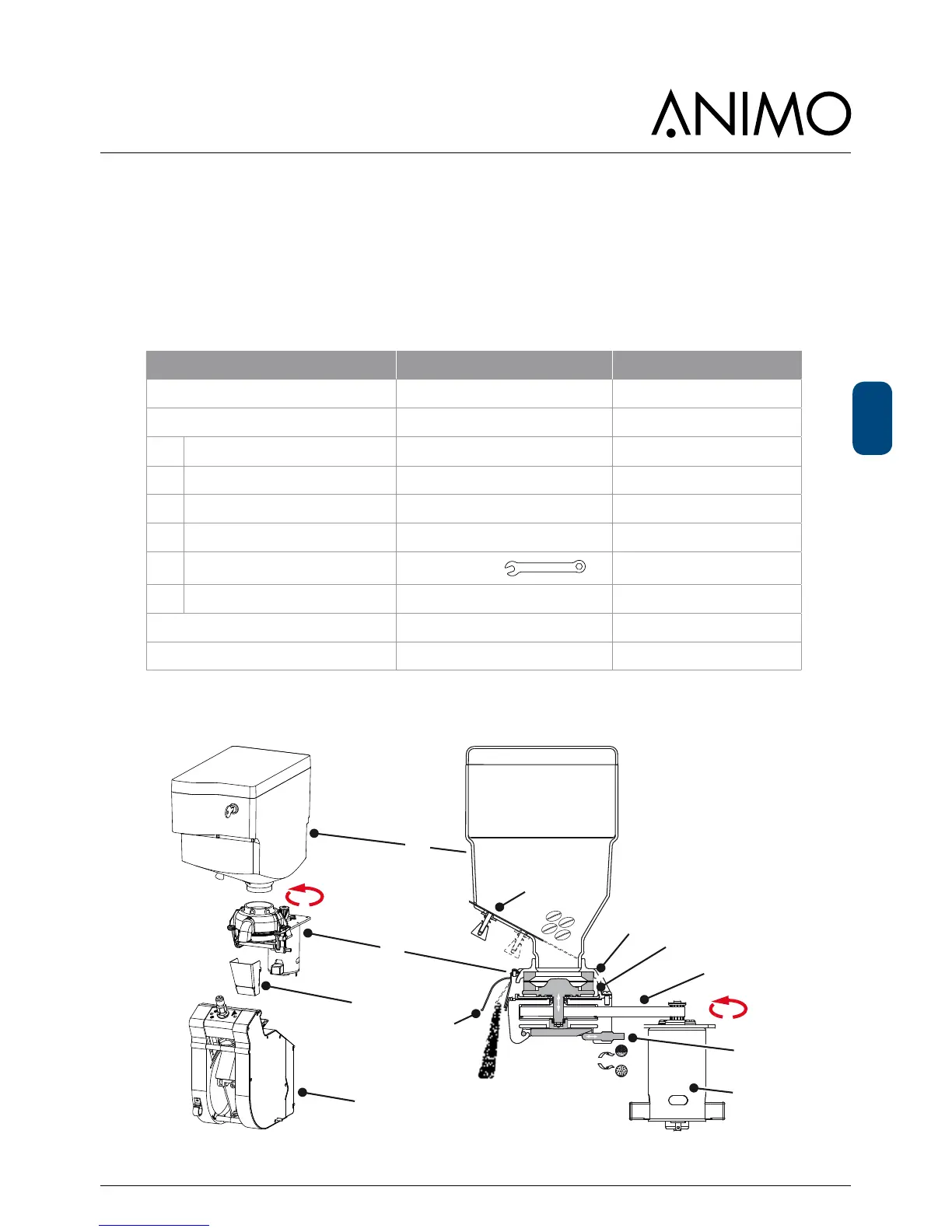

3.5 Grinder
The grinder is driven by a powerful DC motor [2.6].
The upper grinding disk [2.2] is xed. The lower grinding disk [2.3] is driven by a drive belt [2.4]. The
grind neness can be set with an adjustment screw [2.5]. When the screw is turned clockwise, the
distance from the upper grinding disk reduces; anti-clockwise it increases.
The ground coffee leaves the grinder via the coffee outlet [2.1]. A rubber ap prevents the entry of
moisture.
Major components Technical data Material
1. Bean canister Content 1.5 kg PC
2. Coffee grinder Sound level < 70 dB(A)
2.1 Coffee outlet ABS
2.2 Upper grinding disk Ø 65 mm Ceramic
2.3 Lower grinding disk Ø 65 mm Ceramic
2.4 Drive belt Rubber
2.5 Fine adjustment
Hex. screw +
2.6 DC motor 230Vdc
3. Coffee guide stainless steel
4. Espresso group See Section 3.4
3
2.1
2.2
2.4
2.5
2.6
1.1
1
2
4
2.3
