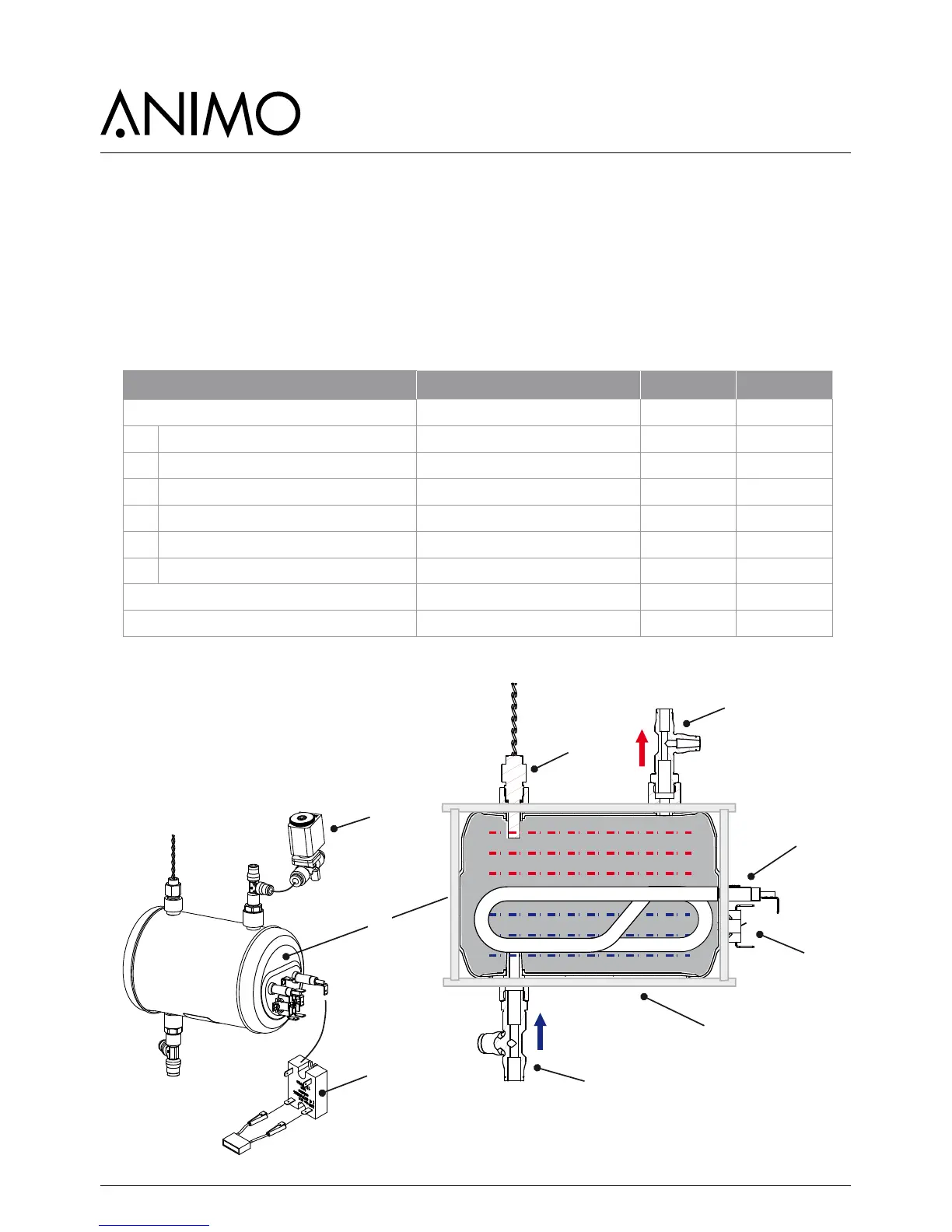

3.7 Boiler system
Turn on the device using the ON/OFF switch. The display will light up. If the boiler [1] is empty (rst
installation or after running the shut down menu) the commissioning menu will automatically starts
and will guides you trough the lling up sequence. If the boiler is lled the heating element [1.3] will
be switched on by the solid state rails (SSR ) [3]. As soon as the NTC sensor [1.1] measures the set
temperature, the heating element [1.3] will be switched off. The insulation [1.5] prevents the boiler from
cooling down. The boiler is tested at a overpressure of 13 Bar (1,3MPa) constructed for working
pressures of 10 bar (1,0 MPa).
Major parts Technical data Art.No. Material
1. Boiler system 1,1 Litre 1000530 st.st.
1.1 Temperature sensor NTC 100 kΩ/25°C / M12x1 1000740 st.st.
1.2 Boiler outllet G1/4” x Ø 6mm (2x) st.st.
1.3 Boiler & heating element 230V 1800W / art.nr. 1000530 st.st.
1.4 Dry boil protection 230V 16A / art.nr. 1000736 st.st.
1.5 Insulation PEC
1.6 Boiler inlet G1/4” x Ø 8mm (2x) st.st.
2. Dispensing valve (3 way) See 3.7.1 Dispensing valve 1000699
3. Solid State Relay (SSR) 12-30Vdc / ~230V 16A 02799
