76
OptiBean /OptiBean XL
2015/09 Rev. 1.2

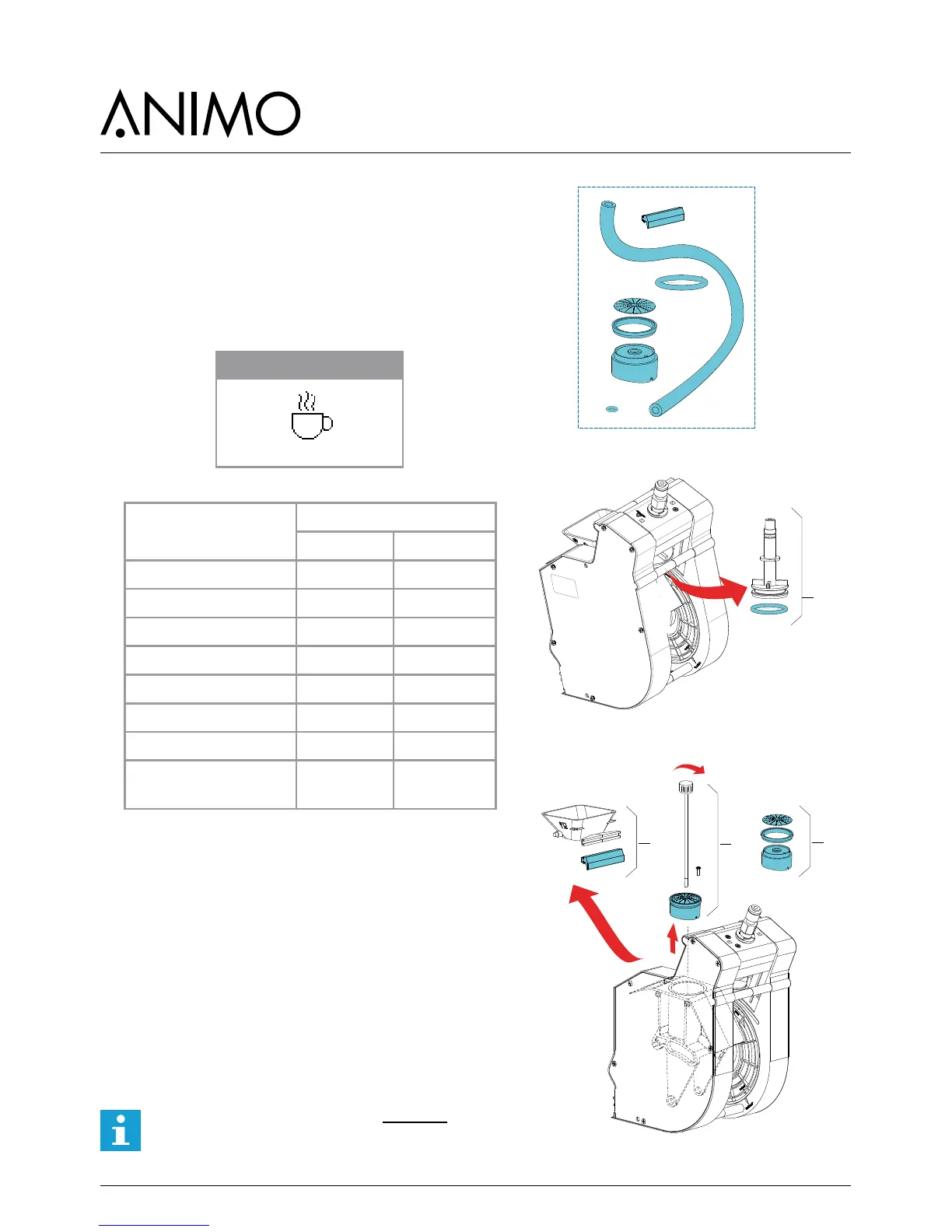

6.6 Maintenance espresso group
6.6.1 Brewer r
eplacement kit 25K
- After 25,000 cycles the lters and seals must be
replaced. The display shows [ Service brewer ].
Place cup
Service brewer
Brewer
replacement kit 25K
Brewer
Standard XL
Art. No. 1001395 1002561
O-ring big 1x 1x
Wiper 1x 1x
Filter 150 µm 1x 1x
Teon ring 1x 1x
Lower piston * 1x -
O-ring small 1x 1x
Dispensing hose
370mm
1x 1x
- After 50,000 cycles a complete inspection of the
espresso group is recommended and any worn parts
must be replaced.
1. Re-place the O-ring [1] onto the upper piston
(leave the piston in place).
2. Remove the funnel [2] by pulling it backward from
the housing, place a new wiper.
3. Unscrew the brewer lter with a small croshead
screw driver. Use the brewer xation pin (as a
corkscrew) to pull out the lower piston.
4. Wait until point 8 before place a new lower piston,
new Teon ring and new Filter [4] .
*only the replacement kit for the standard brewer
has a new lower piston!
1
4
2
3
5
6
7
8
9
*
*
