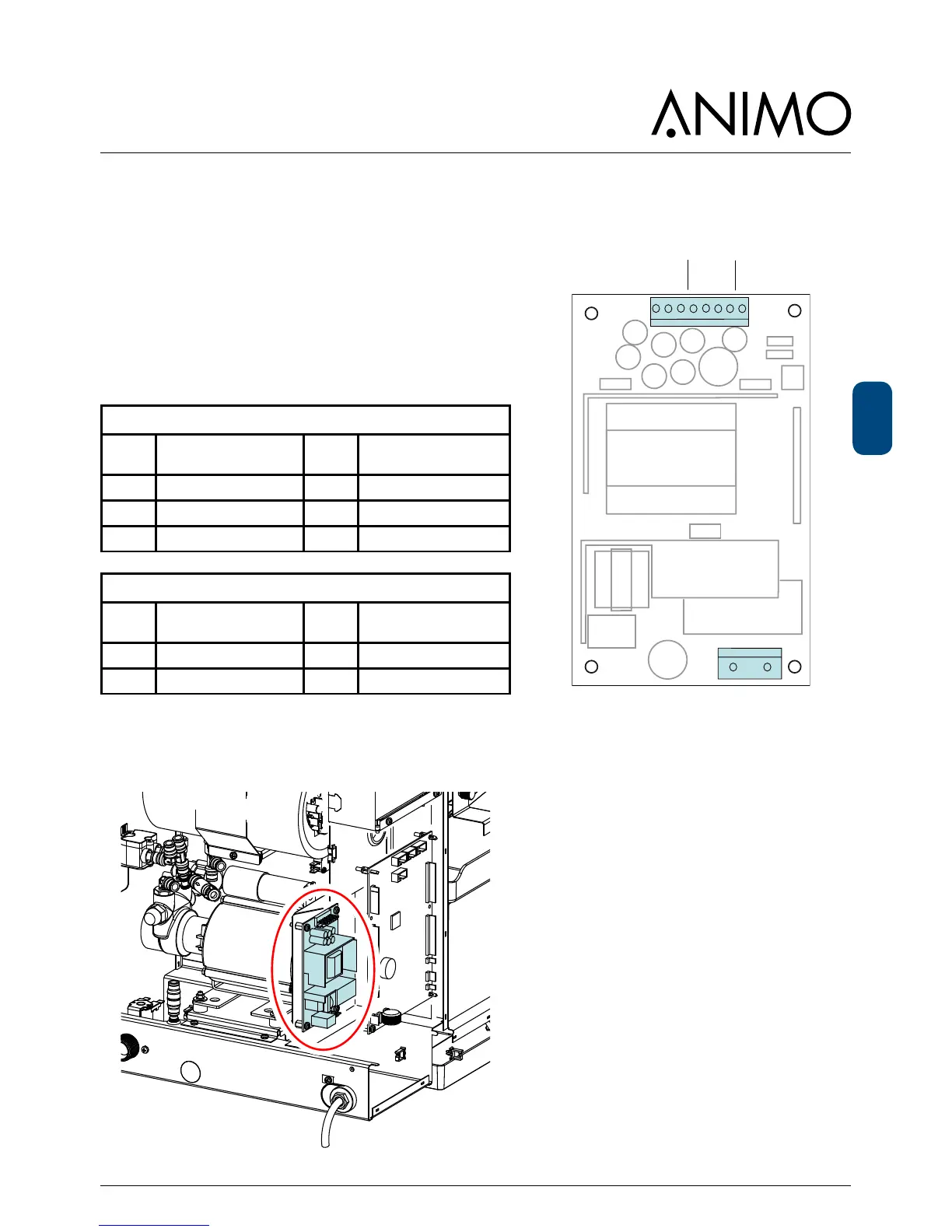

9.3 Power supply
The 24 Vdc supply consists of a 24 Vdc – 65 W
switched power supply and can be accessed by
removing the rear wall.
● On an overload, the power supply switches itself off
automatically. Reset the power supply by turning the
main switch off and on again.
9.3.1 Connections
Connector TB2 24Vdc
Pin Col-
our
Comments
1-3 24 Vdc + red
4-7 24 Vdc - black
8 - -
Connector TB1 100-240Vac
Pin Col-
our
Comments
1 230 Vac Neutral blue
3 230 Vac Phase yellow
+24V GND
100-240 V a c
1
TB1
TB2
