Digital Video Recorder User Manual
79
5. After the exporting is complete, click OK to finish the packet export.
Up to 1M data can be exported each time.
10.4.3Checking Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click Status on the right bottom of the page.

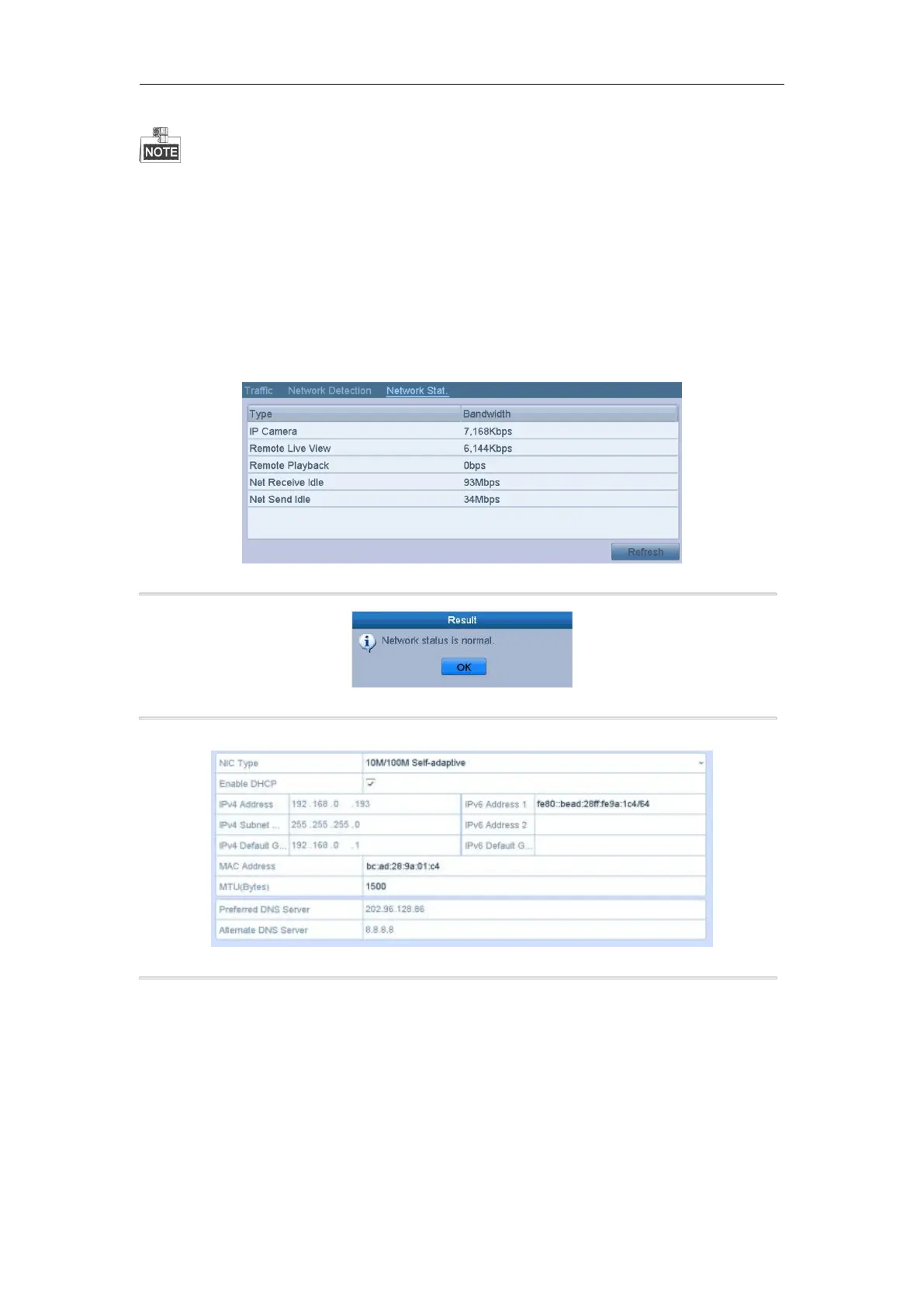

Figure 10. 23 Checking Network Status
If the network is normal the following message box pops out.
Figure 10. 24 Network Status Checking Result
If the message box pops out with other information instead of this one, you can click Network button to show
the quick setting interface of the network parameters.
Figure 10. 25 Network Parameters Configuration
10.4.4Checking Network Statistics
Purpose:
You can check the network statistics to obtain the real-time information of the device.
Steps:
1. Enter the Network Statistics interface.
Menu > Maintenance> Net Detect
2. Click the Network Stat. tab to enter the Network Statistics menu.
