2-3 Front Panel Overview Instrument Overview
2-2 PN: 10580-00252 Rev. J Site Master User Guide
The Site Master takes approximately sixty seconds to complete power warm-up and to load
the application software. At the completion of this process, the instrument is ready for use.
2-3 Front Panel Overview
The Site Master menu-driven interface is easy to use and requires little training. The
Site Master uses a touch screen and keypad for data input. The five bottom menu keys and
eight submenu keys on the right side are touch screen keys. The menu and submenu keys will
vary depending upon the selected mode of operation, see “Mode Selector Menu” on page 2-14.
Numeric keys 1 through 9 are dual purpose, depending upon the current mode of operation.
The dual-purpose keys are labeled with a number on the key itself and the alternate function
is printed in blue above each of the keys. Use the blue Shift key to access the functions printed
on the panel. The Escape key, used for aborting data entry, is the oval button located above
numeric key 9. The rotary knob, the four Arrow keys, and the keypad can be used to change
the value of an active parameter.

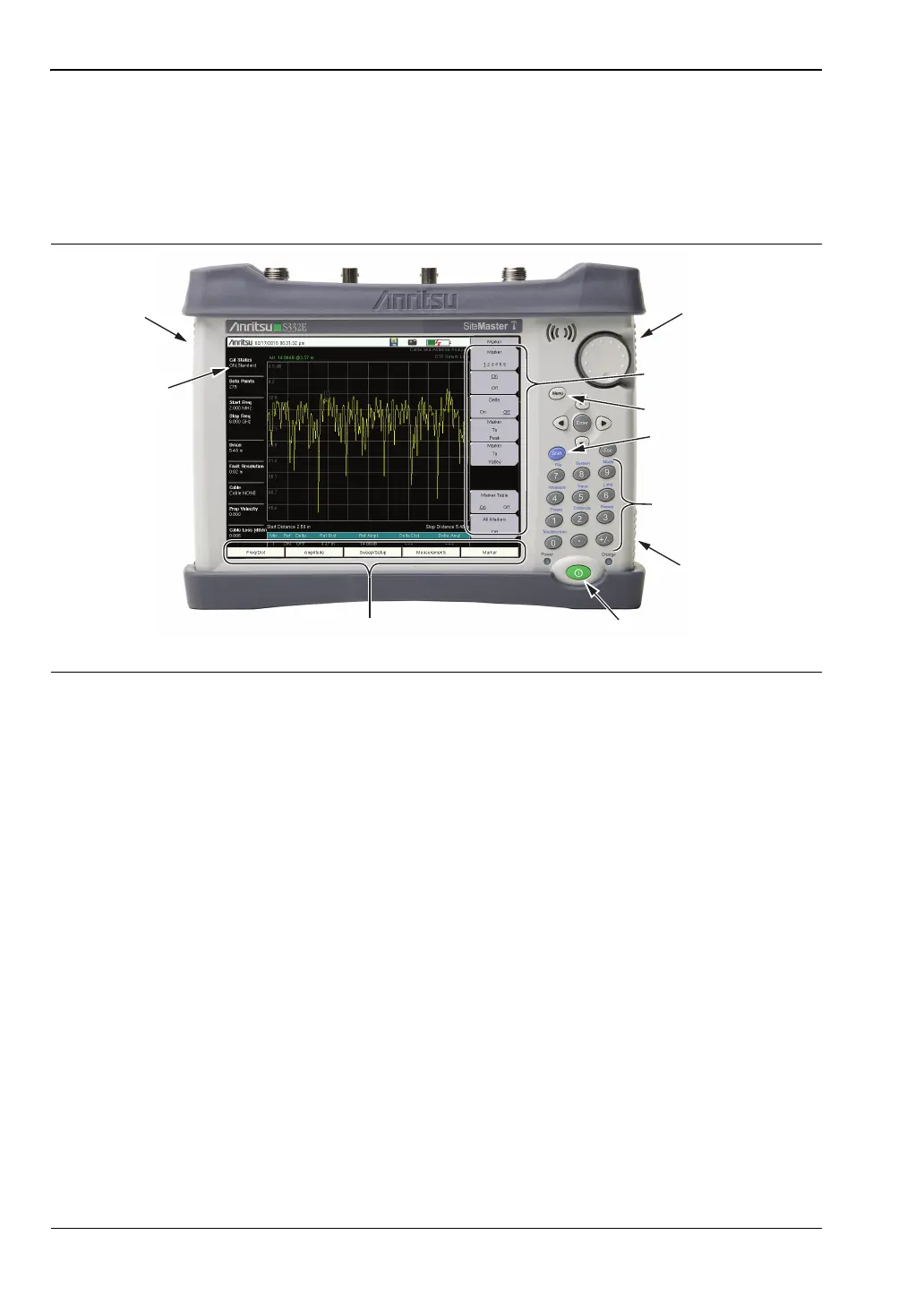

The Menu key provides graphical icons of all the installed measurement modes and user
defined short-cuts (see “Menu Key” on page 2-3). The locations of the keys are shown in
Figure 2-1.
Note
Keep the fan inlet and exhaust ports clear of obstructions at all times for proper
ventilation and cooling of the instrument.
