4-2 Managing Files File Management
4-6 PN: 10580-00252 Rev. J Site Master User Guide
Deleting Files
Delete a Selected File or Files
Press the Delete submenu key. Highlight the file to be deleted with the touchscreen or the
Up/Down arrow keys. Press the Select or De-Select key. The file will be outlined in blue when
selected. Press the Delete key and Enter to delete the selected file.
Delete Dialog Box
Press the Delete submenu key to open the Delete dialog box (Figure 4-5). The submenus allow
sorting by file type, name and saved date. See the “Delete Menu” on page 4-14 for additional
information.

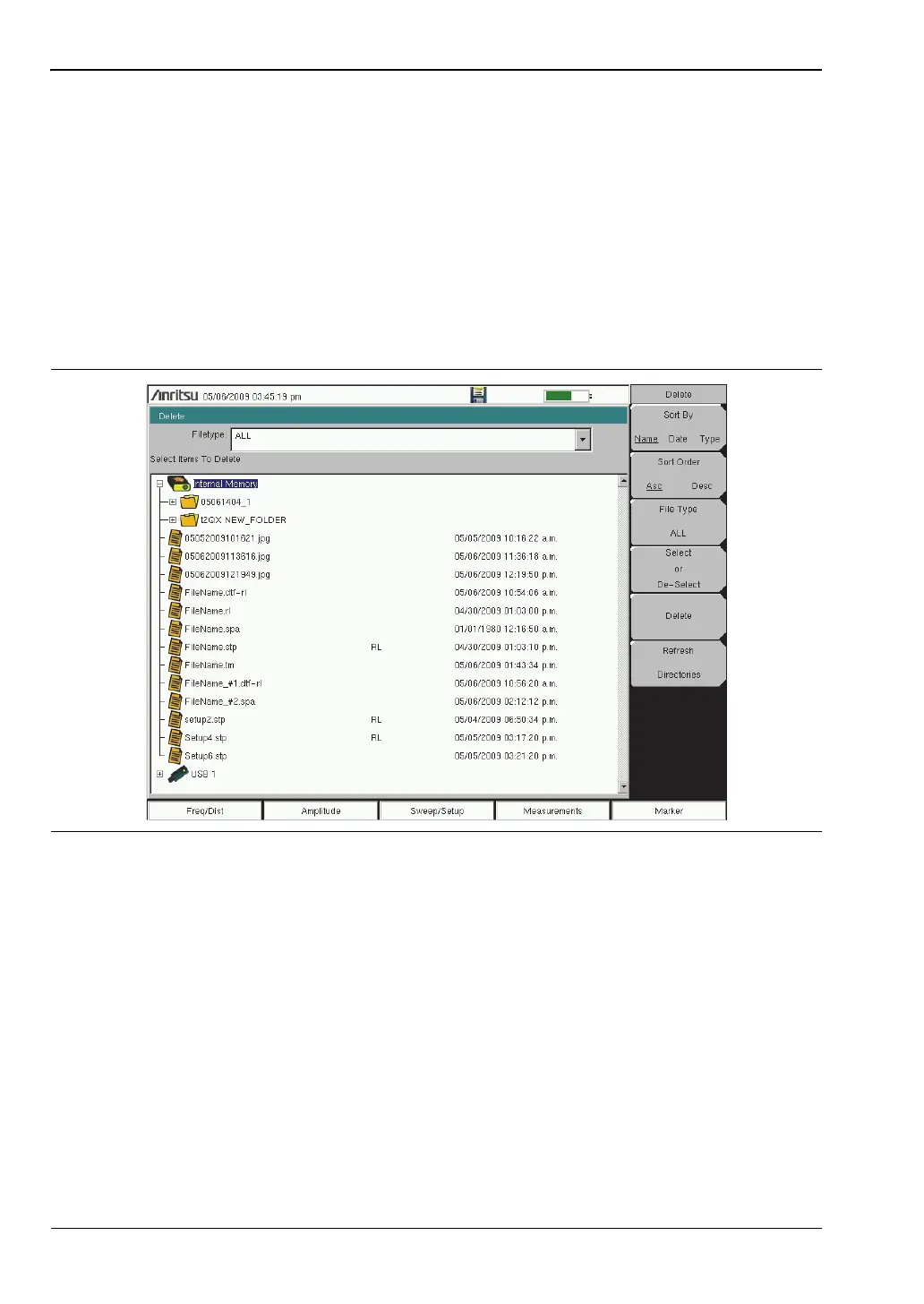

Figure 4-5. Delete Dialog Box
