Anritsu Tool Box 8-4 Software Tools
Site Master User Guide PN: 10580-00252 Rev. K 8-3
8-4 Software Tools
The Anritsu Tool Box provides links to the software tools installed on your PC. Alternatively,
you can launch an application using its desktop shortcut or through the Windows Start menu.
The following sections list the top features and functions of the tools contained in the Anritsu
Tool Box. For a detailed description of these features and how to perform specific tasks, refer
to each application’s Help system. The program Help also lists the instrument models,
measurement modes, trace types, and file types that are compatible with that application.
Line Sweep Tools (LST)
Line Sweep Tools is post-capture trace processing software designed for users who need to
analyze and generate reports on large numbers of cable, antenna, and PIM traces. Software
features include:
• Measurement plot data capture and transfer from the instrument to a PC
• Marker and limit line presets
• Return Loss, Distance-to-Fault, PIM analysis
• LMR Master and VNA Master Field Mode compatibility
• Plot overlay for comparison of up to ten traces of the same measurement type
• Plot area zooming
• A naming grid for renaming files, titles, and subtitles
• Automated report generation
• Output to printer or to PDF or HTML format
• Export of plot data to text, image, or VNA files
Master Software Tools (MST)
Master Software Tools is designed for users of Anritsu handheld spectrum analyzers,
interference analysis tools, transmission testers, and backhaul testers. Supported functions
include the following:
• Transfer of captured measurement data to and from a PC for storage and analysis
• RF Spectrum Analyzer traces
• RF Interference analysis
• Spectrum monitoring
• Transmitter signal quality tests
• T1, T3, and E1 backhaul tests
• Trace overlay features for comparing multiple Spectrum Analyzer measurements
• Limit lines and markers
• Script Master for the creation of automated test procedures
• Export of measurement data as text, graphic, or Comma Separated Value format (CSV)
files
• Reports created in HTML format for use in other applications

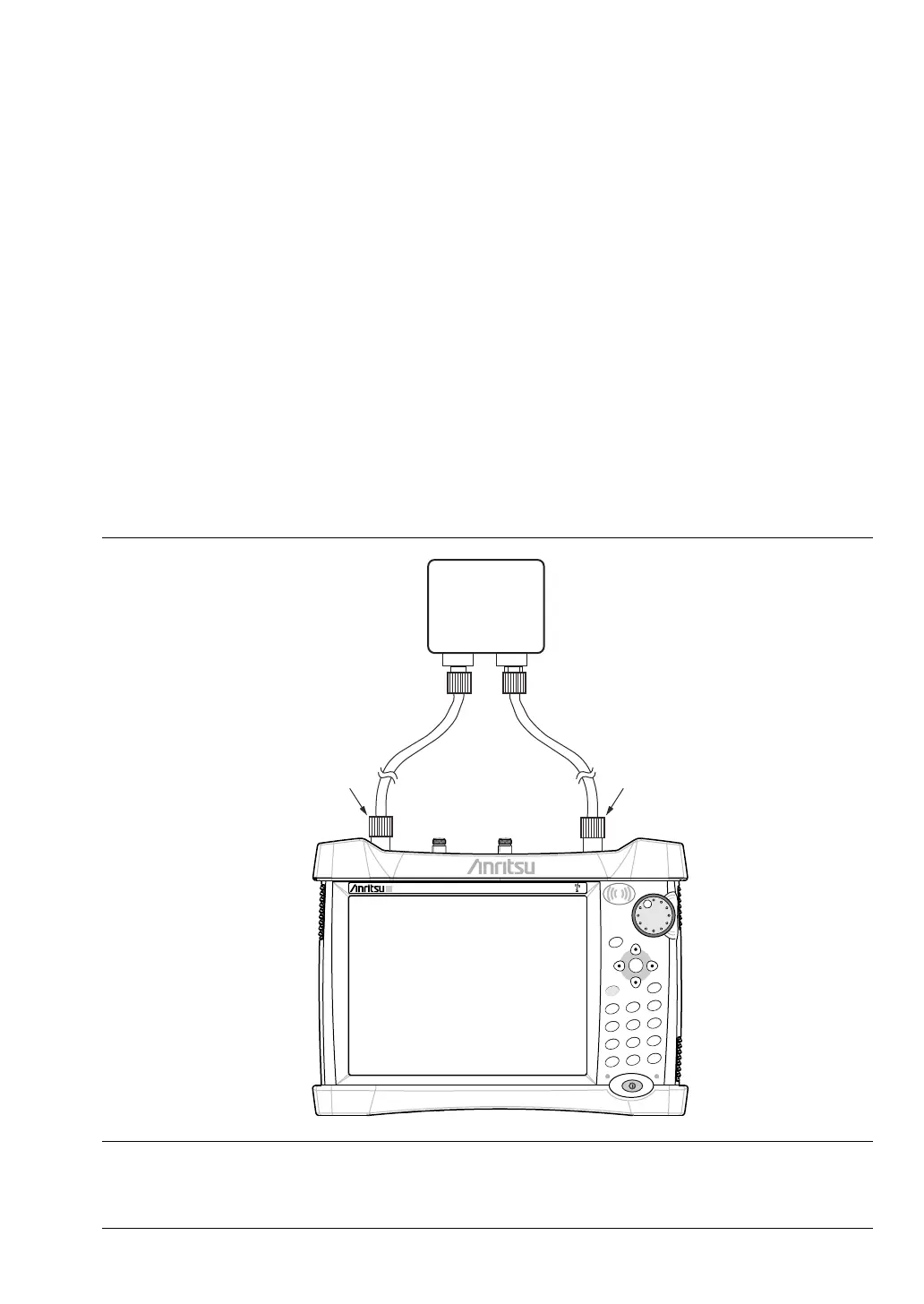

Anritsu s331c Specifications

General

Measurement Types	Return Loss, VSWR, Cable Loss, Distance-to-Fault
Impedance	50 ohms
Return Loss	0 to 60 dB
Display	Color LCD
Battery Life	Approx. 4 hours
Weight	2.0 kg (4.4 lbs)
VSWR	1.0 to 65
Cable Loss	0 to 20 dB
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
