Site Master User Guide PN: 10580-00252 Rev. K 8-1
Chapter 8 — Anritsu Tool Box
8-1 Introduction
The Anritsu Tool Box is a suite of applications that provide an interface between Anritsu
handheld RF instruments and a PC. The instrument connects to the computer via a USB,
Ethernet, or serial port. Depending on the application selected, available functions range
from the capture, transfer, and reporting of measurement data for trace analysis, to map
preparation, creation and delivery of work instructions, and remote instrument monitoring
and control.
The Tool Box may be installed from the Anritsu software DVD or you can download
individual applications from the Anritsu website at
anritsu.com/en-US/test-measurement/support/technical-support/handheld-tools-tool-box
This chapter gives an overview of the software installation DVD and the main features of
each application in the Anritsu Tool Box.
8-2 Software Installation DVD
Place the software disc in the DVD drive on your PC and follow the on-screen instructions.
The Setup Wizard welcome screen illustrated in Figure 8-1 may change with the software
version.
You will be asked to select which applications you wish to install. Not all instrument models
are supported by every software tool. Visit the web page referenced in the Introduction
section above and follow the links for more information on a specific tool.

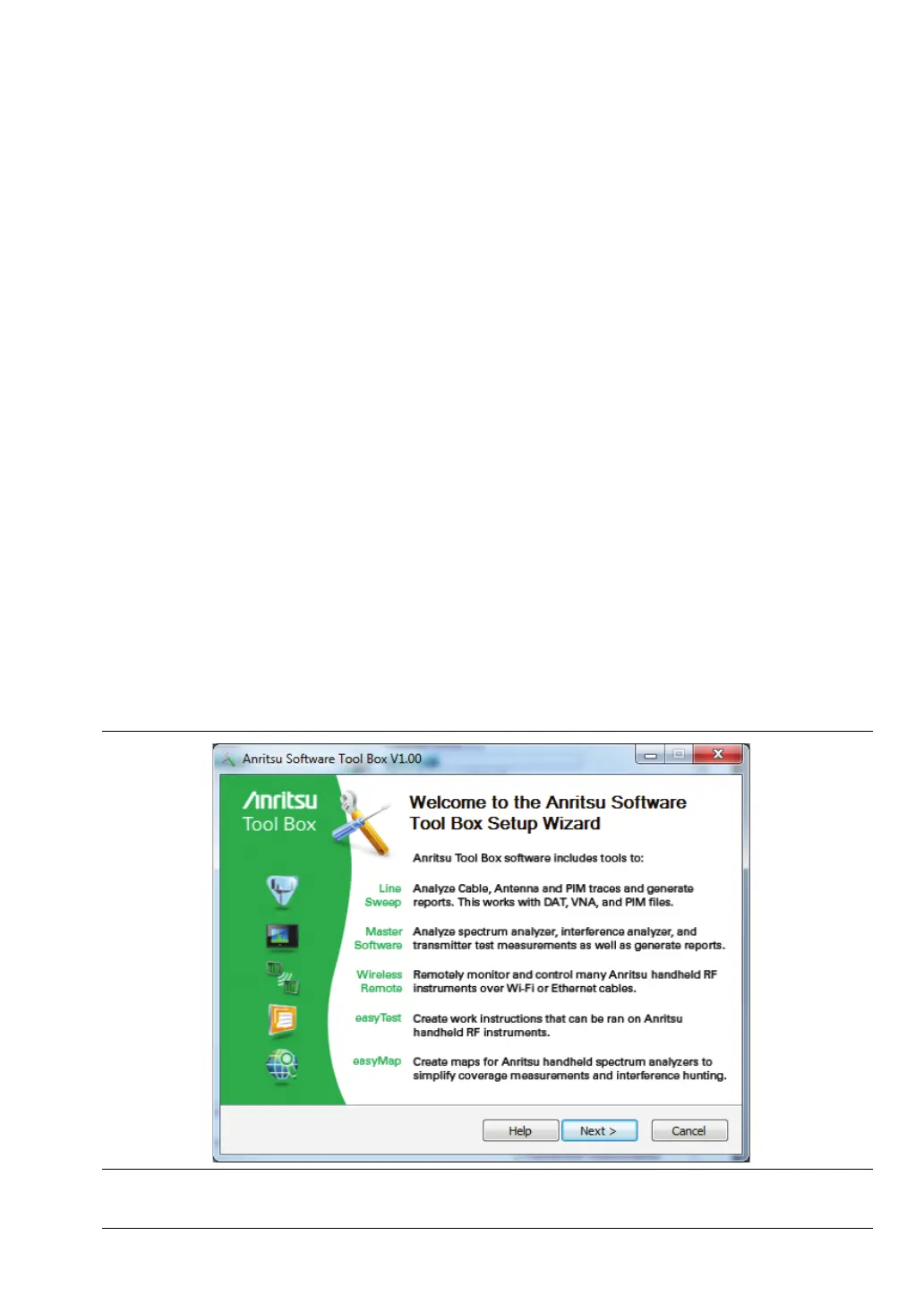

Figure 8-1. Anritsu Tool Box Setup Wizard
