Web Remote Control
9-3
Web
Remote Control Interface
Site
Master User Guide
PN: 10580-00252 Rev. K
9-5
At the top of the browser window, a green ti
tle bar shows the instrument model number and
IP address. If the instrument ha
s been assigned a name, this na
me is displayed in the center
of the title bar. The me
nu bar consists of tabs for commands and links.

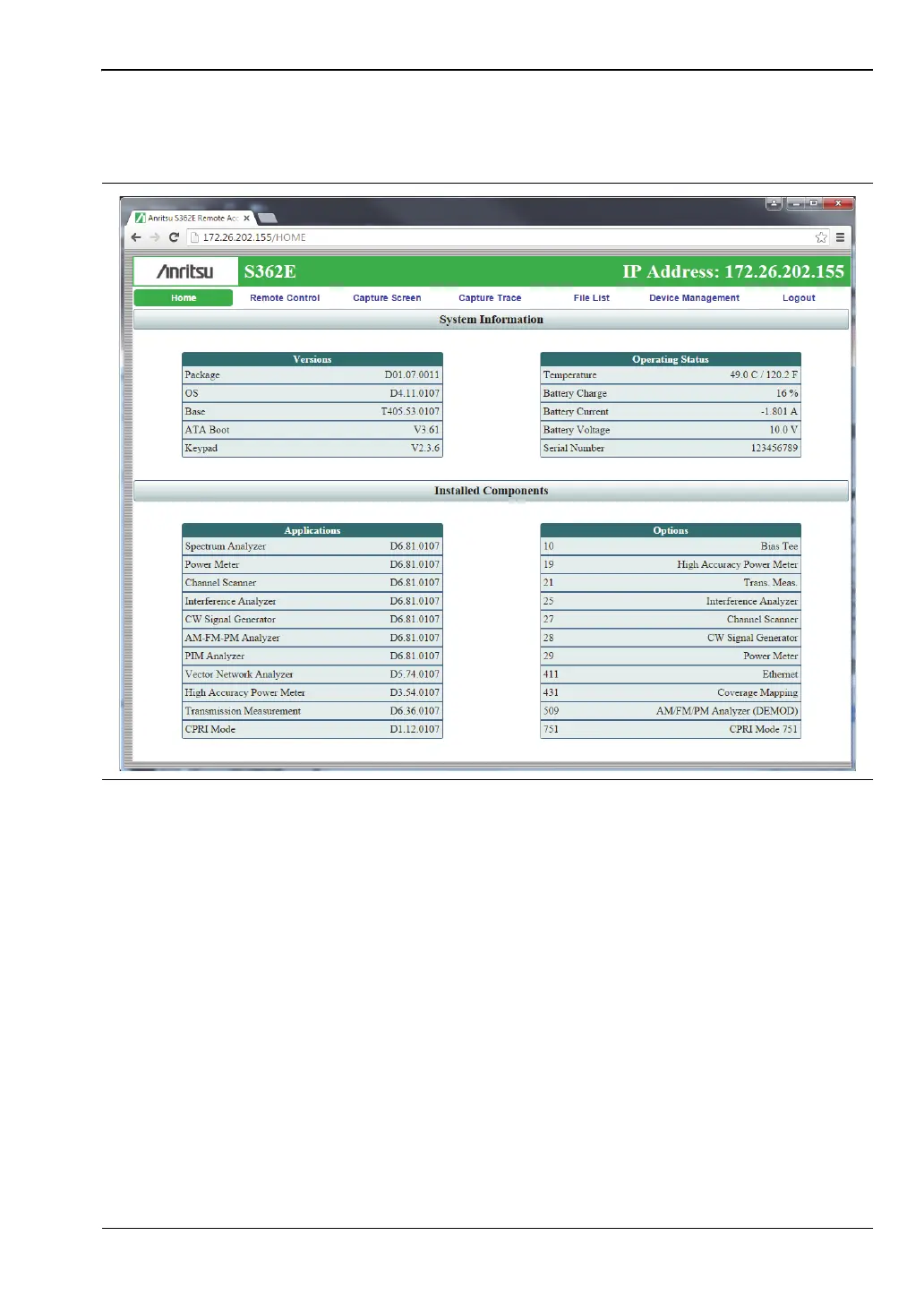

Figure
9-3.
W
eb Remote Control Home Page
