1-8 Soft Carrying Case and Tilt Bail General Information
1-6 PN: 10580-00305 Rev. J MS20xxC UG
5. Close the back panel and secure it with the zipper .
The soft carrying case includes a detachable shoulder strap that can be connected to the
D-rings on the upper corners of the case as required for comfort or convenience. The velcro
strap acts as a tilt bail when using the soft case as shown in Figure 1-4.

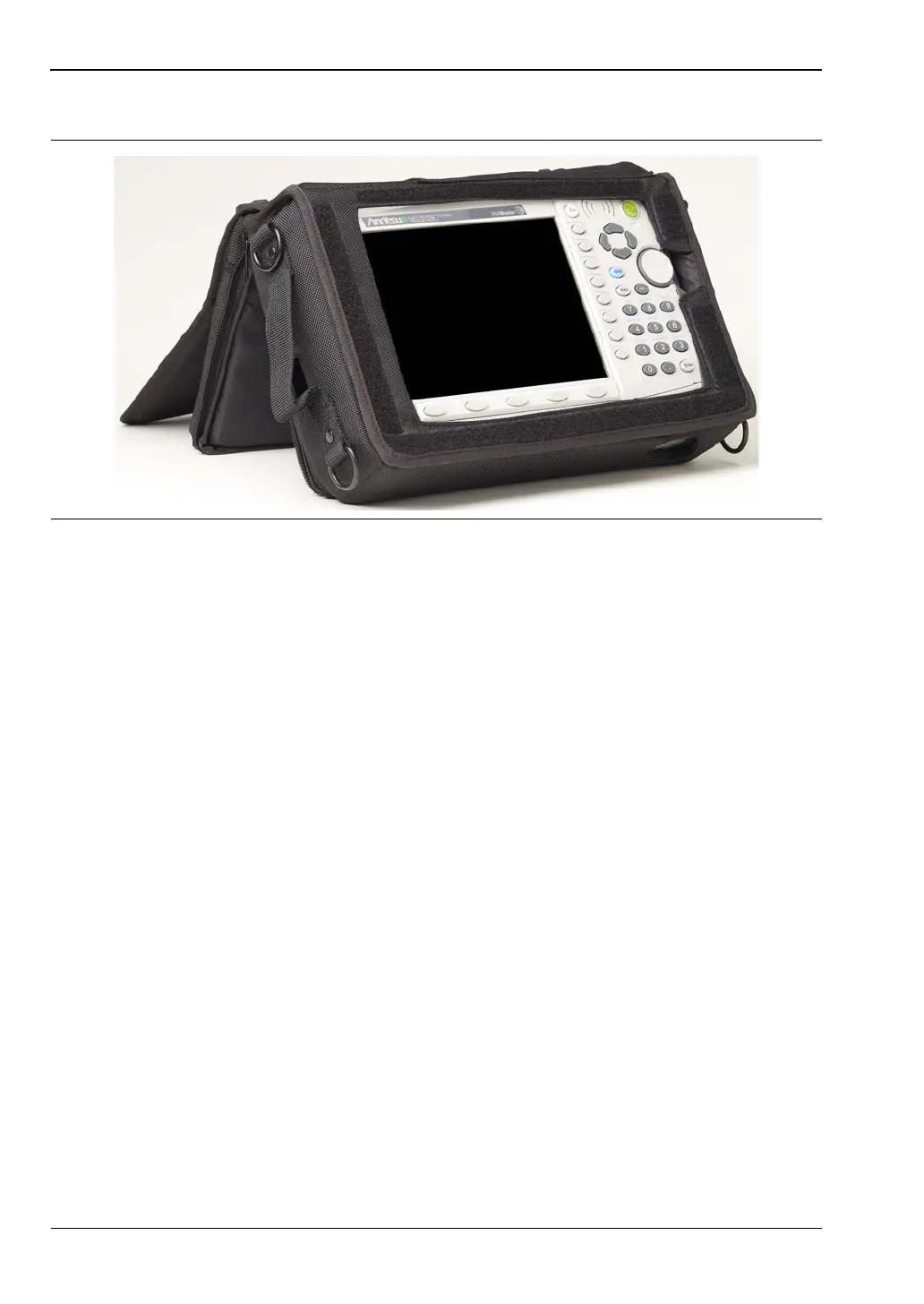

Figure 1-4. VNA Master Installed in Soft Case
