Anviz EP300 User Manual

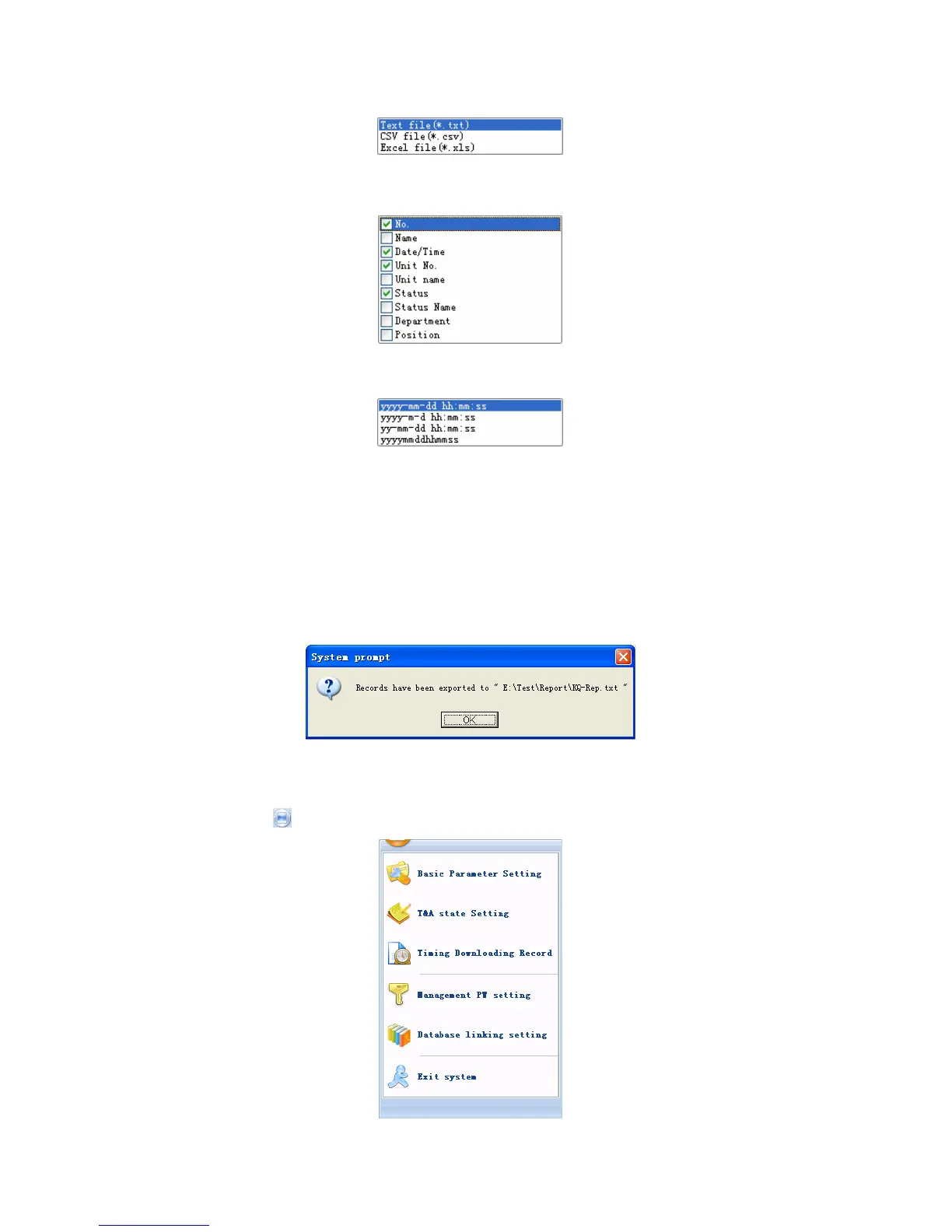

Export format: 3 formats optional: text file (.txt), CSV file (.csv), Excel files (.xls).
Export field: Choose the fields which are useful for you.
Time format: 4 optional formats
Employee No. length: Set employee No. length, the default is 6 digits.
Space symbol: Space symbol to separate fields
Space symbol length: Space symbol bit
After setting completed, click [Export record] button, open [Save as] window,
choose save file directory, input file name, click [Save] button. The system prompts as
follow:
Click the button [OK] to confirm.
5.5 System settings
Click the icon [
] on the top left corner, the menu pops up as follows:
5.5.1 Basic parameter settings
96

Anviz EP300 Specifications

General

Type	Basic access control reader
Resolution	500
Certification	FCC, CE
Product color	Black
Number of users	1000 user(s)
Housing material	Carbon
Scan speed (min)	0.5 mm/sec
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Display type	LCD
Display size (HxV)	128 x 64 mm
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	35 mm
Width	185 mm
Height	130 mm
