Anviz EP300 User Manual

Step2
Add corresponding working hour timetable in accordance with “Cycle”: first week
(morning shift, from Monday to Friday)

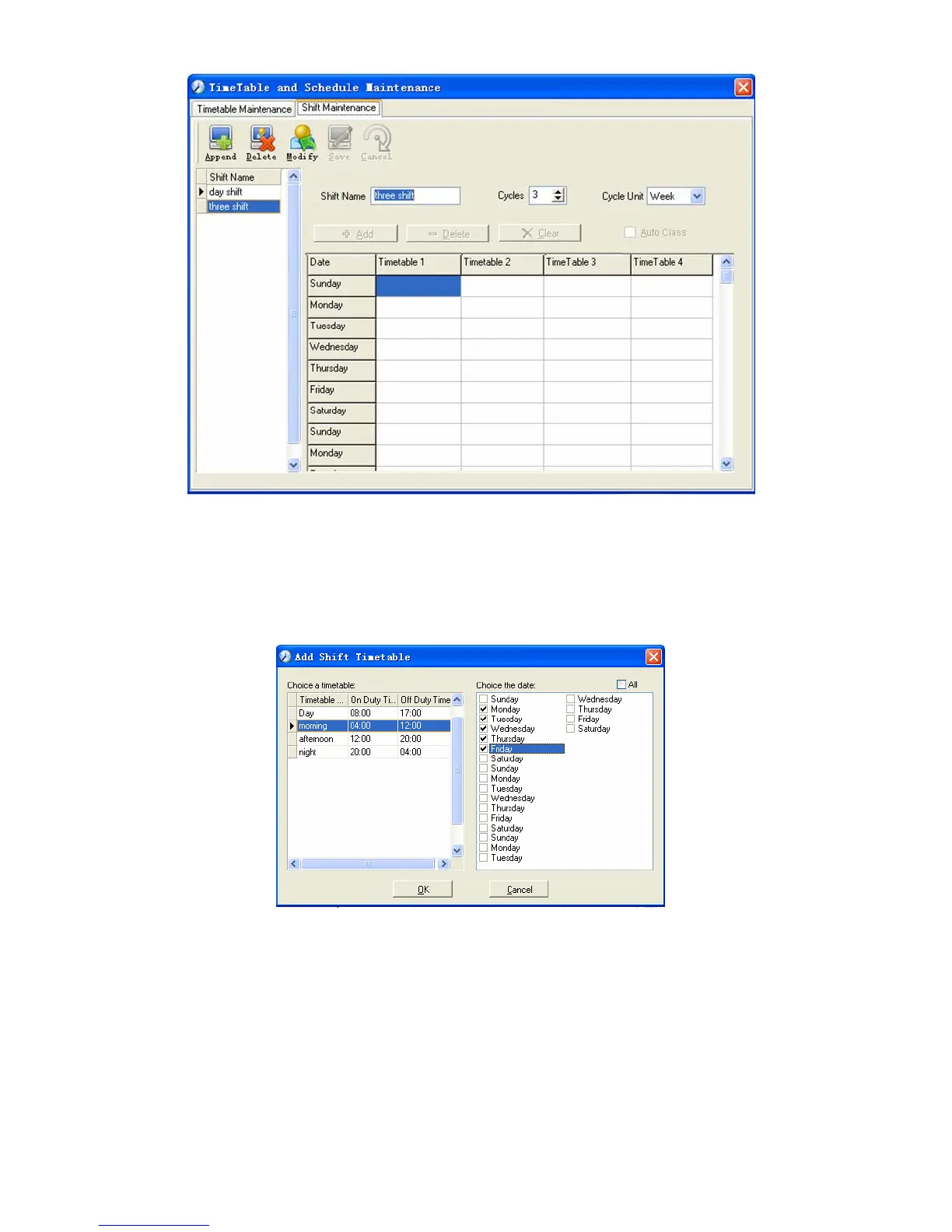

Click [Add] and the following window pops up:
Select the timetable “Morning shift” to be added and select the time range to apply
to this timetable “from Monday to Friday of the first week” and click [OK] to complete the
setting of the first week.
The second week (afternoon shift, from Monday to Friday)
Click [Add], make corresponding operation in the springing window (see the result
below):
54

Anviz EP300 Specifications

General

Type	Basic access control reader
Resolution	500
Certification	FCC, CE
Product color	Black
Number of users	1000 user(s)
Housing material	Carbon
Scan speed (min)	0.5 mm/sec
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Display type	LCD
Display size (HxV)	128 x 64 mm
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Depth	35 mm
Width	185 mm
Height	130 mm
