Appendix D: Mechanical Specification 93 (114)
D.6.1 Host Connector Considerations
When using other connectors, the following needs to be considered:
To prevent incorrect insertion and to ensure that the grounding mechanics work as intended,
use connectors with guiding rails of sufficient length (preferably longer than 19 mm), or provide
an equivalent mechanical solution.

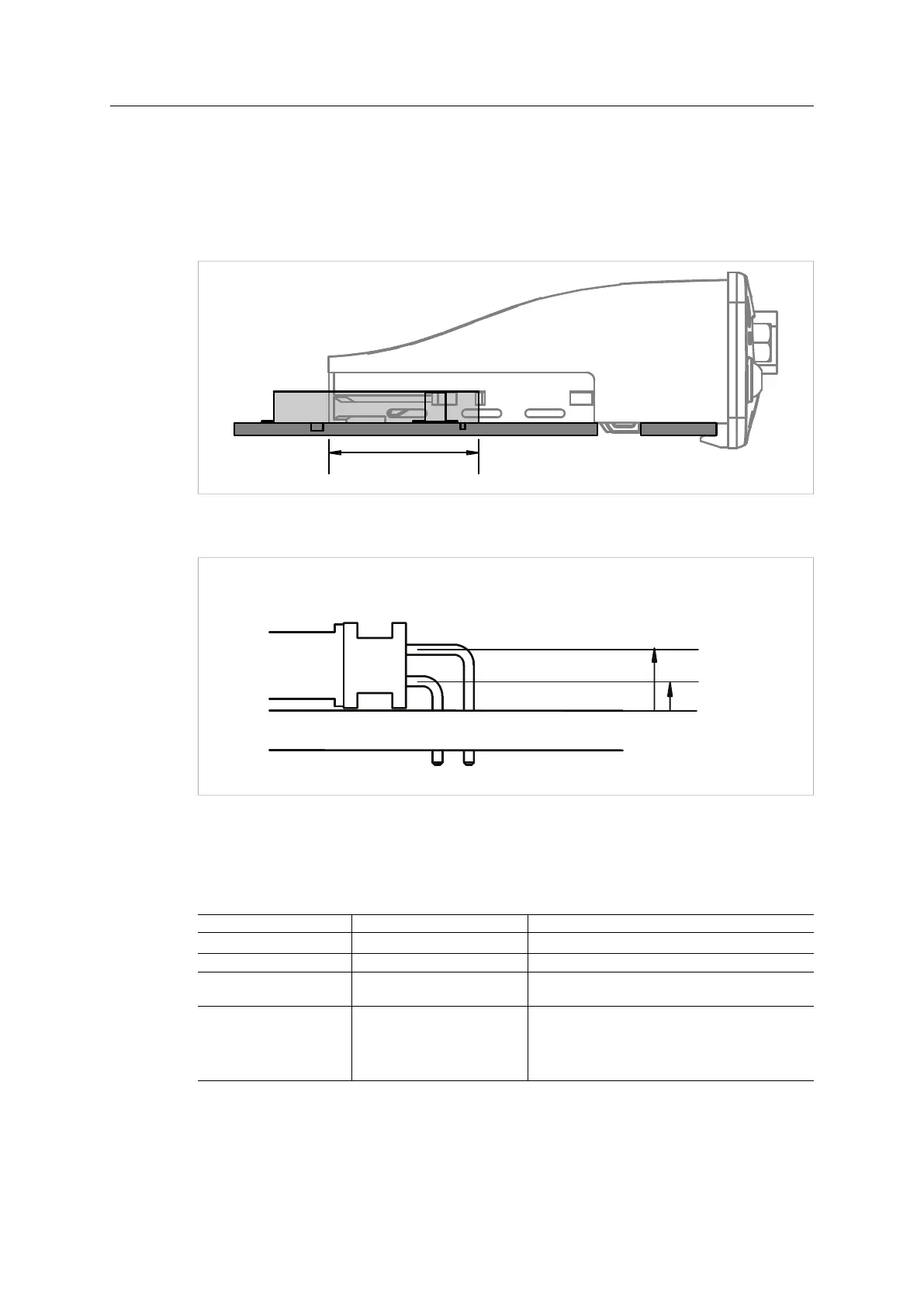

Fig. 46
The distance of the connectors to the PCB has to conform to the picture below:
Fig. 47
It is recommended to use connectors which can be screwed into the host application board, to
minimize mechanical strain on solder joints etc.
The following connectors have been verified for use with the Anybus CompactCom:
Manufacturer Part No. Web
Tyco 1734451-1 www.tycoelectronics.com
AllConnectors 101D-TAAB-R www.allconnectors.de
Suyin 127531MB050XX04NA www.suyin.com, www.suyin-europe.com, www.
suyinusa.com
Harwin M504-8815042 (obsolete)
M504-8825042
www.harwin.com
Note: The dimensions of the holes for the fixing
pins of this connector are 1.8 mm, i.e. slightly
larger than the dimensions given in the figure
above.
Anybus
®
CompactCom
™
M40 Hardware Design Guide HMSI-216-126 EN 2.6
