Apollo Thunderbolt Software Manual Multi-Unit Cascading 200
Distinguishing Multiple Units
Device Color
Each unit in the Devices list is color coded for enhanced identification. These colors are
used in the Meter Bridge and the I/O Matrix Panel when multi-unit cascading to differen-
tiate between devices. The device colors cannot be modified.
Device Name
When using multiple devices of the same type, it may be helpful give each device a
unique Device Name instead of the default names. The Show Device Names setting is
particularly useful with multiple devices.

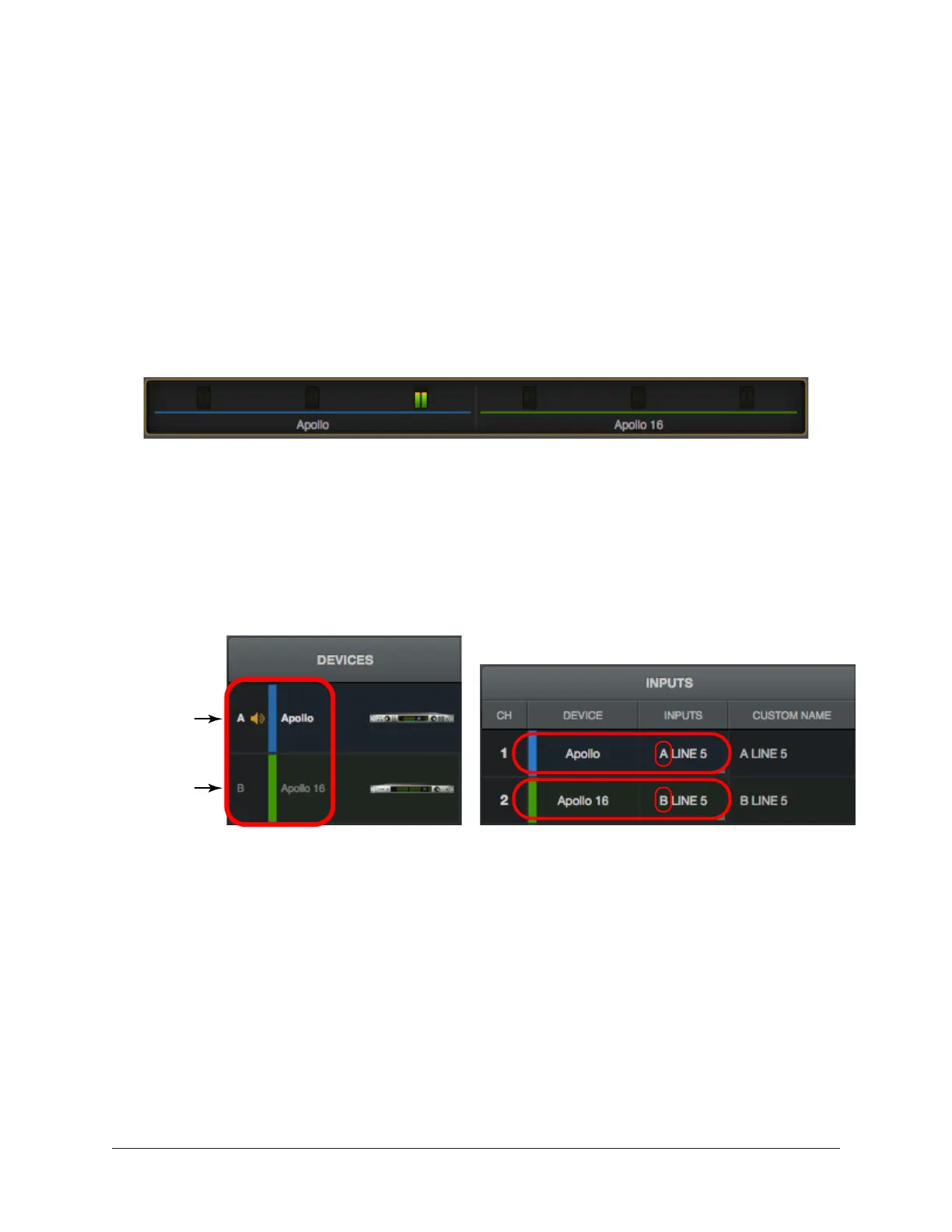

The Meter Bridge with Apollo and Apollo 16, showing unique device colors
Device Letter
Each unit in the Devices list is designated with a sequential letter. These letters are
used in the I/O Matrix Panel when multi-unit cascading to differentiate between Apollo
devices. The device letters cannot be modified.
Device letters & colors correspond in the Hardware panel (left) and I/O Matrix panel (right)
Device Letter A
Device Letter B
