HARDWARE INSTALLATION
44

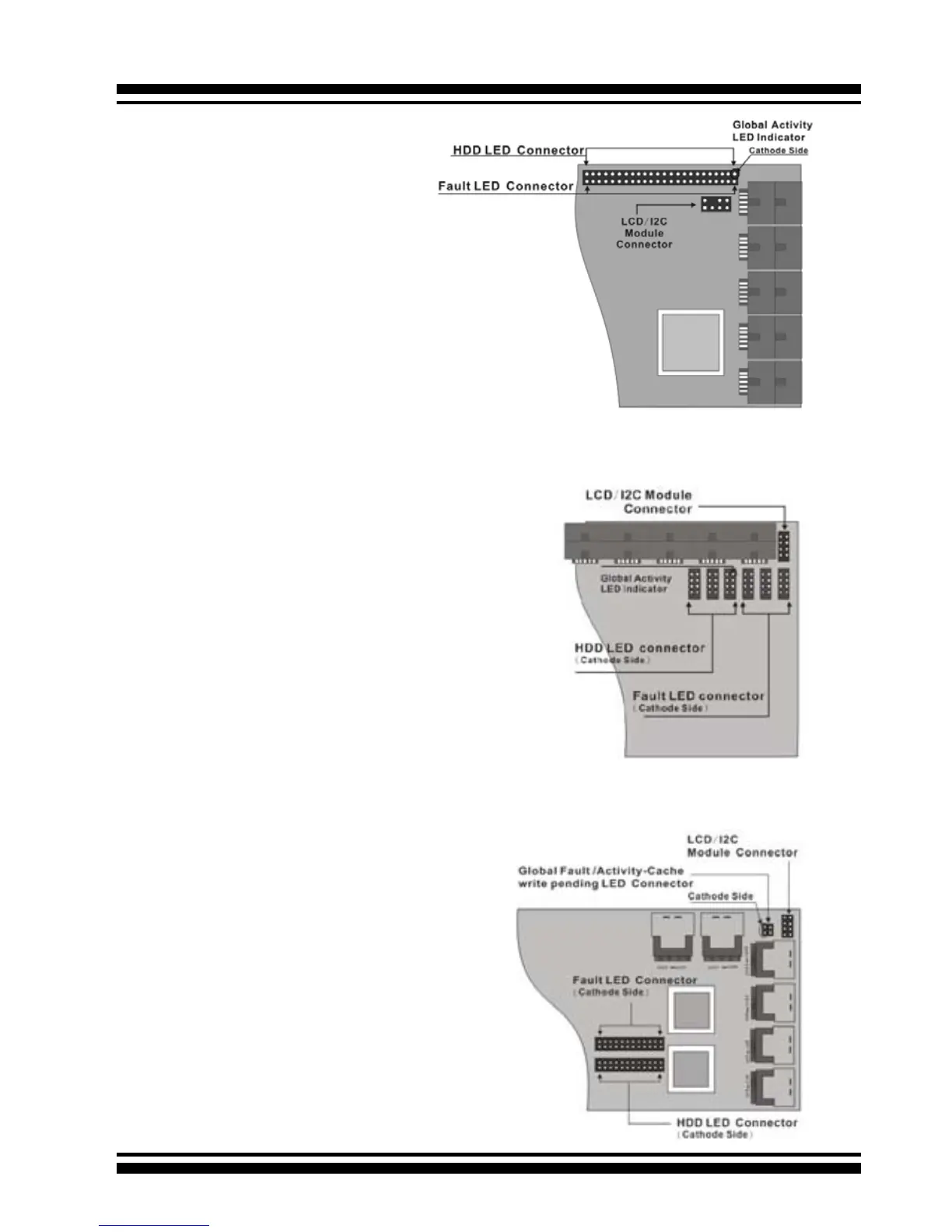

Figure 2-20, ARC-1230ML/
1260ML/1280ML global LED
connection for Computer
Case.
Figure 2-19, ARC-1280
global LED connection for
Computer Case.
Figure 2-18, ARC-1170
global LED connection
for Computer Case.
