HARDWARE INSTALLATION
46

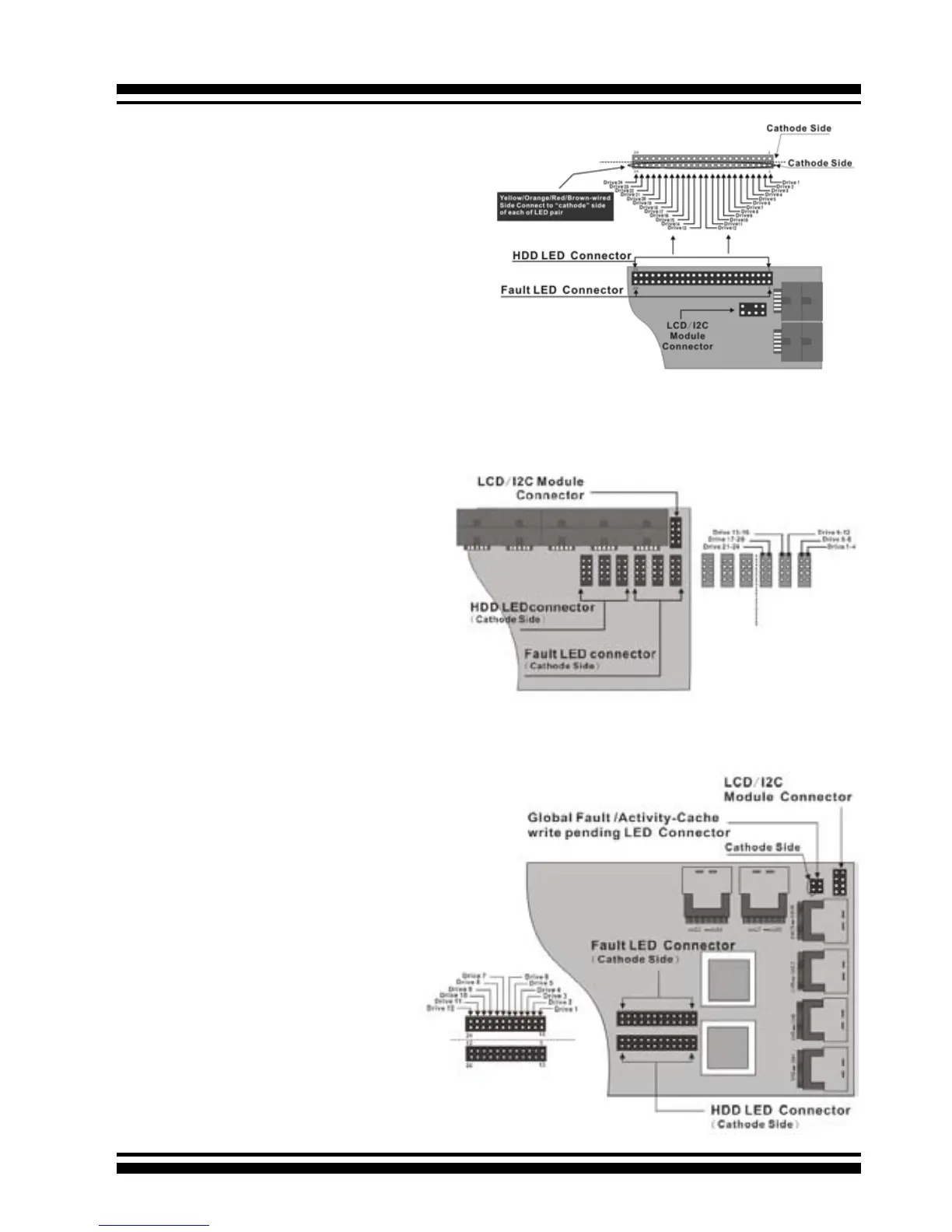

Figure 2-23, ARC-1170
Individual LED indicators
connector, for each chan-
nel drive.
Figure 2-24, ARC-1280
Individual LED indicators
connector, for each chan-
nel drive.
Figure 2-25, ARC-1230ML/
1260ML/1280ML Individual
LED indicators connector, for
each channel drive.
