HARDWARE INSTALLATION
47
C: I
2
C Connector
You can also connect the I
2
C interface to a proprietary SATA
backplane enclosure. This can reduce the number of activity LED
and/or fault LED cables. The I
2
C interface can also cascade to an-
other SATA backplane enclosure for the additional channel status
display.

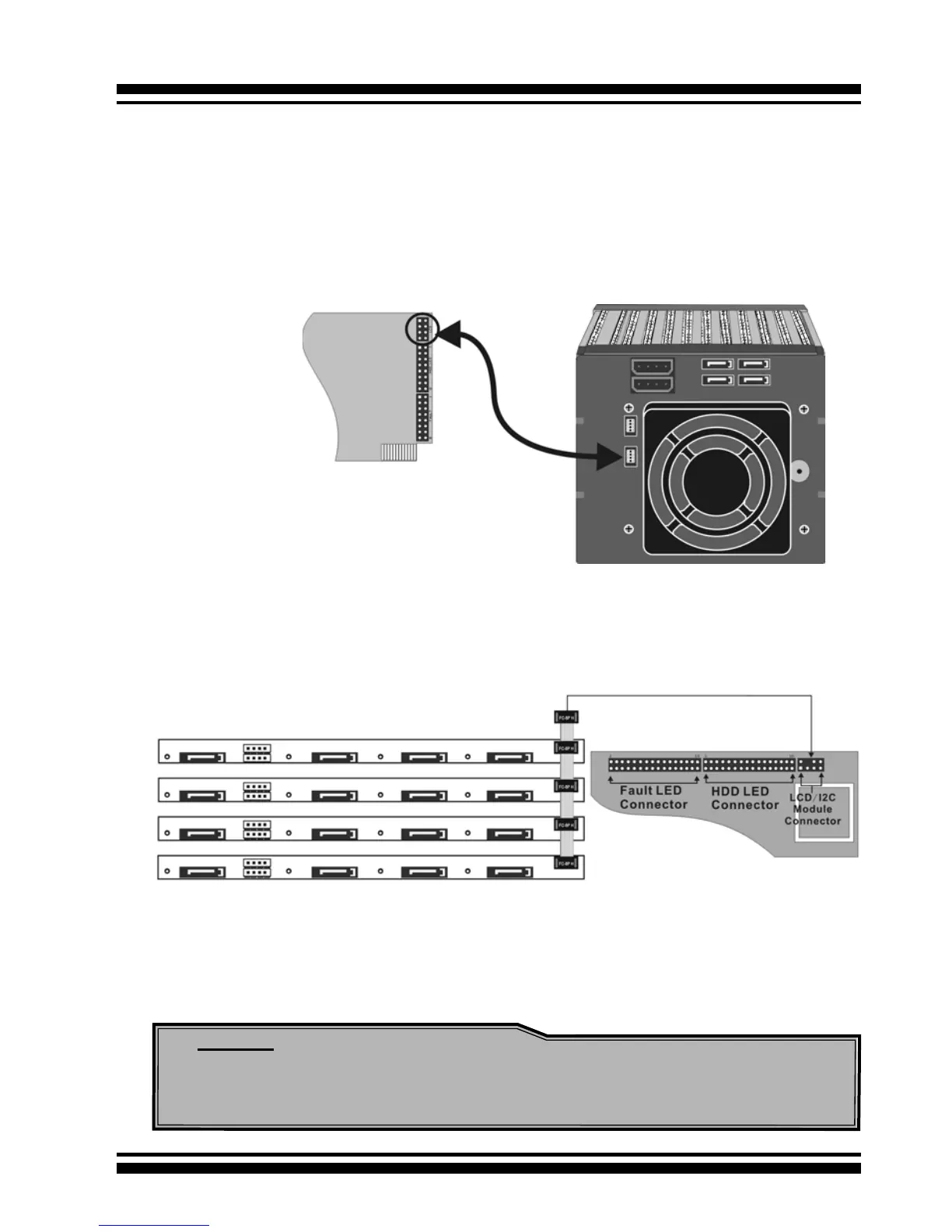

Figure 2-26, Activity/Fault LED I
2
C connector connected between
SATA RAID Controller & SATA HDD Cage backplane.
Figure 2-27, Activity/Fault LED I
2
C connector connected between
SATA RAID Controller & 4 SATA HDD backplane.
Note:
Ci-Design has supported this feature in its 4-port 12-6336-05A
SATA ll backplane.
