28
001-15698-EN rev.12

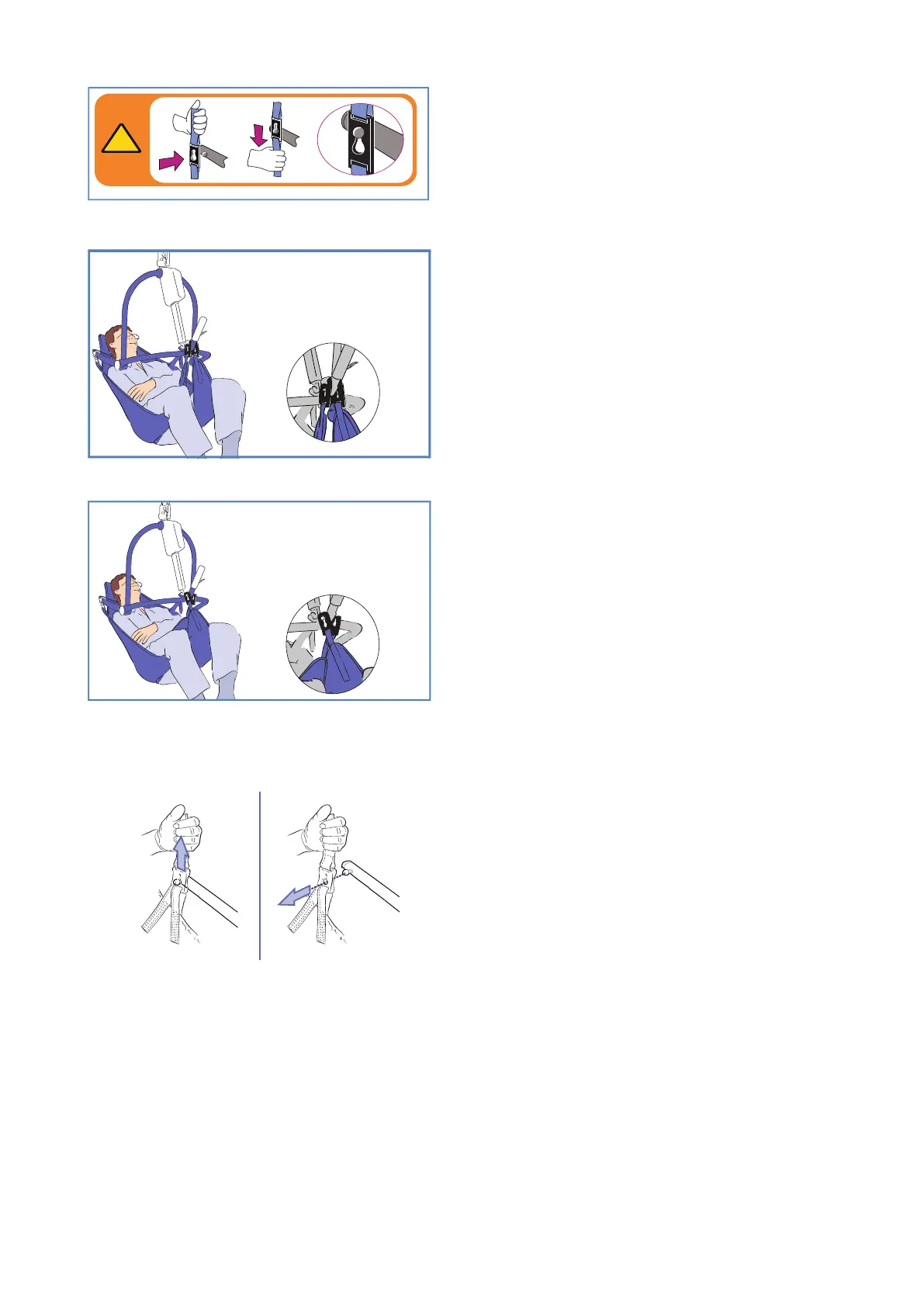

Attaching the Sling to the DPS
Detaching the Sling from the DPS
Method 1 - Straight Attachment
Insert the clip attachment over the lug on the PDPS/DPS.
Secure the clip in place by pulling the sling down so that
the lug is in the top portion of the clip hole.
(The graphic on the left represents the label located on the
spreader bar that recalls this procedure.)
Method 2 - Crossed Legs Attachment
For most patients, the straight attachment of the leg clips is
recommended for use.
If the patient is prone to kicking off the leg clip, the crossed
attachment of the leg clips shall be applied, which will
prohibit the clip from being kicked off.
Pull the sling up to release the lock.
Remove the clip attachment from the lug on the PDPS or
DPS.
Apply the leg clips of
the sling onto the lugs
so that they become
positioned vertically.
Cross the leg pieces of
the sling when attaching
them to the lugs.
To Next Page
