Arjo Maxi Sky 2 - Attaching to Quick Connect; Step-by-step Attachment Guide

23
001-15698-EN rev.12

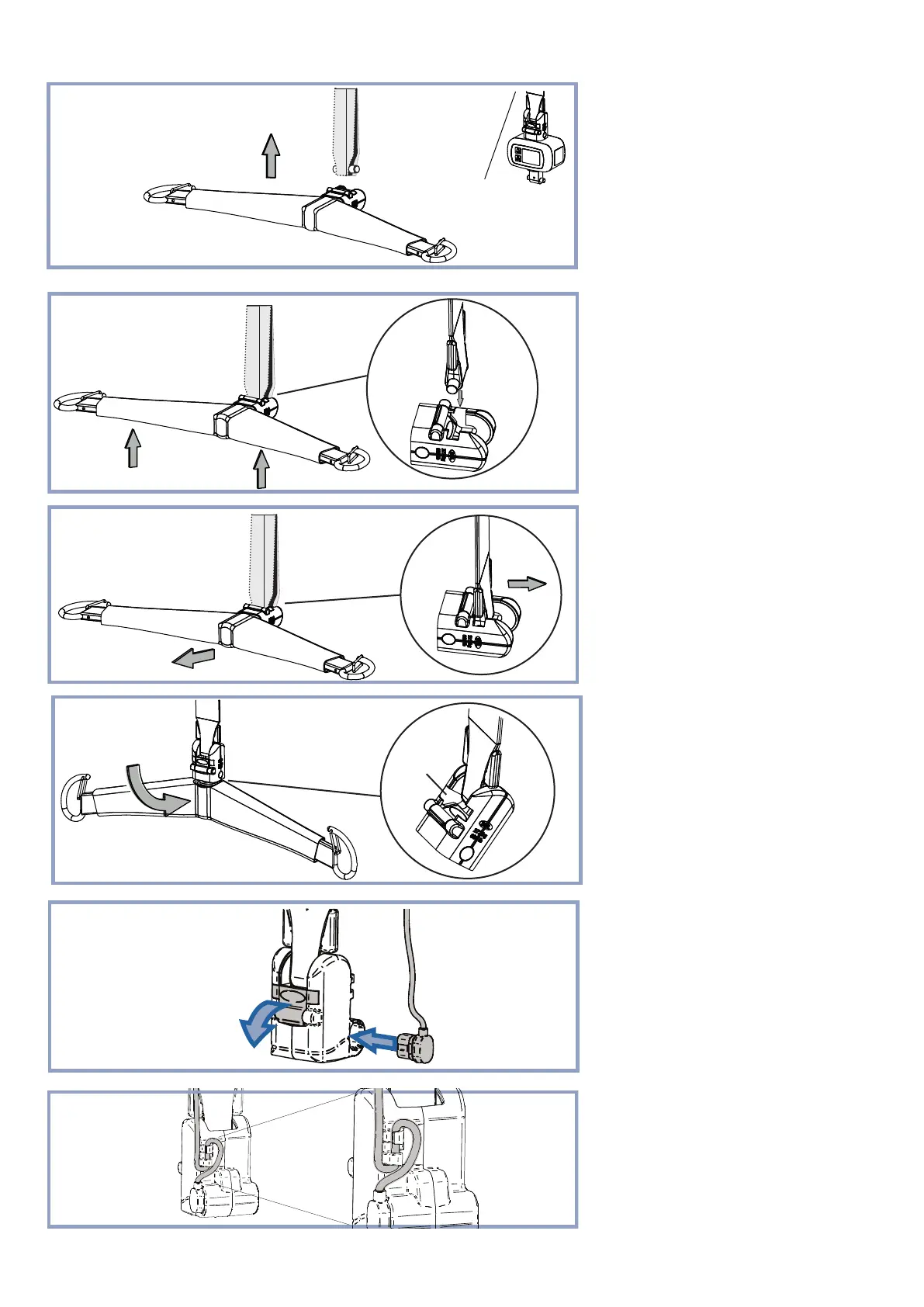

Attach to Quick Connect
Align the spreader bar/scale
Quick-Connect latch to the
hook.
Insert the hook into the Quick-
Connect.
Move the spreader bar/scale
to engage the hook into the
pivot.
Rotate the spreader bar into
position.
Make sure that the Quick
Connect latch is closed.
Do not operate the lift if the
latch remains open.
If using a PDPS, connect the
cable.
The cable is connected
between the lift and the
spreader bar. There is no
connection for the cable on
the scale.
If using a PDPS, secure the
cables on the back of the
Quick Connect housing as
shown.
Latch
