24
001-15698-EN rev.12

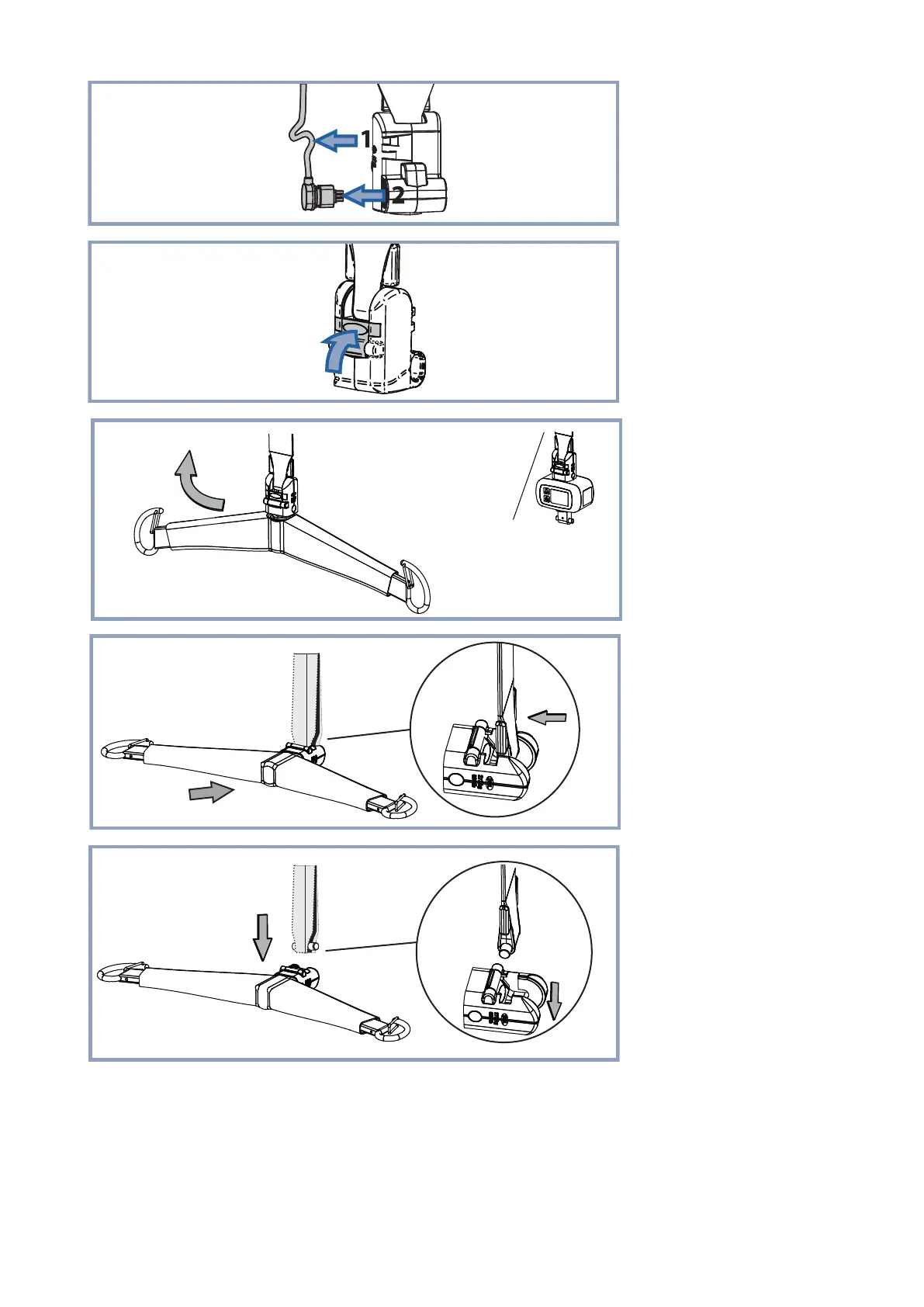

Remove from Quick Connect
If using a PDPS, detach the
cable from the back of the
Quick Connect housing and
then disconnect the cable.
Open the latch that locks the
hook in place by pressing it.
Rotate the spreader bar/scale
up towards the latch,
depending on which one you
want to remove.
Move the spreader bar/ scale,
to disengage the hook away
from the pivot.
Pull the spreader bar/scale
downward, out of the Quick-
Connect.
or
