Battery Information
The batteries for this device are rechargeable lead-
acid batteries. For safe handling and to extend the
battery lifetime, please follow and remember these
instructions. Not following these instructions can cause
short battery life and may, in extreme cases, put user
at risk.
Battery life depends on many factors. These are:
frequency of use, frequency of charging, temperature
of operation, storage and storage time.
Using lead-acid batteries below 5% charge can
damage the battery resulting in shorter battery life. The
5% charge is indicated by the critical battery level
symbol flashing on the display. At this time, the lift will
allow only the down function. Make sure to recharge
the batteries as soon as possible.

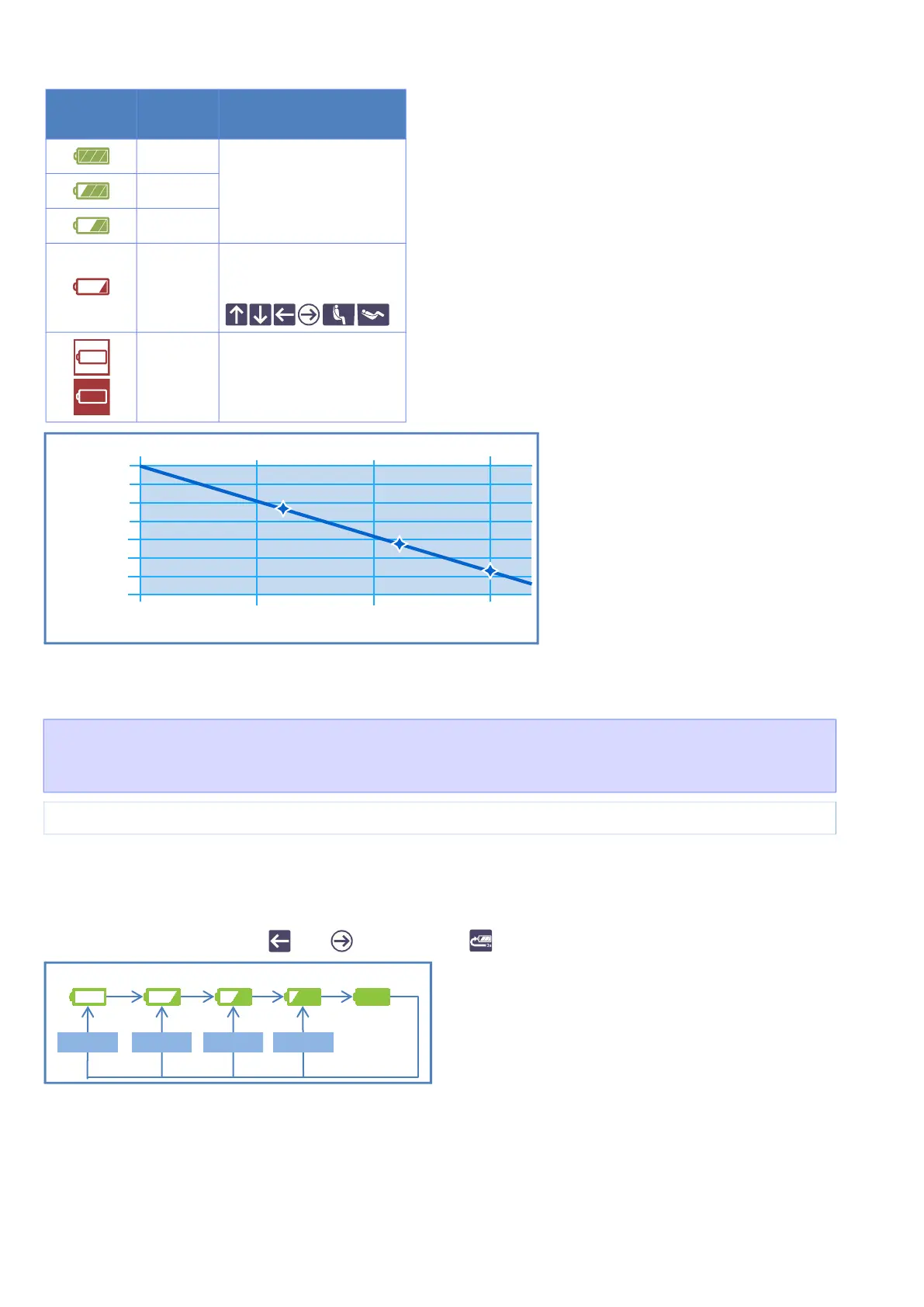

This graph illustrates the relationship
between the number of lifts that can
be performed before reaching battery
critical level, versus the load being
lifted.
Charging the Batteries
Regular Charging System
2-function model: Move the lift under the charging station.
4-function model: Press the and buttons or the button to bring the lift to the charging station.
If the batteries have been completely drained it could take up to 8 hours to completely recharge them.
WARNING: Do not operate the charging station with a damaged cord or if the station has been dropped
or damaged. Do not bend the power cord by force, or place a heavy object on it, since it could damage
the cord and may cause fire or electrical shock.
NOTE: The lift can be operated at any time during the batteries’ charging, which will stop automatically.
Check the LED to confirm that batteries are charging
properly.
• The LED will flash green until batteries are
fully charged.
• The display will cycle through charge level
icons according to actual battery charge level
to show the charging progress.
Display
Battery
Charge
Remarks
100%
Normal operating range75%
50%
25%
Low
Accompanied with a short
beep when one of the
following button is pressed
< 5%
Critical
Icons alternate accompanied
with a two short beep every
10 seconds
175
150
125
100
75
50
25
0
0 90 (200) 181 (400) 272 (600)
120 (265)
200 (440)
272 (600)
Number of Transfers
Battery Autonomy
Load: kg (lb)
