Arjo Maxi Sky 2 - Spreader Bar Attachment; Quick Connect System Overview

22
001-15698-EN rev.12
Spreader Bar and Scale Attachment/Removal
(see page 25 for Basic Ceiling Lifter model’s Spreader Bar and Scale attachment)
Quick Connect Overview (Maxi Sky 2 Ceiling Lifter and Infection Control models)
Quick Connect Lift/Spreader Bar/Scale
The spreader bar and scale features an
attachment which allows the caregiver to
change it in a few steps without using any
tools.
To use the scale, if available, refer to the Scale
IFU (04.CG.00XX).

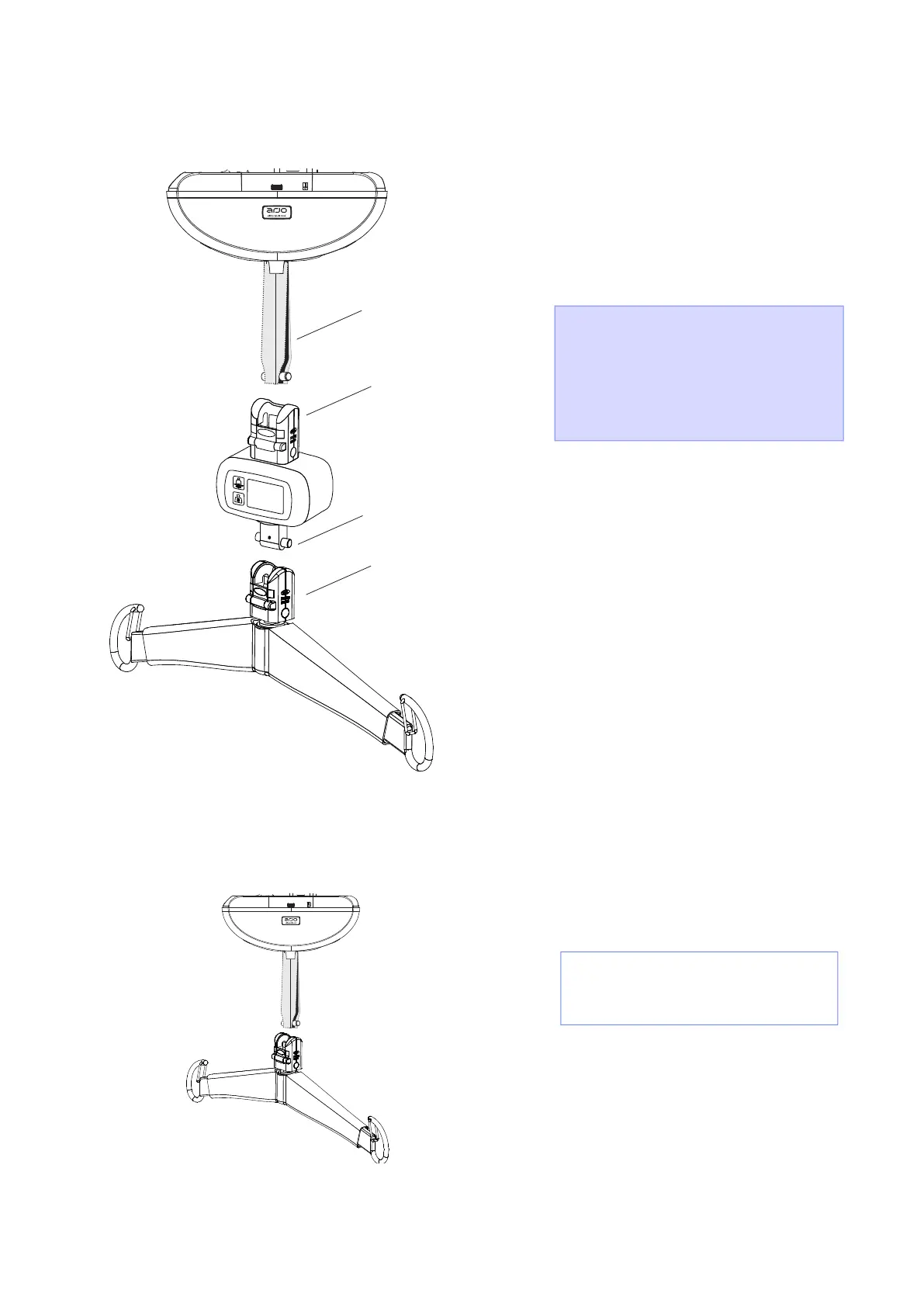

In the steps below the illustrations show an
attachment of lift to scale, scale to spreader
bar and lift to spreader bar.
Lift strap with hook
Quick Connect
Quick Connect
Hook
WARNING: Spreader bars and
scale must only be installed by a
trained person. To prevent the
patient from falling, before every
use, always ensure that the hook is
secured with the attachment and
that the attachment latch is closed.
NOTE: The same Quick Connect/
hook attachment steps apply to all,
see illustrations.
