18
ASS
A ABLOY
Hospital
ity
66 8003 016-3

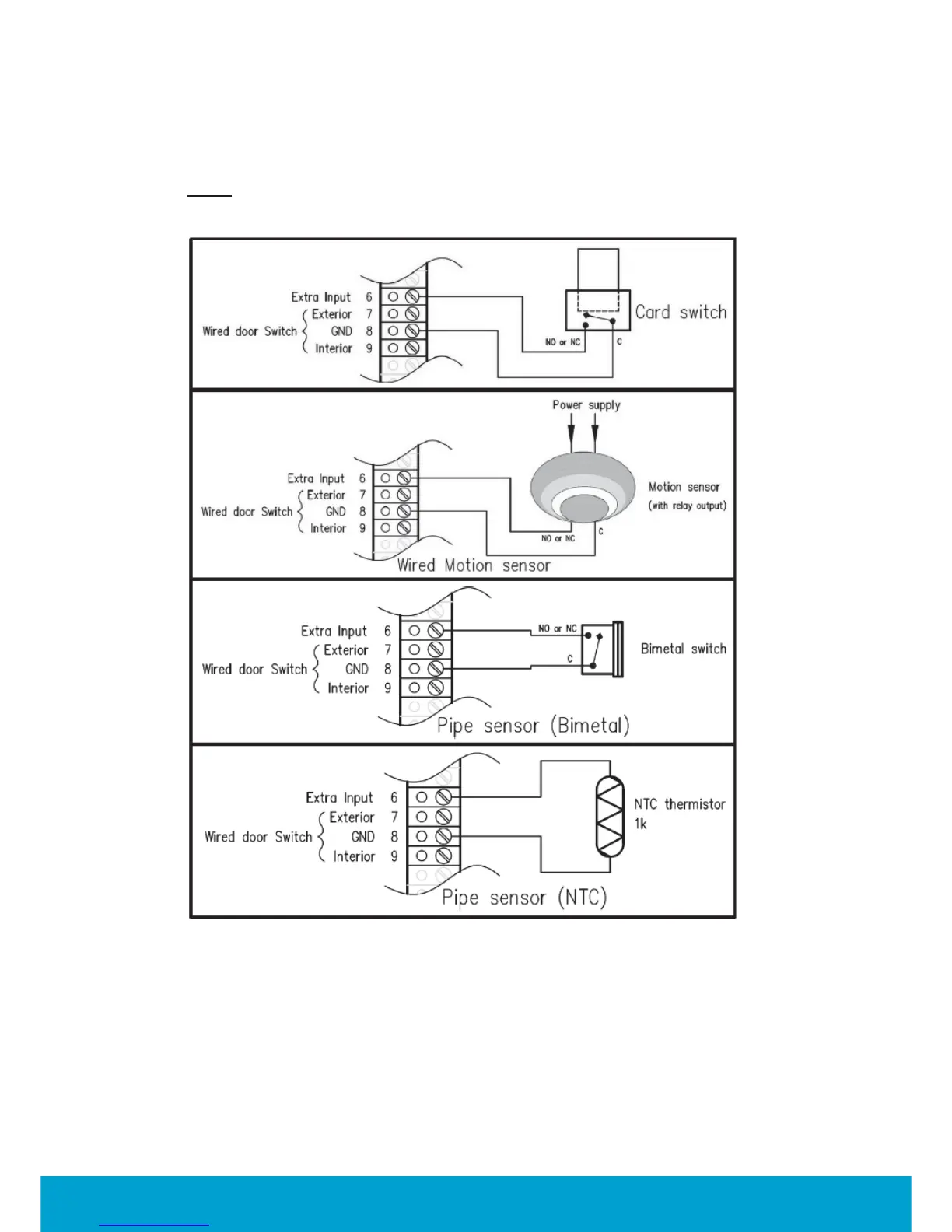

3.1.4.5 Co
nnec
t
ion e
xamples
f
or
extra input
Note:
NO (
no
rm
al
ly
op
en
)/NC (
norm
al
l
y c
lo
s
ed
) i
n the below p
i
ctures refer to the
st
at
e
of
th
e swi
t
ch
wh
e
n
t
h
e
car
d i
s n
o
t i
n
se
r
t
e
d, or
mot
i
o
n
i
s n
o
t
det
e
ct
ed.
Fi
gu
re 17
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
FCC and ISED(IC) Statements
6
FCC Statements
6
ISED (IC) Statements
7
End Product Labeling
7
1 Introduction
8
2 To Install the Software
9
To Install a Visionline Option
9
To Install an Orion EMS Client
9
To Start an Orion EMS Client
9
3 To Install the Orion EMS Devices
10
To Install a Thermostat
10
Step-By-Step Procedure
11
Thermostat Dimensions
12
To Mount a Thermostat
13
To Wire a Thermostat
14
Low Voltage Terminal Block (12 Pole; 3.5Mm Spacing)
15
High Voltage Terminal Block (8 Pole; 5.0Mm Spacing)
16
Proportional Output
17
Switch Output
17
Extra Input
18
Wired Door Switch
19
Outputs N, L, RV, y and W
20
More about Live Output
22
Connection Example for Floating Valve
23
Fan Outputs
23
RF Door Switch Dimensions
24
To Install an RF Door Switch
24
RF Door Switch Magnet Dimensions
25
Wall-Mounted Casing
25
4 To Set up a Thermostat Profile
26
General
26
Hvac
27
Heating
28
2-Pipe Fan Coil with Automatic Switching
28
Proportional
29
Floating Valve
30
2-Pipe Fan Coil with Automatic Switching
31
Cooling
31
Proportional
32
Floating Valve
33
Consumption
34
Fan
34
Limits
35
Timeout
37
Deadband
37
Misc
38
5 To Commission the System
43
To Join the Thermostat to the Network
43
To Commission When Thermostat Controller Is Not Used
45
6 To Check the Installation
47
To Check Diagnostics
47
To Test the In-Room Devices
48
Appendix A: Quick Reference of Technical Data
50
Appendix B: Firmware Upgrade
52
Appendix C: to Set up a Suite
54
Introduction
54
To Set up a Suite with Foyer Door
54
To Enable 'Suite with Foyer Door' in Visionline
55
To Set up the Online Network
55
To Initialize the Master Thermostat with Suite Settings
56
Online Network Tree
57
To Read out the Thermostat Status
57
To Set up a Suite with Two Rooms (Not Foyer)
58
Vingcard Door Locks
58
Visionline Settings
59
To Set up the Online Network
60
Online Network Tree
61
To Initialize the Master Thermostat with Suite Settings
61
Other Guest Door Locks than Vingcard
62
To Set up the Online Network
63
Online Network Tree
64
To Configure the Door Switches
64
To Set up a Suite with One Door Only
65
To Set up the Online Network
66
To Initialize the Thermostat in the First Room of the Suite
67
To Initialize Thermostats with Suite Settings
67
To Initialize the Thermostat in the Second Room of the Suite
68
Online Network Tree
69
To Read out the Thermostat Status
69
More about How the Suite Works
70
Suite Card
70
Suite with Foyer
70
Regular Guest Card
71
Suite with One Door Only
71
Appendix D: Configuration in Offline Scenarios
72
To Add the Lock to the In-Room Network
73
Appendix E: to Install an External Motion Sensor
77
Quick Reference of Technical Data
78
Motion Sensor Dimensions
78
Motion Sensor Locations
79
Appendix F: Read more
80
Revision History
80
