ASSA ABLOY Hospitality

66 8003 016-3

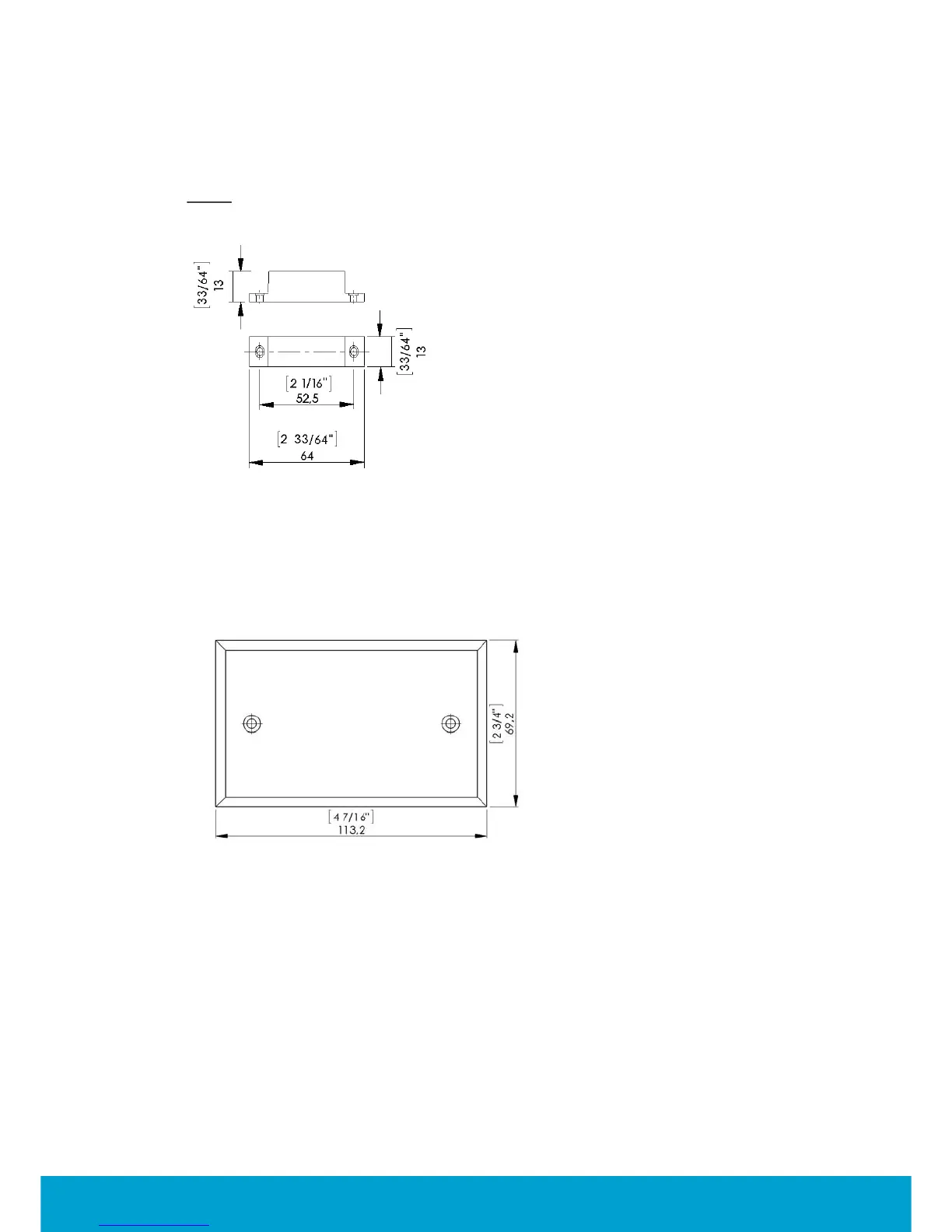

3.2.2 RF door switch magnet dimensions

Note: The magnet must be mounted maximum 10 mm (25/64'') from the

door switch.

Figure 25

3.2.3 Wall-mounted casing

Figure 26
