Appendix E: To install an
external motion sensor
Note: Orion High Voltage Thermostat has a built-in motion sensor, but in some
cases (depending on thermostat location in the room) it can be applicable to also
have an external motion sensor as the one described in this section.
The motion sensor is used to detect motion in the room and send this information
via the ZigBee endnode to the to the room controller (thermostat). The device
is designed to be ceiling or wall mounted and is powered by 3AA batteries.
No physical connections are required; thus making the installation simple.

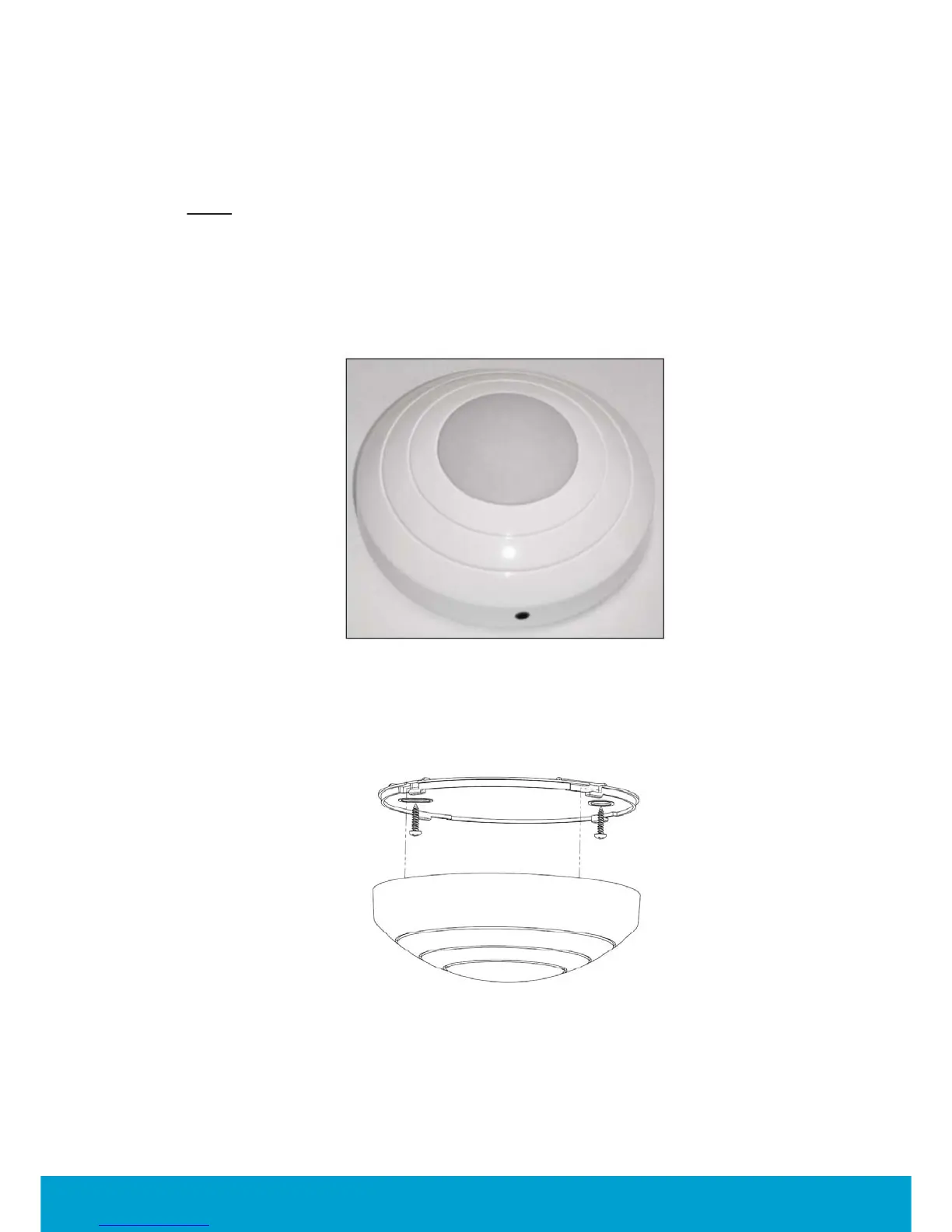

Figure E1
The motion sensor is a battery operated device that may be installed on the ceiling
or wall. The mounting bracket is installed with two screws as shown in Figure E2.
Figure E2
