To enable 'suite with foyer door' in Visionline
Note: All concerned thermostats must be set up according to below, i.e. if the
different thermostats in the suite belong to different thermostat profiles, make
sure that the 'Suite with foyer door' checkbox is marked for each profile.
1. Double click on Thermostat
profiles under the Lists tab.
2. In the Thermostat profiles
dialog: click Add to add a new
thermostat profile, or mark an
existing thermostat profile and
click Properties.
3. In the Thermostat profile
details dialog, choose the Misc
alternative in the left pane.
4. Mark 'Suite with foyer door'.
5. If it is a new thermostat profile,
fill in all necessary information
under the different alternatives
in the left pane of the dialog.
6. Click Save and Close.

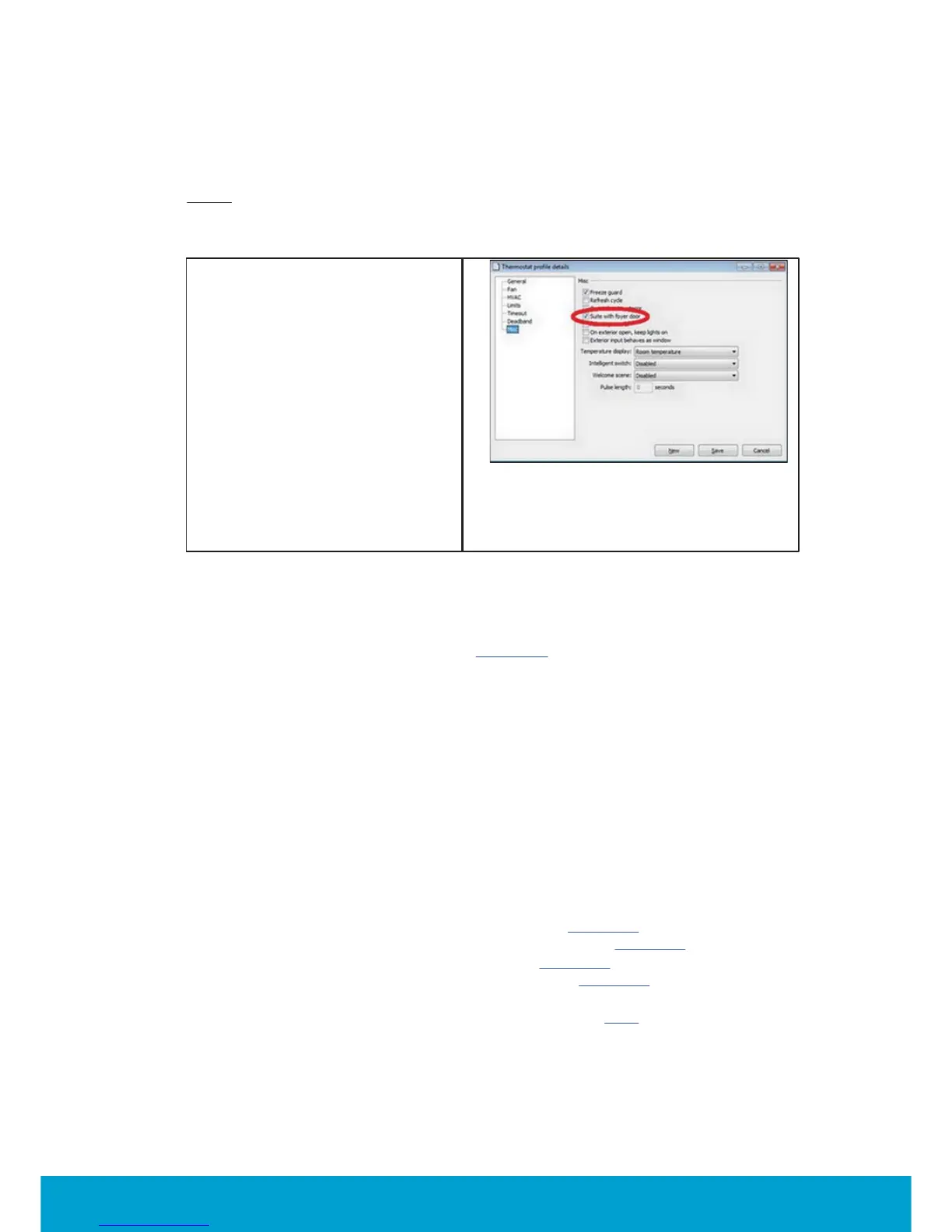

Figure C2
To set up the online network
The online network for the example in Figure C1 looks as in Figure C3. The two
thermostats 102 and 103 must be set up under the same parent in the network,
i.e. be set up in the same PAN (personal area network). To set up the network,
follow the steps below:
1. Double click on SysMon.exe in the Visionline installation folder to open
SysMon (System Monitor) which is used for managing the online network.
2. Log on to SysMon; go to File/Log on and enter user ID and password. At
'Operator card', choose the applicable card encoder and click Enter.
3. Go to View/Online Network to show the Online Network tree.
4. Install the gateway; see User manual Online option for details.
5. Initialize thermostat 102 with 'normal parameter', i.e. all parameters except
for those related to suite. To do this, use the Initialize alternative in Orion
Service but leave the Suite settings empty. See Quick reference guide Orion
Service for details about Initialize.
6. Connect thermostat 102 to the gateway; see chapter 5
for details.
7. Connect motion sensor 102 to thermostat 102; see chapter 5
for details.
8. Connect lock 102 to thermostat 102; see chapter 5
for details.
9. Connect the foyer lock to thermostat 102; see chapter 5
for details.
10.Repeat steps 5-8 for the devices in room 103.
11.Initialize thermostat 102 with suite settings; click here
for details.
12.Read out the thermostat status for thermostats 102 and 103 respectively;
