96

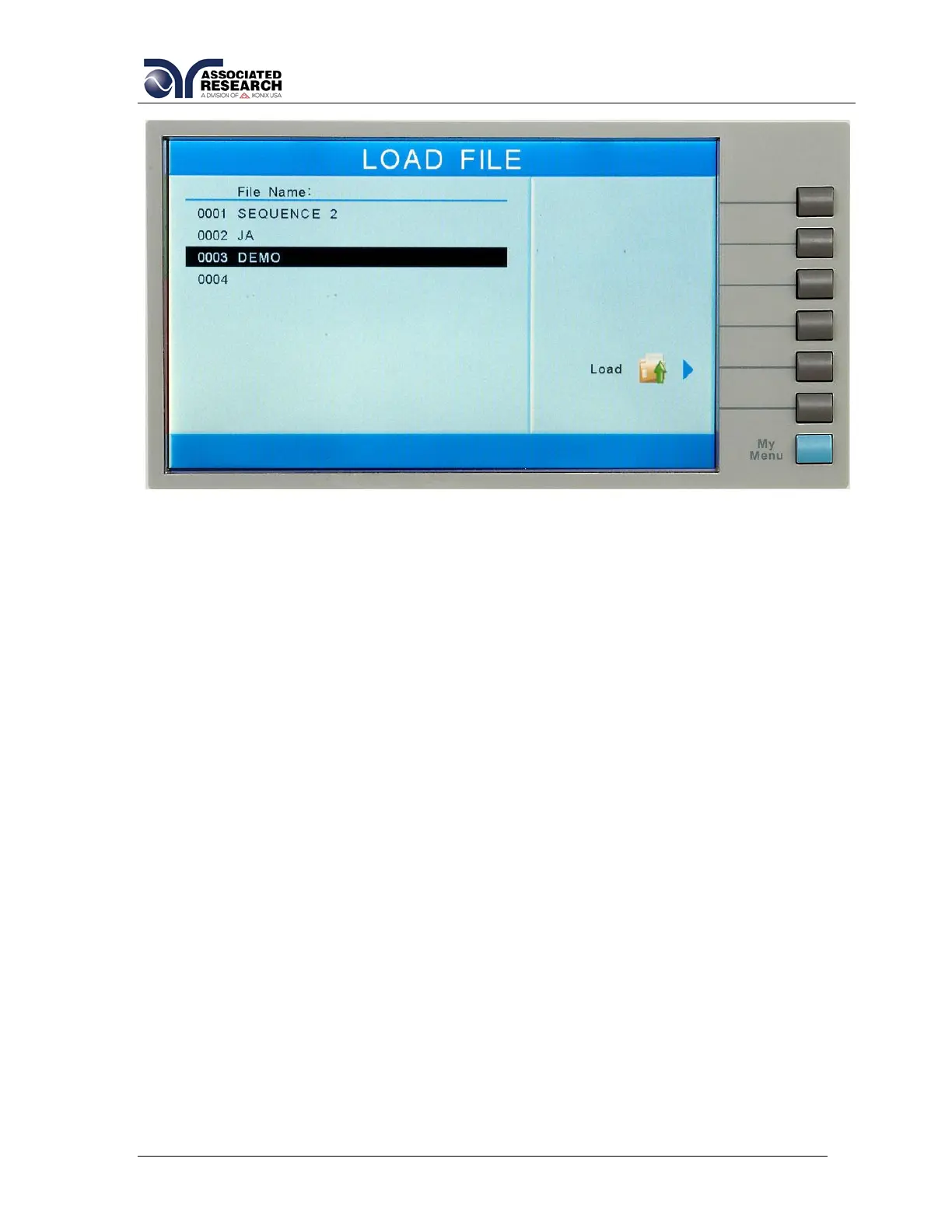

Using the up and down arrow keys, scroll the highlighted area to the File you would
like to load and press the “Load” soft key. The file you selected will now load and the
screen will revert to the Perform Tests screen.
5.2.2. Single Step
Single step is a function that allows you to run one step at a time from a sequence of
tests. At the Perform Tests screen, use the up and down arrow keys or the ENTER
key to scroll the highlighted area to the step you wish to perform. Press the TEST
button and the instrument will initiate the single step and stop when finished without
continuing to the next step.
You may single step through an entire sequence in this way as long as you do not
press RESET. Once RESET is pressed it will return you to the originally selected
step.
Turn the Single Step function ON and OFF by pressing the “Single Step” soft key. If
Security is enabled, single step may not be turned ON and OFF at the Perform Test
screen. The state Single Step is in at the time security is enabled is the state at which
it shall remain.
5.2.3. Fail Stop
Fail Stop is a function that will stop a sequence of tests at the step that fails. If the Fail
Stop is turned ON and a failure occurs (stopping the test), pressing the TEST button
will start the test sequence at the original step. If Fail Stop is turned OFF, the
sequence of tests will continue to the end of the sequence regardless of whether or
not a failure has occurred. If the Fail stop is OFF and a failure occurs during the test
sequence, the RESET button will light and a short alarm will sound but the sequence
will continue to the end. At the end of the test sequence, the RESET button will light
and alarm will sound indicating failure during the sequence. Pressing the RESET
