98

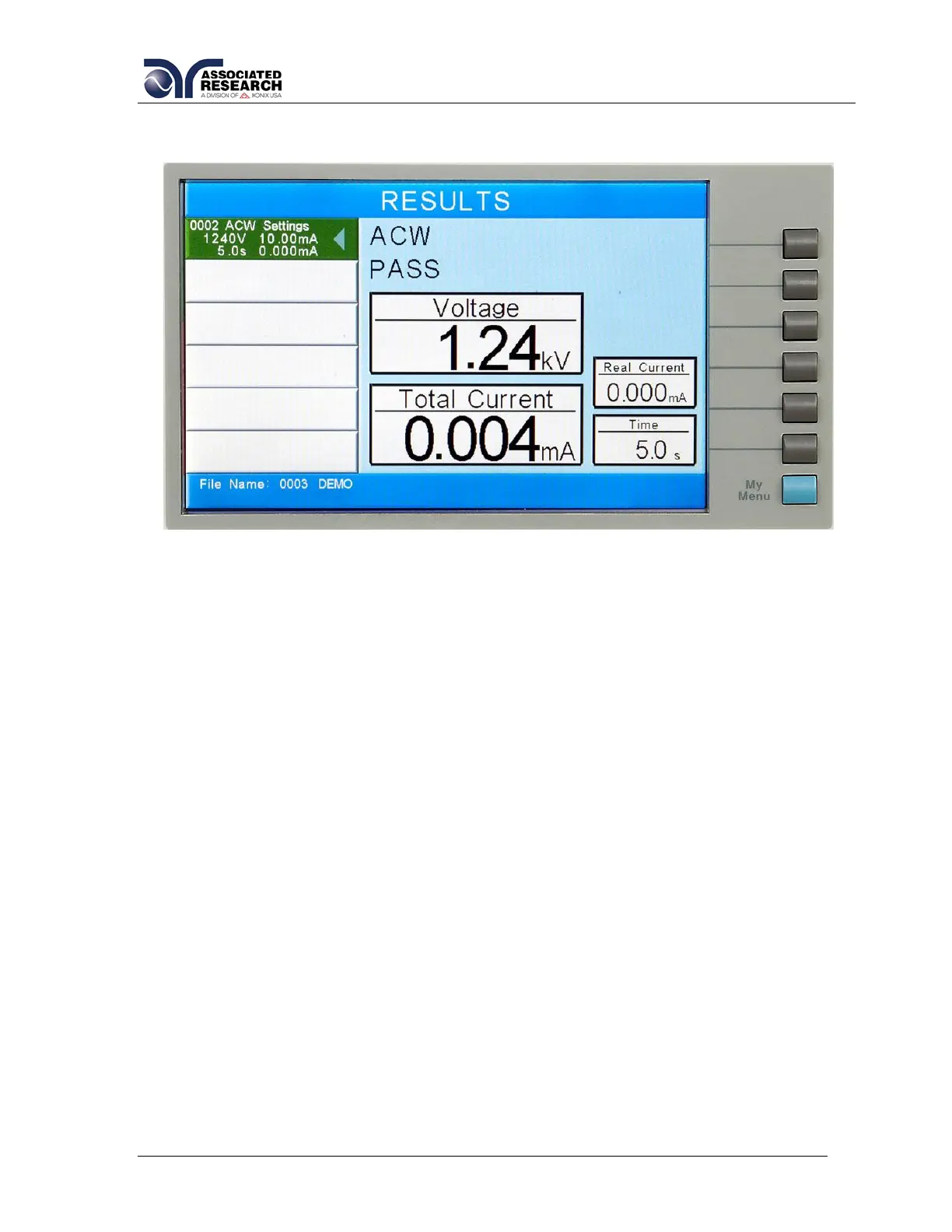

The Results screen will appear as follows:
Using the up and down arrow keys, scroll the highlighted area to the step results you
wish to review. The left and right arrow keys may be used to page through results if
the test contains more than five steps. When the highlighted area is on the step you
are reviewing, the test settings will be displayed in the highlighted area and the results
will appear on the right in the form of metering screens. The result screens will
appear differently for each type of test. The results screens are based on the
Performing Tests metering screens and are identical in appearance except for the
title. Refer to section 5.4. Perform Tests Metering for the meters that will be
displayed.
5.3. Performing a Test
1. As instructed in section 4.2. System Setup, select a memory and step that is
suitable for the test you would like to perform.
2. Attach the appropriate DUT to the instrument (refer to section 5.1. Instrument
Connections).
3. Press the TEST button.
4. The instrument will now perform the test or connected sequence of tests. If the
test is started from any other step than 01, the instrument will return to the
originally selected step when you push RESET or TEST buttons.
