The rear output connections may be used for connecting the adapter box as well.

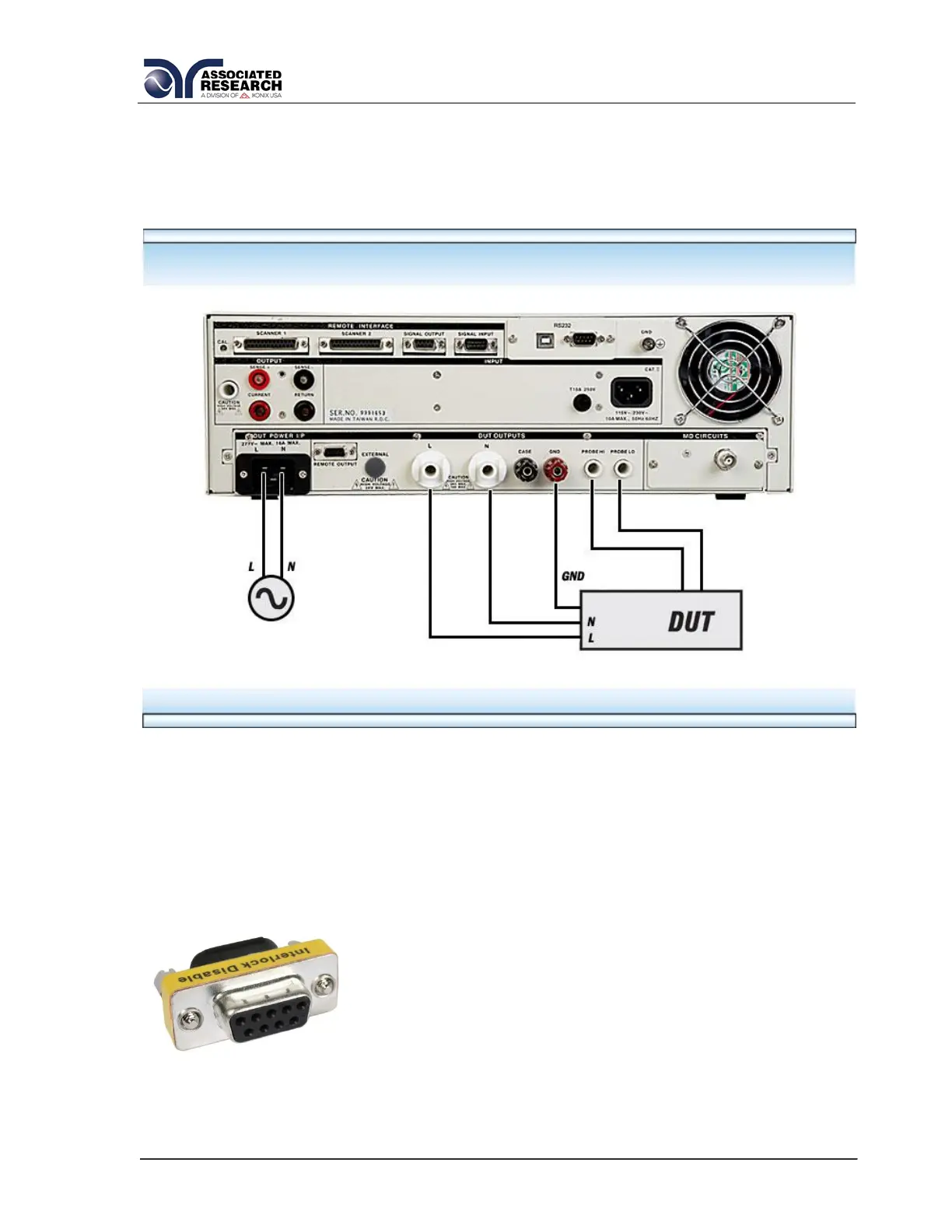

Adaptor Box Connections Model 82x6 and 82x7
5.1.3. Interlock Connector
OMNIA is equipped with a Remote Interlock feature. Remote Interlock utilizes a set of
closed contacts to enable the instrument’s output. If the Remote Interlock contacts are
open the output of the instrument will be disabled. Remote Interlock can also be
referred to as a remote system lockout, utilizing “fail when open” logic. To disable the
Remote Interlock feature connect the Interlock Key into the Signal Input port located
on the back of the tester.
5.1.4. DUT Input Voltage Connections for Models 82x6 and 82x7
An unbalanced single-phase supply must be used with the OMNIA. This means that
there is only one HOT or LINE conductor and the other conductor of the power source
