92
5. OPERATING INSTRUCTIONS
5.1. Instrument Connections
The test leads and the adaptor box may be connected to the receptacles located on
the front or the back of the OMNIA. The HV, Current, Return, Sense+, and Sense- and
receptacles located on the front panel of the OMNIA are wired in parallel with another
set located on the back of the instrument.
5.1.1. Connecting the Test Leads
The instrument comes with all cables necessary for performing a Hipot, Continuity,
Ground Bond, and Insulation Resistance test. Connect the HV lead with the alligator
clip and white insulating tip into the HV receptacle on the OMNIA. Connect the Return
lead with the black alligator clip into the Return receptacle and the Sense- receptacle.
Connect the Ground Bond lead with the red alligator clip into the Current and Sense+
receptacles.
5.1.2. Adapter Box Connections
The adapter box provides an easy way to connect a line-cord terminated DUT to the
OMNIA. The following diagrams show how to connect the adapter box to the OMNIA
8204, 8206 and 8207 to the device under test.

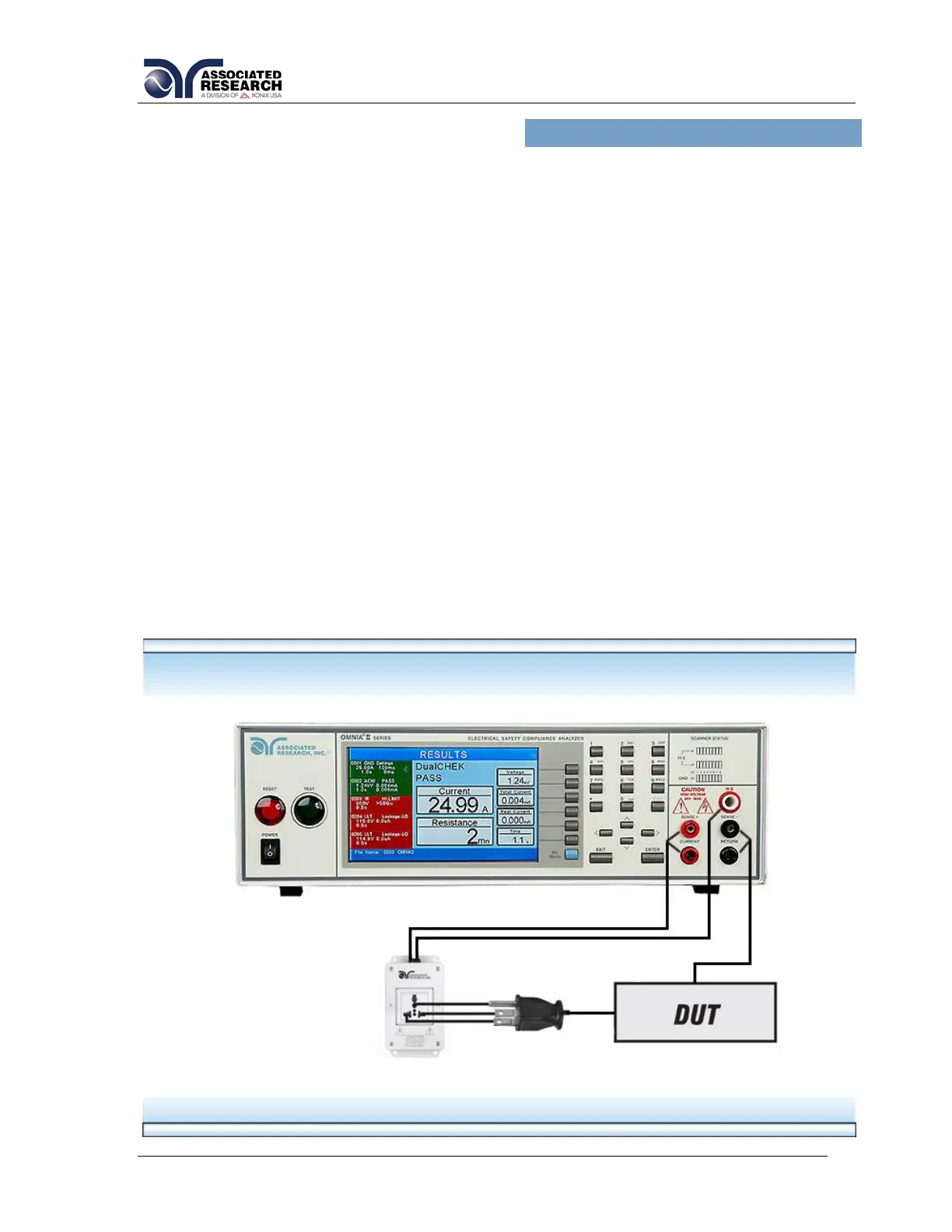

Adapter Box Connections Model 8204
