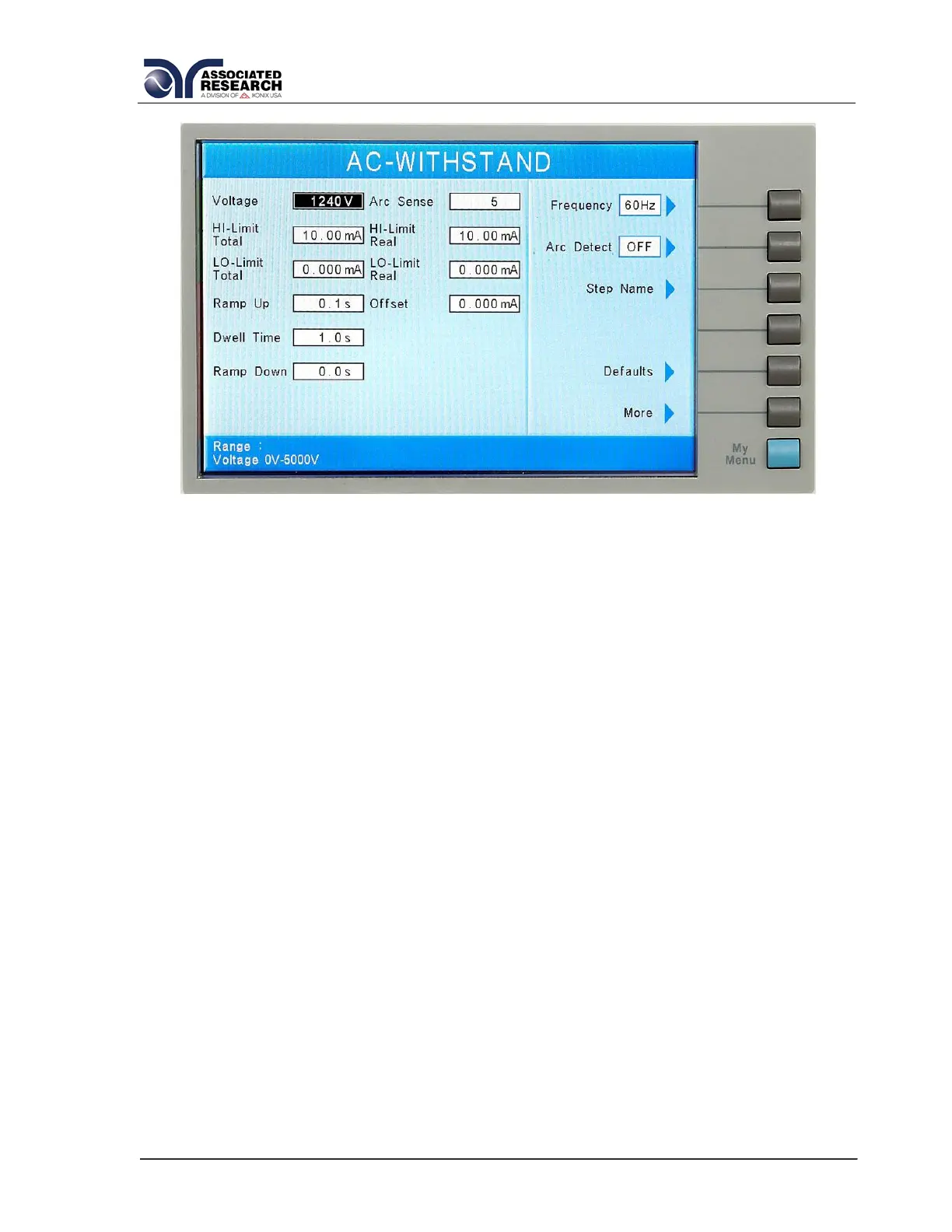

From the AC Withstand Parameter Setting screen the following parameters may be
controlled: Voltage, HI-Limit Total, LO-Limit Total, Ramp Up, Dwell Time, Ramp
Down, Arc Sense, HI-Limit Real, LO-Limit Real, Offset, Frequency, Arc Detect
(ON/OFF), Step Name, Scanner Channel, Defaults and More. Pressing the More soft
key will display the additional parameters Continuity selection (DC continuity or OFF)
and Select Meter.
4.5.2. DC Withstand
From the Setup Tests Selection screen, press the “Add”” soft key. The test types soft
keys will now be displayed. Pressing the “Dielectric Withstand” soft key will display the
“AC-Withstand” and “DC-Withstand” soft keys. Press the “DC-Withstand” soft key The
DC Withstand Parameter Setting screen will now be displayed. The DC Withstand
Parameter Setting screen will appear as follows:
