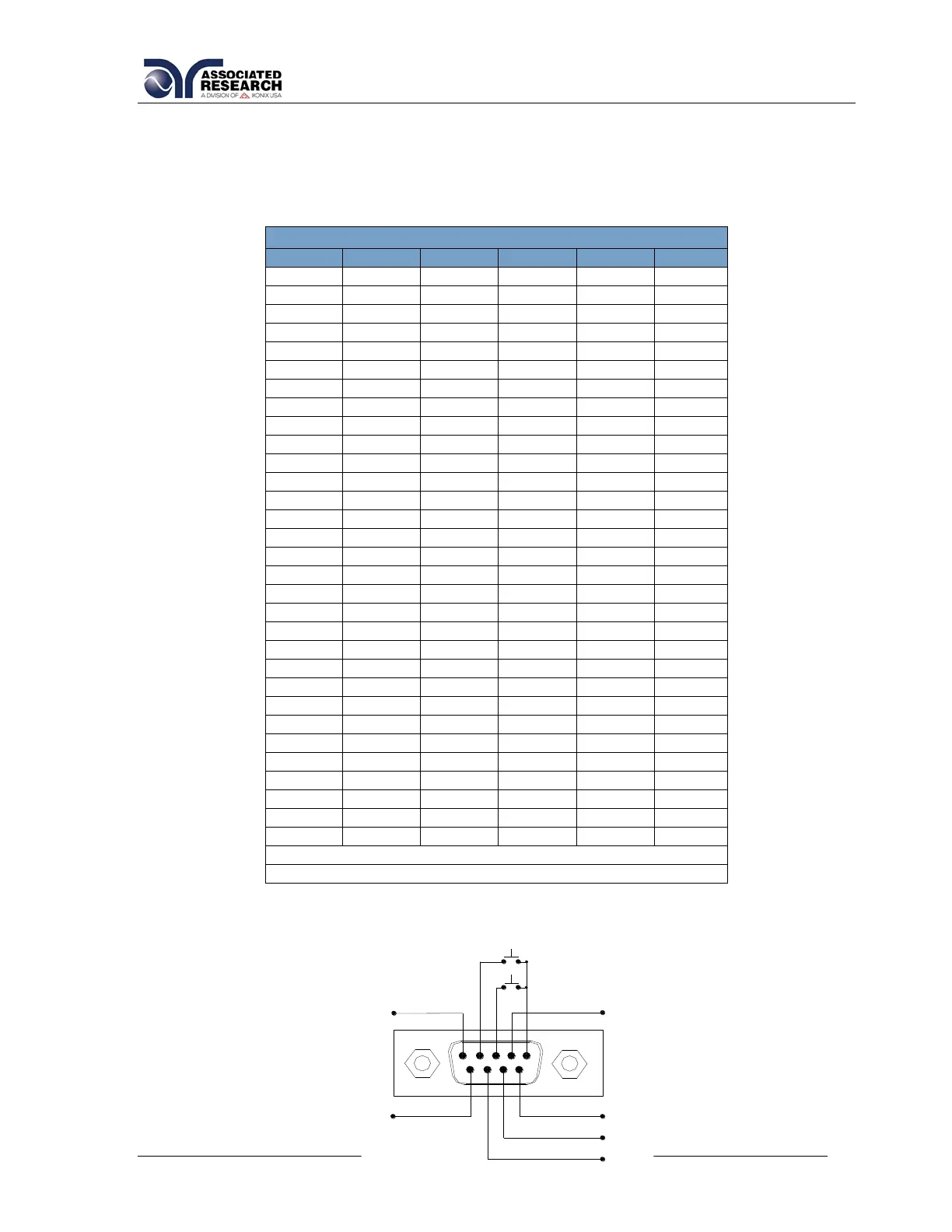

The Remote File Select Truth Table (binary) shows the different combinations of
momentary switch (relay) closures, and which memory programs that will be selected
as the result. It may be necessary to "OR" the momentary switches (relay contacts) to
prevent incorrect program selection due to timing errors.
REMOTE FILE SELECT TRUTH TABLE
BIT 5
BIT 4
BIT 3
BIT 2
BIT 1
FILE #
0
0
0
0
1
01
0
0
0
1
0
02
0
0
0
1
1
03
0
0
1
0
0
04
0
0
1
0
1
05
0
0
1
1
0
06
0
0
1
1
1
07
0
1
0
0
0
08
0
1
0
0
1
09
0
1
0
1
0
10
0
1
0
1
1
11
0
1
1
0
0
12
0
1
1
0
1
13
0
1
1
1
0
14
0
1
1
1
1
15
1
0
0
0
0
16
1
0
0
0
1
17
1
0
0
1
0
18
1
0
0
1
1
19
1
0
1
0
0
20
1
0
1
0
1
21
1
0
1
1
0
22
1
0
1
1
1
23
1
1
0
0
0
24
1
1
0
0
1
25
1
1
0
1
0
26
1
1
0
1
1
27
1
1
1
0
0
28
1
1
1
0
1
29
1
1
1
1
0
30
1
1
1
1
1
31
1= Momentary Contact closure between BIT and COMMON
0= No Contact closure between BIT and COMMON
BIT 2
COMMON
BIT 1
BIT 4
6
9
SIGNAL INPUT
1
BIT 3
5
TEST
RESET
BIT 5
