ASTRO WM-3014 User Manual

14

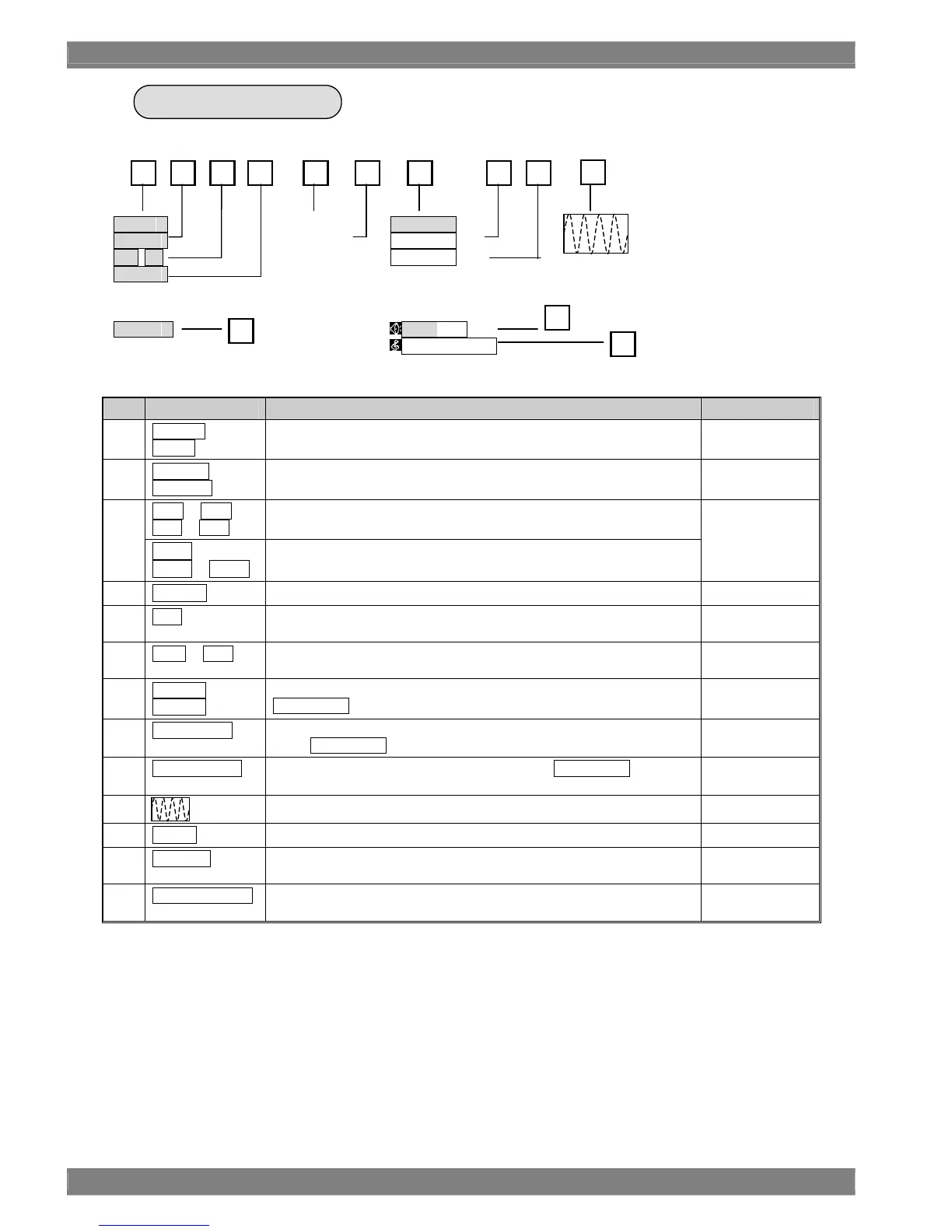

No. Item Description Display modes
1
YPbPr /
GBR
This indicates the waveform display method. W
2
Parade /
Overlay
This indicates the parade display or overlay display for the waveforms. W
1H / 2H /
1F / 2F
This indicates the sweep 1H/2H/1F/2F switching.
3
M×1 /
M×2 / M×4
This indicates the magnification ratio.
W
4
G ×*.**
This indicates the gain magnification rate. W
5
dT
This indicates the H cursor difference. It appears when the H cursor is
set to ON.
W
6
d% / dV
This indicates the V cursor difference. It appears when the V cursor is
set to ON.
W
7
Field 1 /
Field 2
This indicates the currently displayed field. It appears when
LineSelect is set to ON.
W, V
8
Line (Field)
This indicates the line number in the currently selected field. It appears
when LineSelect is set to ON.
W, V
9
Line (Frame) This indicates the line number. It appears when LineSelect is set to
ON.
W, V
10
This indicates the position of the displayed waveform. W
11
× *.**
This indicates the gain magnification rate. V, A
12
Volume
This indicates the level of the volume which is output from the
headphone jack.
A
13
L: xCH R: xCH
This indicates the embedded audio channels through which the sound is
output from the headphone jack.
A
Abbreviations used in display mode column:
P1
…
PICTURE1 mode, P2
…
PICTURE2 mode, P3
…
PICTURE3 mode, W
…
WAVEFORM mode, V
…
VECTOR mode, ML
…
MULTI mode,
ST
…
STATUS mode, A
…
AUDIO mode, PRE
…
PRESET mode, MN
…
MENU mode
YPbPr
Parade
1H Mx1
Gx1.00
dT8.00μs
d%20.00%
Field1
Line(Field)0001
Line(Frame)0001
7
10
41 32 5 6 98
Volume128
L:1CHR:2CH
×1.00
11
12
13
Other modes
