Rubber Track Loader
4. Machine Controls and Instrumentation
4-2
Gauge/Warning Light Panel

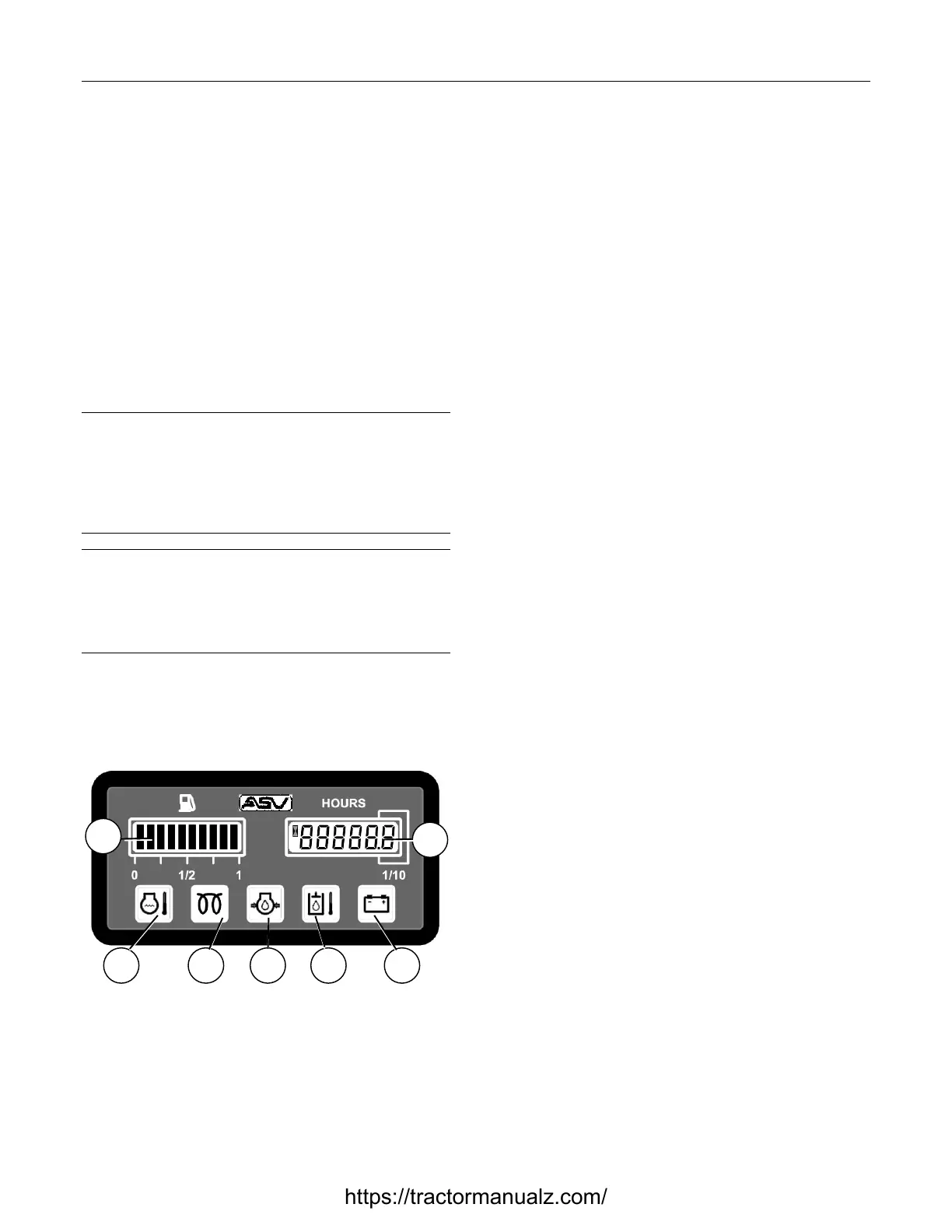

The gauge/warning light panel (Figure 4-3) includes
the following indicator lights.
(1) Engine coolant temperature warning
(2) Glow plug operation
(3) Engine oil pressure warning
(4) Hydraulic oil temperature warning
(5) Battery low-voltage warning
(6) Fuel gauge
(7) Service hour meter
NOTICE
If the engine coolant temperature, engine oil pressure or
hydraulic oil temperature lights illuminate during normal
machine operation, shut the machine down immediately.
Diagnose the problem and make needed repairs before
continuing to operate.
NOTICE
If the battery low-voltage light illuminates, drive the ma-
chine to a suitable location and shut the engine off. Diag-
nose the problem and make needed repairs before
continuing to operate.
The glow plug operation light illuminates only when
the key switch is turned to engine pre-heat, showing
normal operation.
Figure 4-3 4-003
7
6
1 2 5 4 3
