Rubber Track Loader
8. Hydraulic Reservoir Disassembly and Assembly
8-5
Required Tools
Combination Wrench
Suction Screen Removal
! WARNING !
Hot oil can cause personal injury. Make sure the oil is
cool before removing any components or lines.
Remove the oil filler cap only when the engine is
stopped and the filler cap is cool enough to touch with
your bare hand.
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Note: It is normally not necessary to replace the suction
screen unless there has been a catastrophic failure and
there is debris in the reservoir.
1. Drain the hydraulic fluid. Refer to Chapter 16.
Hydraulic Fluid and Filter Change.
2. Remove the access cover assembly. Refer to
Chapter 8. Access Cover Assembly Removal.

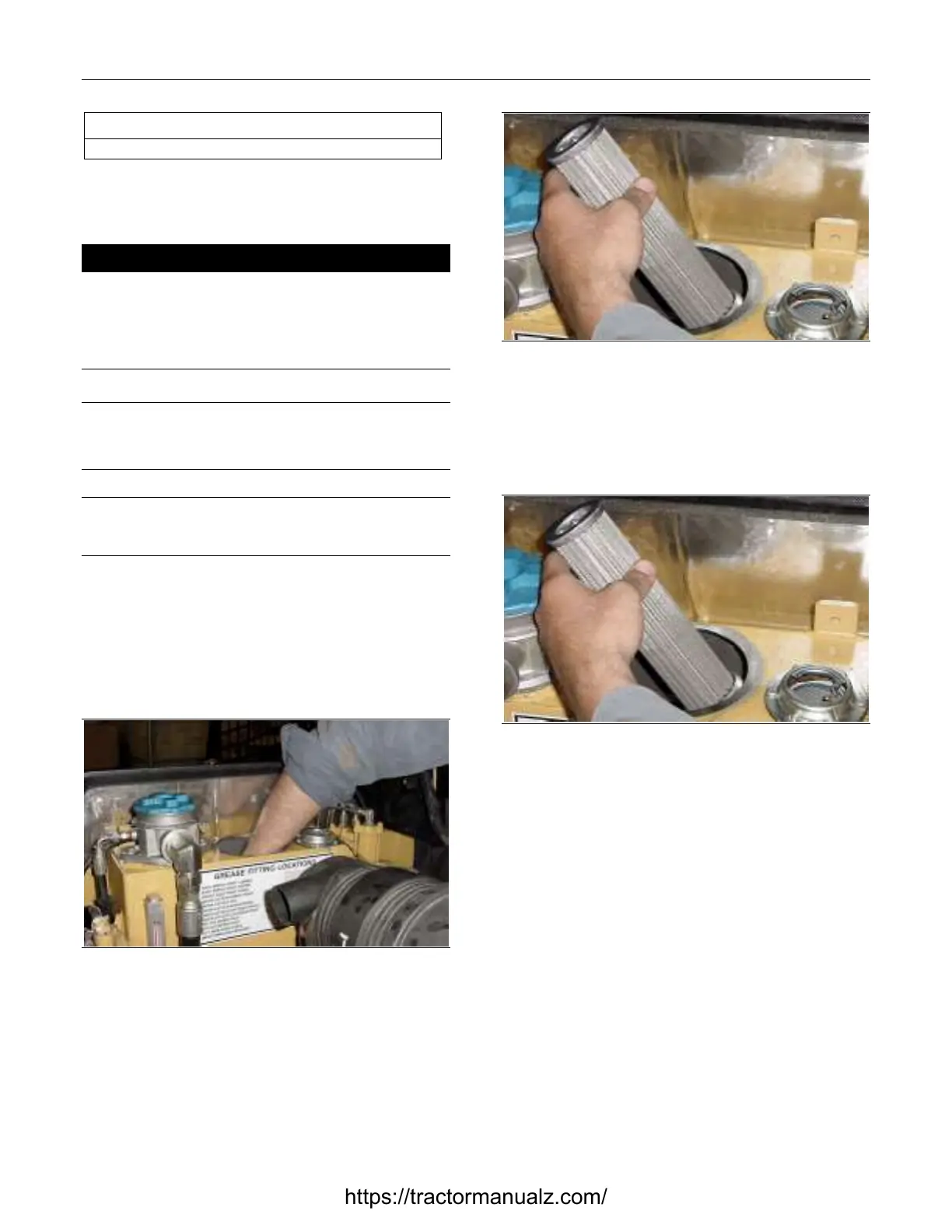

Figure 8-12 8-014
3. With a magnet centered in an absorbent rag,
thoroughly clean the interior of the reservoir to
prevent any debris from entering the system
when you remove the suction filter.
Figure 8-13 8-015
4. Reach inside the reservoir and unscrew the
suction screen. Remove the suction screen from
the reservoir.
Suction Screen Installation
Figure 8-14 8-015
1. Insert the suction screen in the reservoir through
the access cover opening.
2. Reach inside the reservoir and screw the suction
screen into the bottom of the reservoir.
3. Install the access cover assembly. Refer to
Chapter 8. Access Cover Assembly Installation.
4. Add manufacturer-approved hydraulic fluid.
