Rubber Track Loader
9. Loader/Transmission Controls Disassembly and Assembly
9-3

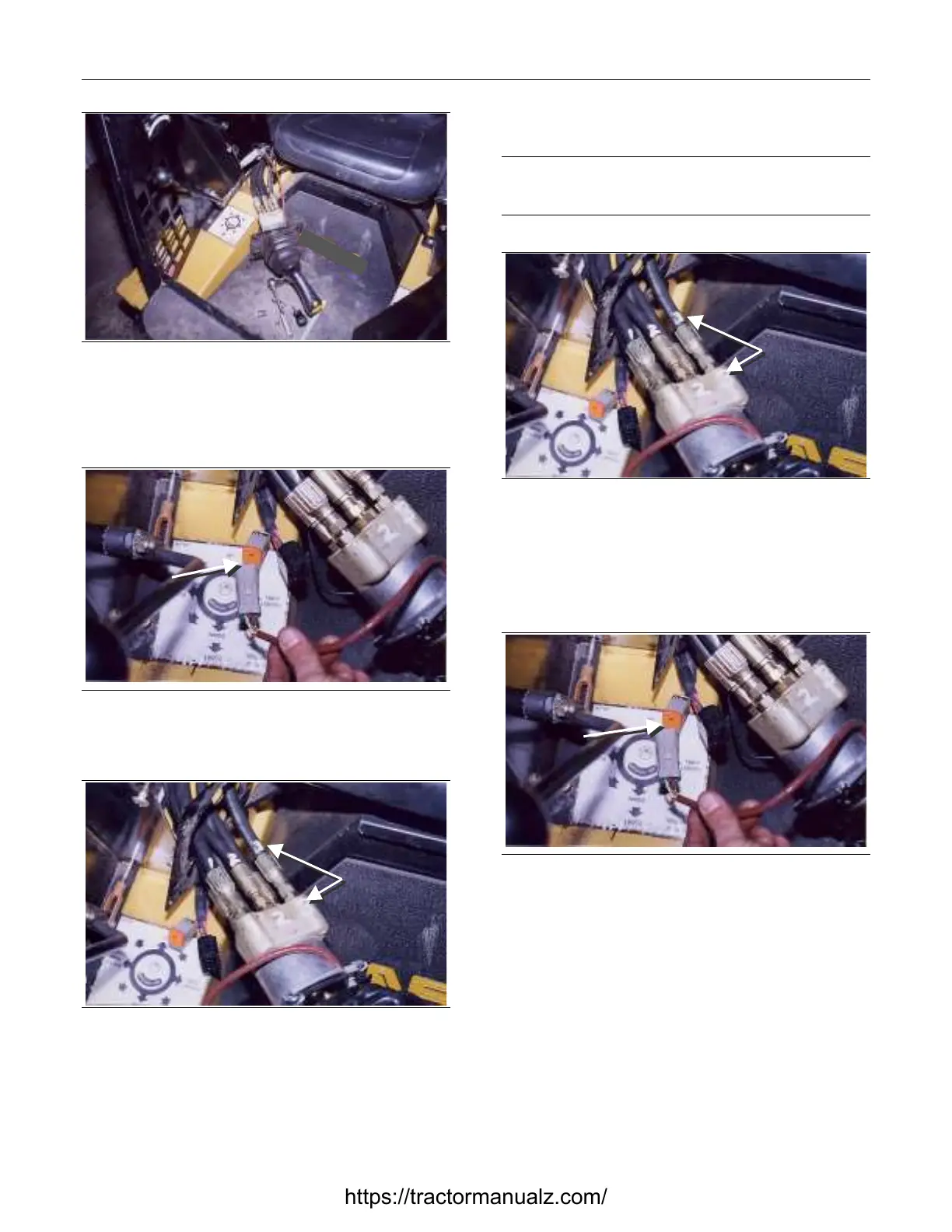

Figure 9-4 9-004
7. Pull the joystick out of the console. The mount-
ing plate, wiring harness and hoses will stay
connected to the joystick.
Disconnect
the Wiring
Harness
Figure 9-5 9-005
8. Disconnect the joystick wiring harness.
Hose and
Control
Labels
Figure 9-6 9-006
9. The hoses and the control are labeled at the
factory. Make sure the labels are still legible.
10. Remove the hoses.
Joystick Installation
Note: Since the procedures for installing both joystick con-
trols are identical, only the right control joystick procedure
is described below.
Hose and
Control
Labels
Figure 9-7 9-006
1. Match the factory labels on the hoses and the
control.
2. Connect the hoses.
Connect the
Wiring
Harness
Figure 9-8 9-005
3. Connect the joystick wiring harness.
