7. Radiator/Oil Cooler Disassembly and Assembly
7-4

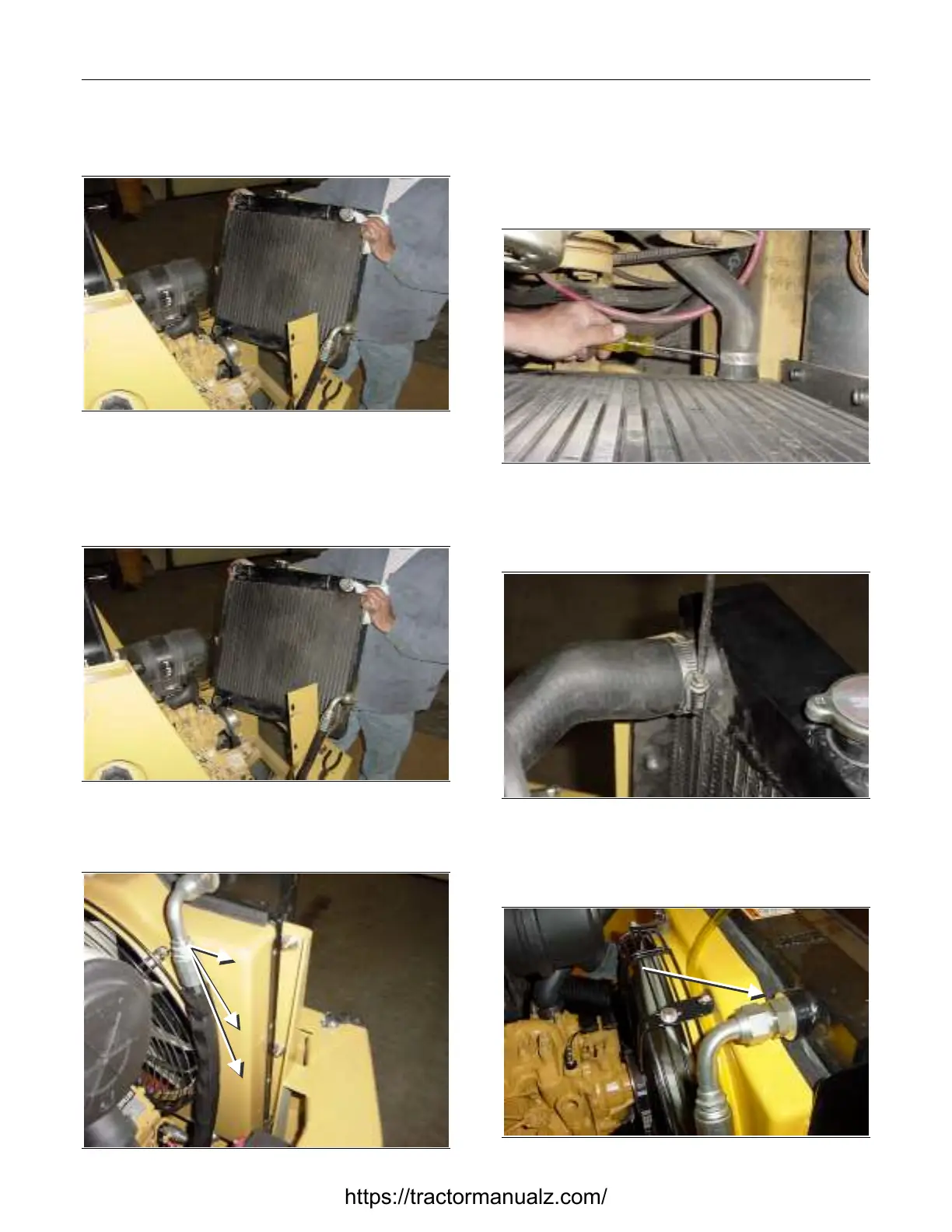

7. Remove the three mounting bolts on each side
of the radiator/cooler.
Figure 7-8 7-013
8. Remove the radiator/cooler from the engine
compartment.
Radiator/Cooler Installation
Figure 7-9 7-013
1. Install the engine shroud, and position the radia-
tor/cooler in the engine compartment.
Figure 7-10 7-003
2. With the radiator/cooler in position, install the
three mounting bolts on each side of the radia-
tor/cooler.
Figure 7-11 7-012
3. Remove the hose and fitting caps and install the
lower hose on the radiator section.
Figure 7-12 7-011
4. Remove the hose and fitting caps and install the
upper hose on the radiator section.
Install
Bolts
Install
Hose
