Rubber Track Loader
11. Undercarriage Disassembly and Assembly
11-4

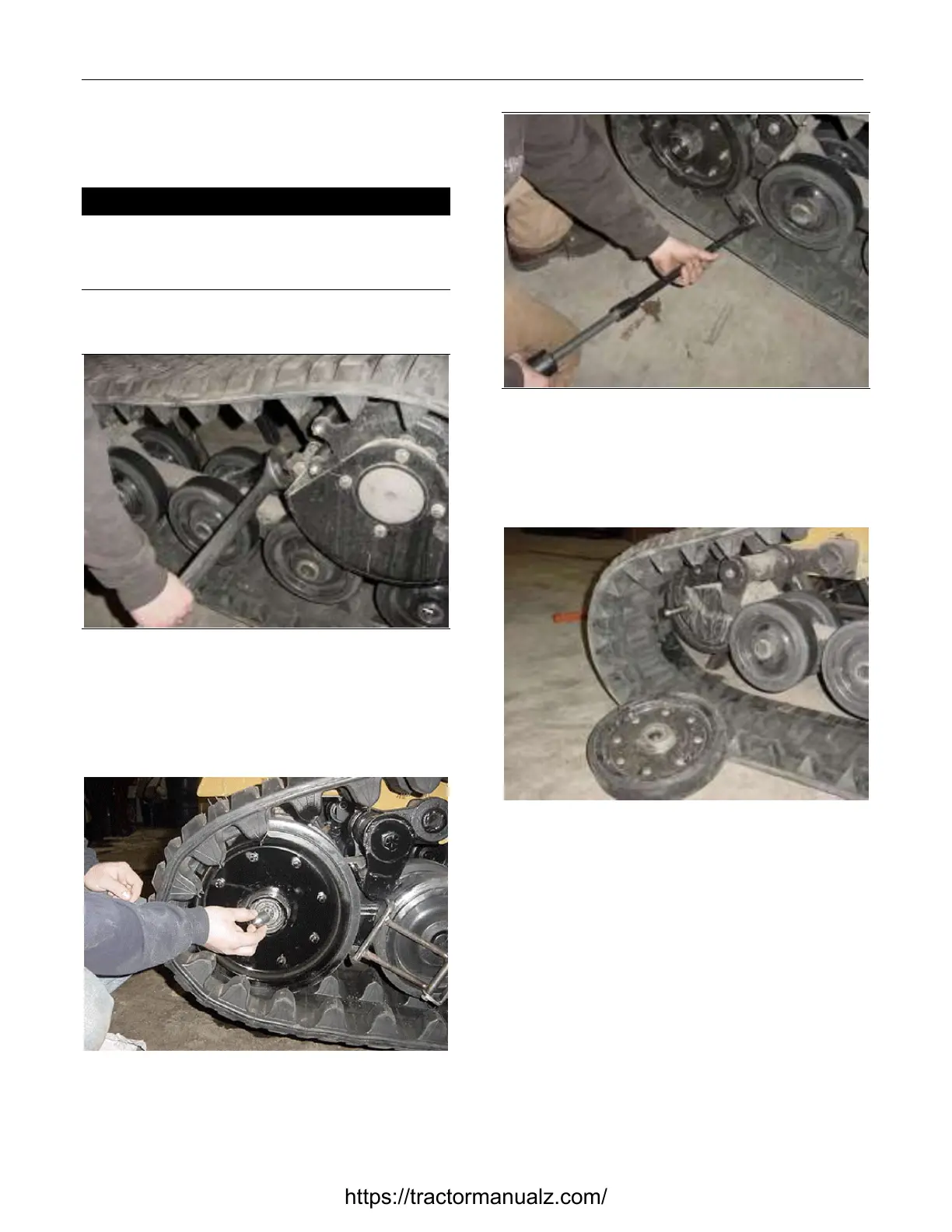

Track Removal
! WARNING !
To remove the tracks, the machine must be jacked up and
placed on jack stands sturdy enough to support the weight
of the machine. The manufacturer-supplied jack stands
are recommended.
Figure 0-9 12-016
1. Loosen the track completely by loosen the track
jack with an 1 7/8” wrench.
2. Remove the front wheel’s wheel cap and install
the thread / seal protector (bullet shaped piece)
over the end of the shaft.
Figure 12-9A
Figure 0-10 12-011
3. Using the wheel extractor loosen the front wheel
and remove the outside roller bearing. The
outside guide lugs will prevent you from
removing the front 14” outside wheel without the
track coming off at the same time.
Figure 0-11 12-012
4. Remove the 14” wheel. The front 14” outside
wheel and the front of the track will come off
together.
