Rubber Track Loader
11. Undercarriage Disassembly and Assembly
11-5
Figure 0-12 12-013

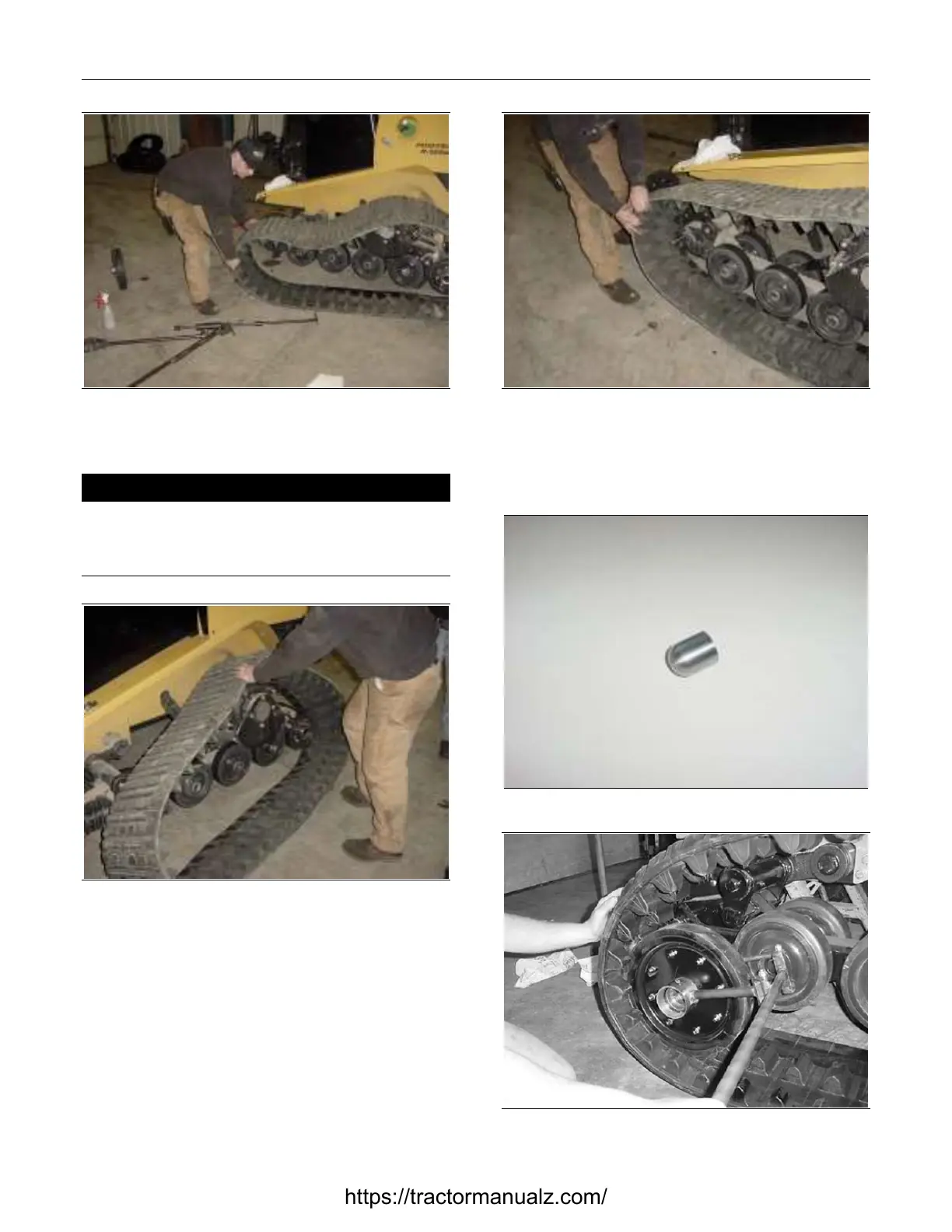

Track Installation
! WARNING !
To install the tracks, the machine must be jacked up and
placed on jack stands sturdy enough to support the weight
of the machine. The manufacturer-supplied jack stands
are recommended.
Figure 0-13 12-047
1. Place the track around the back wheels and on
top of the drive sprocket. Make sure the track
drive lugs mesh with the sprocket.
Figure 0-14 12-048
2. Using soap, lubricate the front inside wheel. Pull
the track into the position shown in figure 12-15.
3. Install the bullet shaped thread / seal protector
over the front wheel shaft.
Figure 12-14A
Figure 0-15 12-049
